14.8V 12Ah Lithium-Ion Battery Pack for Solar LED Light and Storage System

14.8V 12Ah Lithium-Ion Battery Pack for Solar LED Light and Storage System

US$ 18.10 ~ 14.70

Min.Order: 50

Product origin: Shenzhen, Guangdong, China

Category: Electrical Equipment & Supplies

Product Name: Electrical Equipment & Supplies

Availability:In Stock

Product Review : 0 Reviews

Infringement complaint:

* Please contact the supplier via whatsapp first before placing an order

Premium Lithium Iron Phosphate Battery 48V 110Ah for Golf Cart Replacement

US$ 1 ~ 10

48V 51.2V 100AH-200AH Wall Mounted LiFePO4 Lithium Battery for Solar Power System

US$ 348.00 ~ 1288.00

Premium Quality AA Alkaline Batteries Mercury Free with IEC SGS ISO9001

US$ 0.0999 ~ 0.0899

High Quality 12V 100Ah Deep Cycle Battery for Solar/Off-Grid Applications

US$ 165.00 ~ 155.00

Wholesale Custom LiFePO4 Battery Pack HYLV-100-B with 6000+ Cycle Life for Industrial Use

US$ 600.00 ~ 670.00

Model Number : YLY26650 4S3P
Nominal Voltage : 14.8V
Nominal Capacity : 12Ah (177.6Wh)
Cell Configuration : 4S3P (26650 cells)
Max Charge Voltage : 16.8V±0.05V
Discharge Cut-off : 11.0V±0.05V
Max Continuous Current : 6A
Dimensions : 80×110×70mm
Weight : Approx. 1.1kg
Operating Temperature : Charge: 0-45°C, Discharge: -20-60°C

Protection Features : Overcharge/Overdischarge/Short circuit
Certifications : CE/FCC/ROHS/UN38.3/MSDS
Applications : Solar systems, Golf carts, Marine equipment, Energy storage

Our 14.8V 12Ah lithium-ion battery pack is designed for reliable performance in various applications including solar LED lighting systems, energy storage, golf carts and marine equipment. The battery features a compact design with dimensions of 80*110*70mm and weighs approximately 1.1kg.

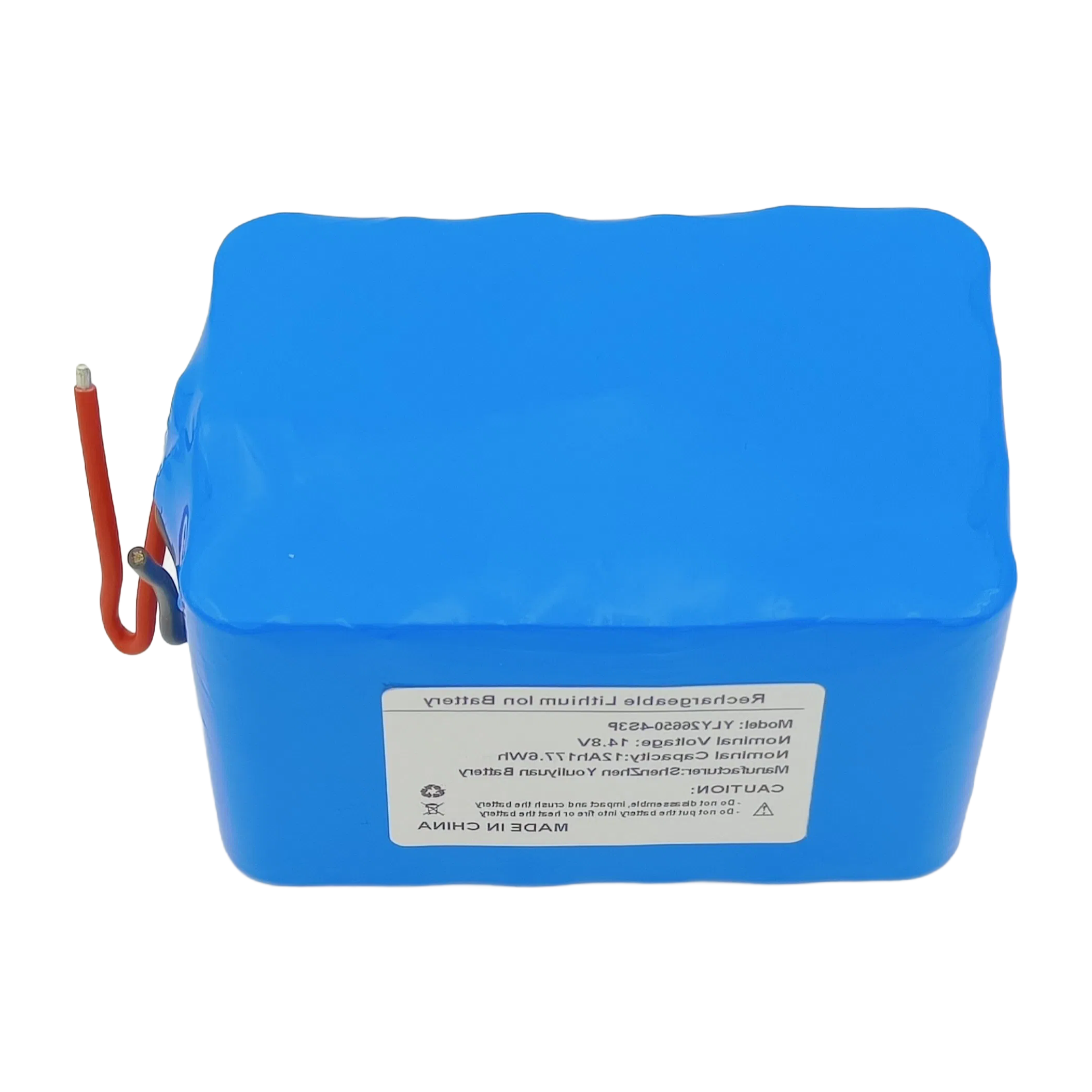

14.8V lithium battery pack

The battery pack utilizes high-quality 26650 cells in a 4S3P configuration, delivering stable power output with a nominal capacity of 12Ah (11.5Ah minimum). It comes with built-in Battery Management System (BMS) that provides overcharge protection (16.8V±0.05V) and overdischarge protection (11.0V±0.05V).

Lithium battery internal structure

This lithium battery pack supports customization of charging/discharging currents and operating temperature ranges to meet specific application requirements. The battery maintains excellent performance across a wide temperature range from -20°C to 60°C during discharge.

We offer OEM/ODM services including custom branding and packaging. All our battery packs come with standard certifications including CE, FCC, ROHS, UN38.3 and MSDS.

Battery pack with different applications
