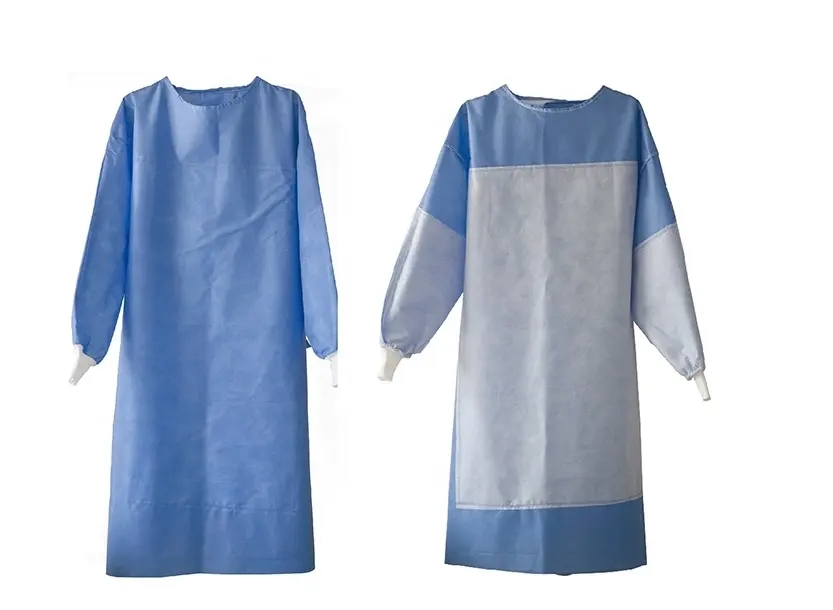

PLC Controlled Nonwoven Reinforced Gown Production Line with CE ISO Certification

Manual gown production bottlenecks are brutal when you're scaling up — we've seen shops lose days just on cuff attachment and neckline alignment, especially with reinforced gowns where the nonwoven layer shifts.

So the DH-G series tackles this with a fully integrated line that runs the body at 18-25 pieces per minute and the sleeve unit at 60-80, all synced through the PLC touch screen so you're not babysitting individual stations.

It handles 30 to 65 GSM nonwoven fabric at widths between 1000 and 1550mm, and the total power draw is about 26kW for teh body unit plus 7kW for the sleeve section — the sewing module only pulls 0.5kW, which is pretty efficient for what it does.

You're looking at roughly 5000kg for the main body frame and 2250kg for the sleeve unit, both alumnum alloy construction, so the footprint is around 16 meters by 2.1 meters — you'll need a decent floor plan.

380V 50Hz for the body line and 220V 50Hz for sewing station, and it's CE and ISO9001 certified with a 12-month warranty; we usually have stock on the standdard models but confirm lead time for custom voltge configurations.

Most buyers in this space go with the 50-65 GSM range for surgical gowns anyway, but it's not suited for heavyweight laminated fabrics above 70 GSM — the welding parameters just don't hold.
