Runs off AC220V or DC24-28V depending on what you've got wired in—we've seen these mounted in SUVs and armored trucks, the 45kg unit sits on a roof rack or a flatbed, pulling 550W across 20-6000MHz with a range that's usually 1000m to 3000m give or take environmental clutter.
Basically it hits 8 bands simultaneously through those high-gain omni antennas, so you're breaking control links, GPS, and video feeds on commercial drones without needing to guess which frequency they're using—most buyers go with this for convoy protection or fixed-site perimeter work, but it's not great for indoor use because the omni pattern bleeds signal everywhere.

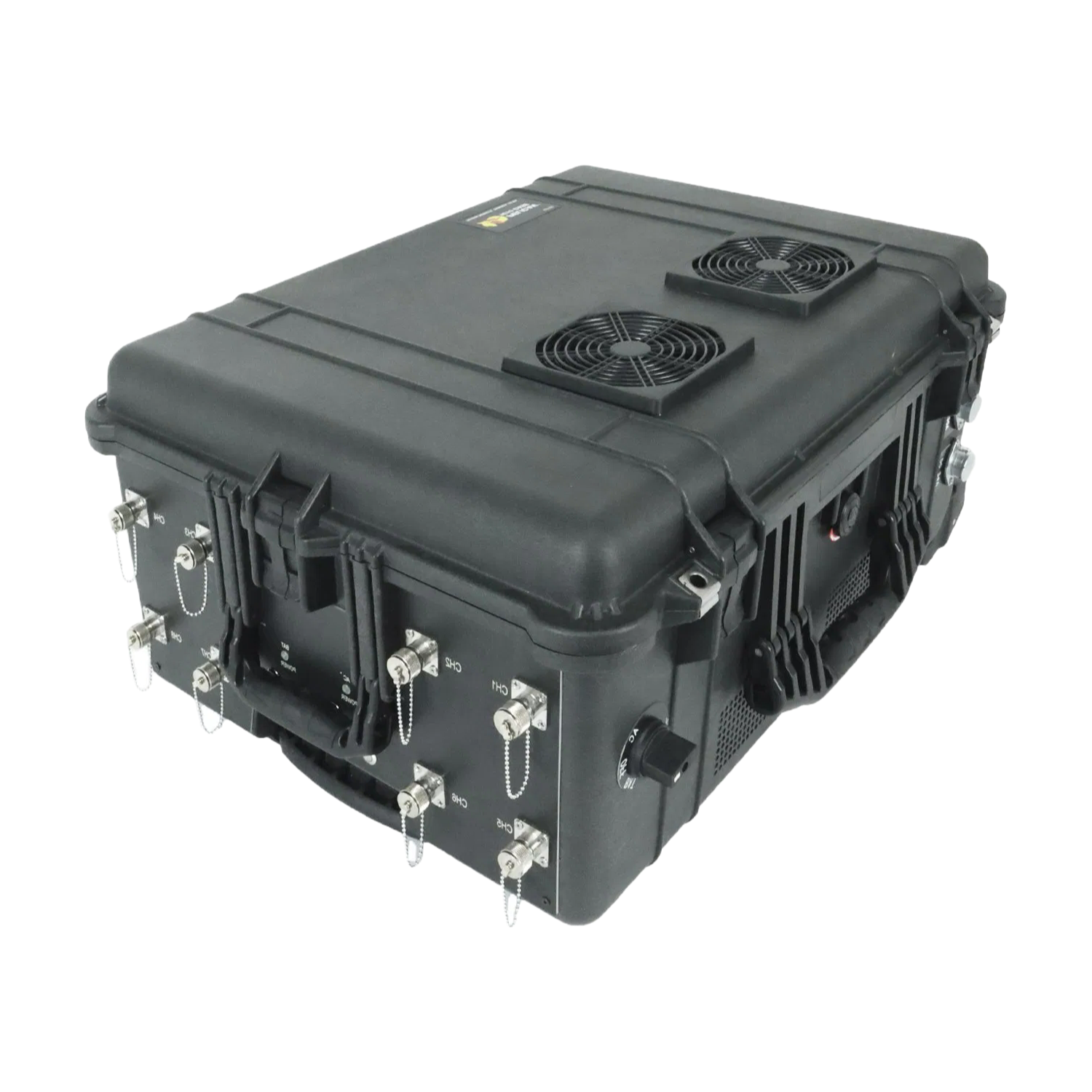

alumnum radiator has cooling fans running constantly, which means you'll hear it spool up when the unit's been on for 20 minutes or so in hot weather—operating temp is -20°C to +65°C but humidity stays at 80% max, something those who deploy in coastal areas should check before mounting.

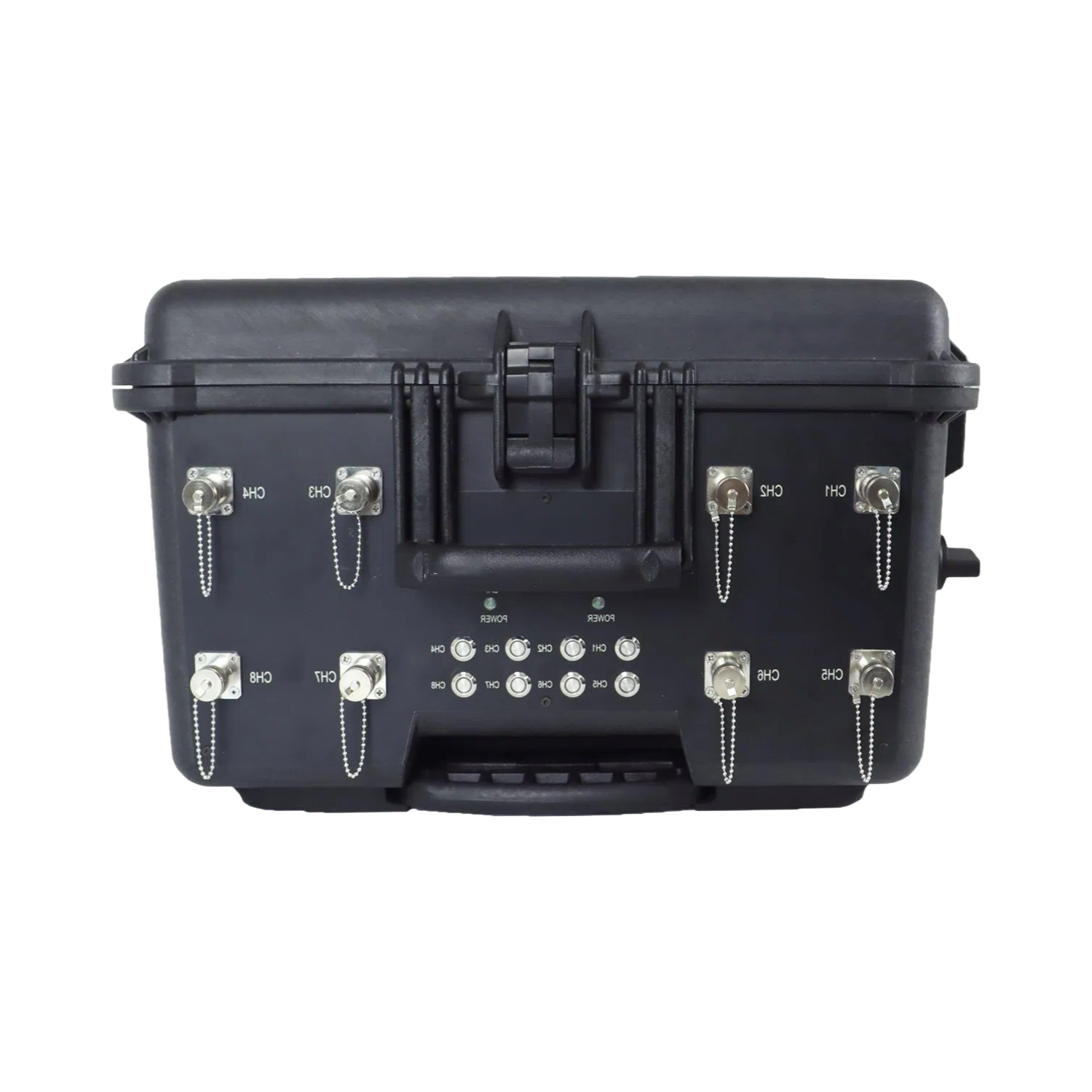

Each antenna handles one band from the 8, and we typically pair this with a separate control panel that switches bands on the fly—what it does is it sweeps teh low end to 6GHz so you can cover newer drone models that shifted to 5.8GHz and 2.4GHz simultaneously, though the 3km range is best-case line-of-sight, drops to about 1.5km if there's tree cover or buildings.
Stock we usually have on hand, but confirm lead time if you need more than 5 units (usually 2-4 weeks), MOQ is 1 unit with a COA form the ISO9001 line, shippng weight is just under 50kg so expect a pallet charge—we pack the antennas separately in a foam-lined crate to avoid damage in transit.
It can reach up to 3000 meters in open, line-of-sight environments. Real-world range depends on terrain and drone type, but 1000-3000m is the spec.
It works with DC24-28V too, so you can hook it up to a vehicle battery or external power source. Just make sure the voltage is stable within that range.
Yes, it covers 20-6000MHz, which includes 2.4GHz, 5.8GHz, GPS, and other bands used by most drones. The 8 antennas target each band separately for better effectiveness.
We typically require a MOQ of 1 unit for samples or small orders. For bulk purchases, we can discuss lower pricing and lead times.
It's ISO9001 certified, and we provide a certificate of conformity with each unit. Additional test reports or export documents can be arranged upon request.
