You’ll see these in field ops where a drone suddenly loses its link and drops from the sky—or a GPS tracker stops updating mid-route, which is basically what the end custoemr pays for when they need selective frequency denial.

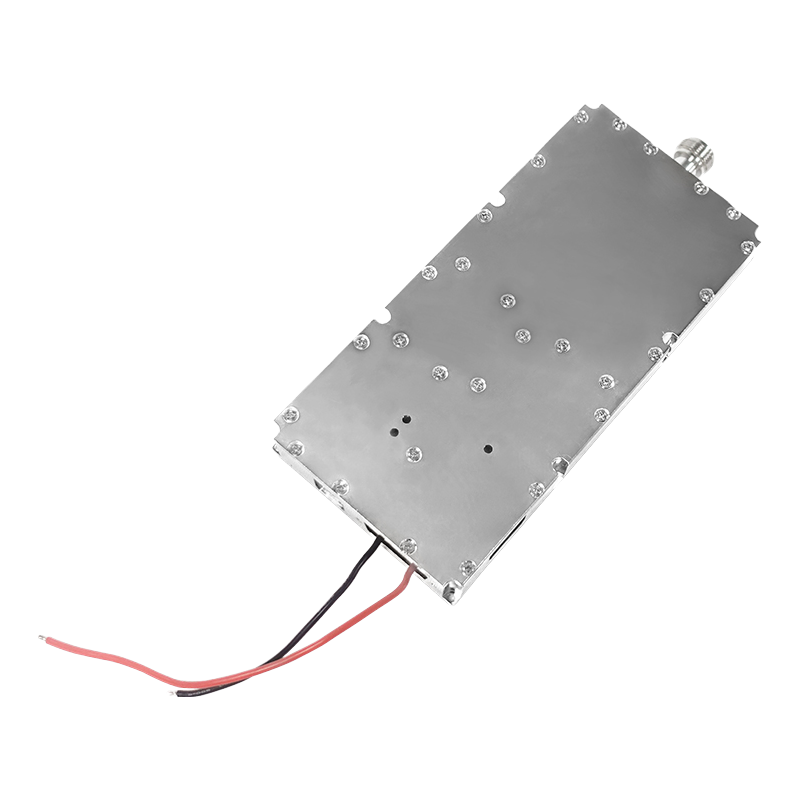

It’s a 100W power amplifier module, model TX-PA58100, with 50dB gain and a 10A draw, so you’ll want a solid 24-28V supply, though 32V works if you’ve got it—the N-type 50Ω connector is standard for this class, and whole thing sits at 189x82x21mm, about 700g, making it pretty easy to integrate into a rack or portable case.
We’ve got CE, ISO, RoHS, GS, and SGS on file, but honestly the real check is how it handles your specific band—customiezd frequency means we tune it to your MHz range, whether that’s 2.4G WiFi or GPS L1, and we’ll send a COA with the batch, though lead time can run 20 days or so depending on teh tuning.
Operating temp is -40 to +65°C, which is better than most off-the-shelf jammers for outdoor use, but don’t push it above 65°C continuously without active cooling—it’s not suited for prolonged high-duty cycles in a sealed box without airflow.
Packaging is pretty straightforward: anti-static bag, foam insert, and a cardboard box, usually 50 units or so per carton if you’re ordering wholesale—MOQ is typically 10 pieces, but our company can flex that for a trial order.
Also, one detail that catches buyers off guard is the current spike at startup—it’ll pull closer to 12A for a split second, so make sure your power supply has a bit of headroom, or you’ll get nuisance trips.
This module comes with CE, ISO, RoHS, GS, and SGS certifications, so it meets international quality and safety standards for export.
MOQ is typically 10 units for wholesale orders, but we can discuss smaller trial orders if you're just starting out.
Lead time is usually 15-20 working days after order confirmation and payment, depending on the frequency customization and current production load.
The module is designed to work with any one of those voltages, but you'll need to specify your preferred voltage when ordering so we can tune the circuit accordingly.
Each unit comes in an anti-static bag with foam padding inside a cardboard box. Store it in a dry, cool place within the -40 to +65°C temperature range.
