If you’re doing more than a handful of presure gauge repairs a month, you’ve probably already wrestled with a stuck needle or two — we sell these by the case to shops that see twenty units a week, and the pricing breaks down pretty cleanly: about $18 each for a sample order, around $14 in mid-volume of 50 units or so, and our company can get under $11 when you’re ordering 200-plus, which is where the real savings kick in for most buyers.

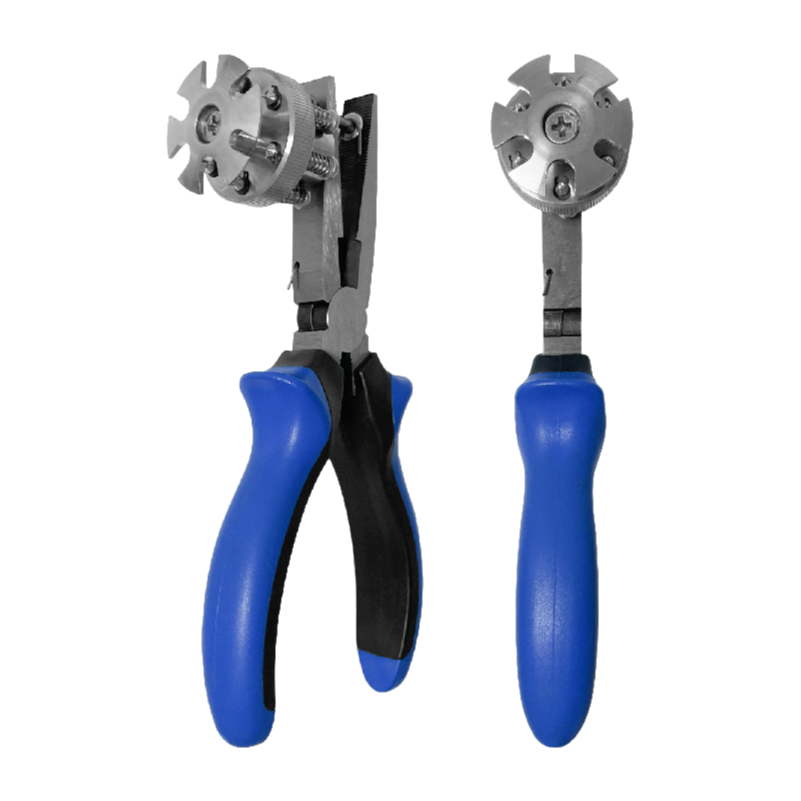

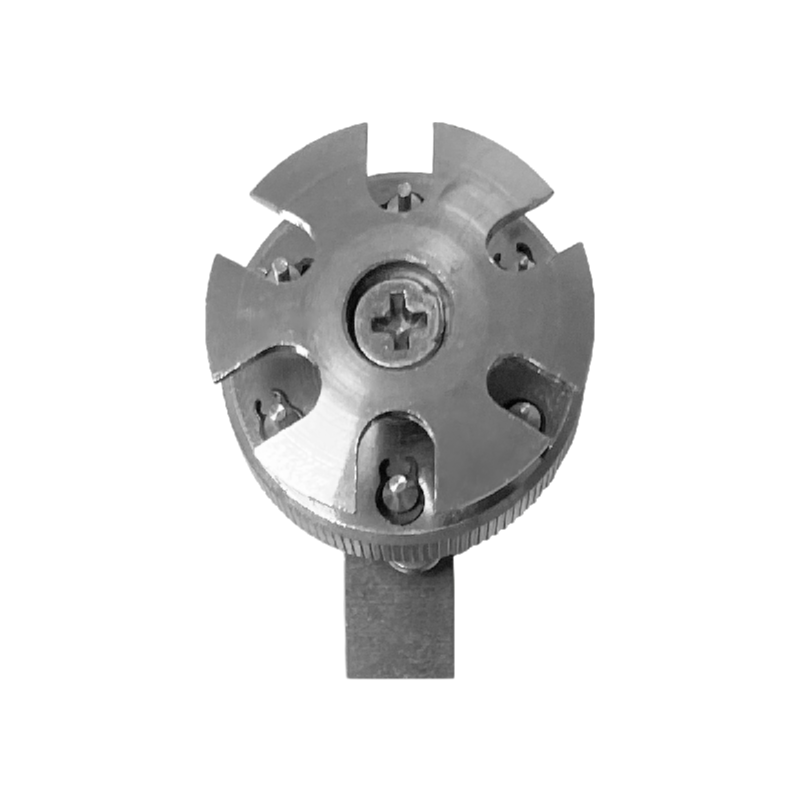

The rotating turntable lets you click through six pin sizes — φ0.8, φ0.8 (yes, two of the same), φ1.0, φ1.2, φ1.3, and φ1.5mm — without fumbling for individual bits, and the stainless steel body holds up fine against the kind of corrosion you see in humid gauge rooms, though the rubber coating on the handles is what actually keeps your grip steady when your hands are greasy or sweaty.

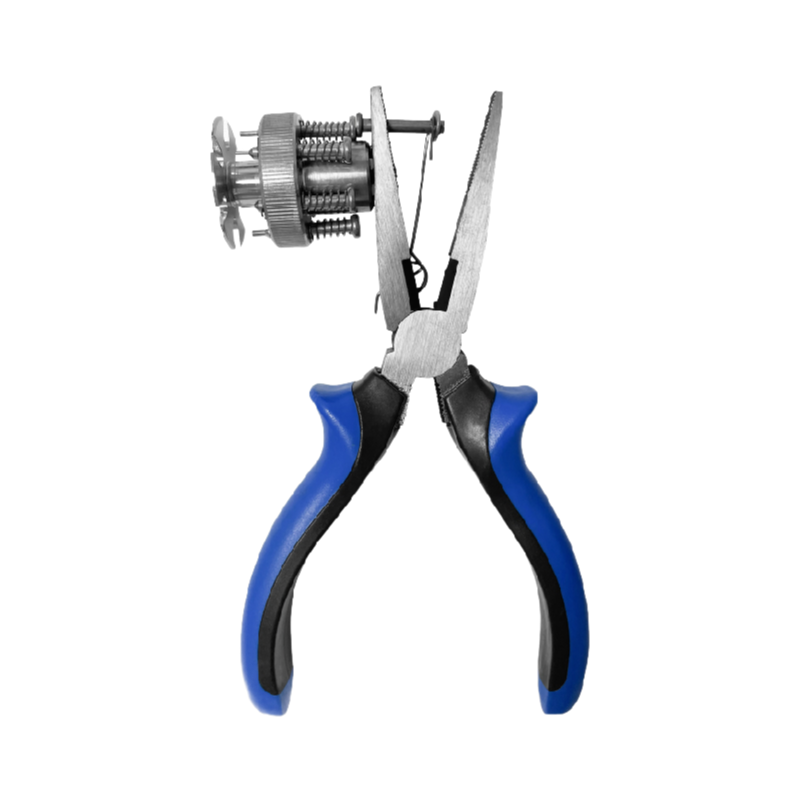

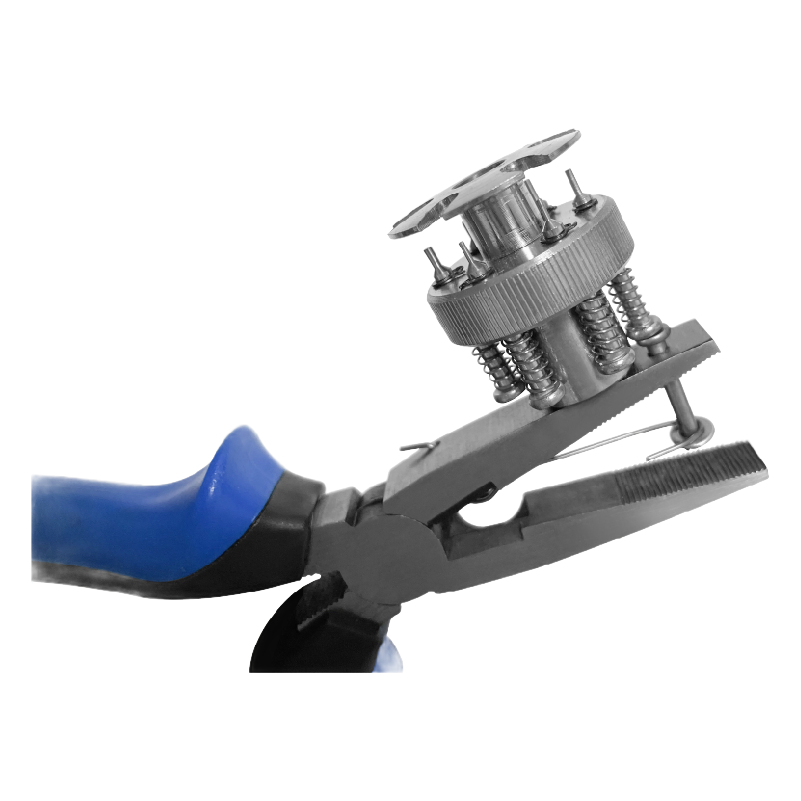

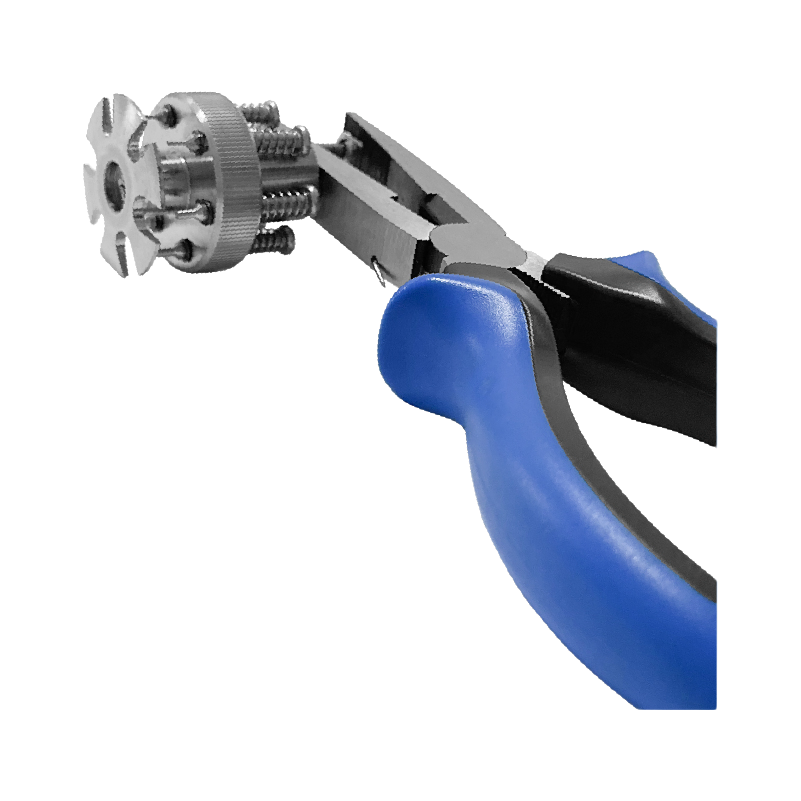

It’s basically a clamp-type tool, so you align the notch over the needle, rotate the turntable to match the pin diameter, and squeeze — the pins push evenly against the needle hub while the notch gives the stem clearance, and that’s pretty much all there is to it, no prying or tapping required, which is what makes it faster than using a standerd puller on those really stubborn gauges.

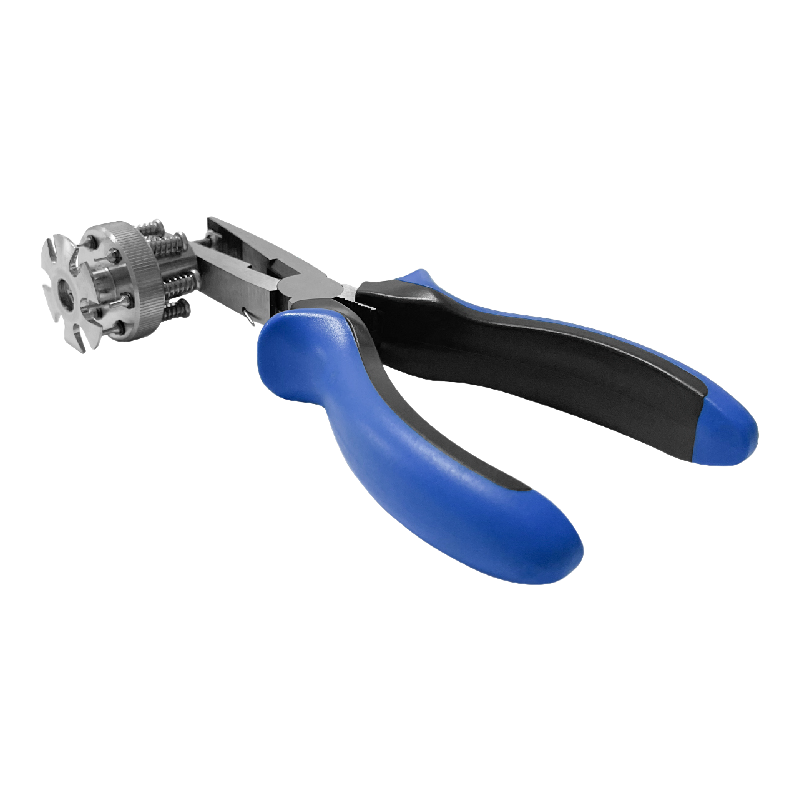

What you get in the box is the pliers themselves, obviously, and they come at 100×30×160mm with a net weight of 0.3kg — light enough to toss in a tool bag but solid enough that you won’t feel like you’re going to snap the pins on a tight fit, and we usually have stock on these, but check lead time if you need more than 300 units because we batch-order the handles from a different supplier.
One thing that catches people off guard is that this tool isn’t really suited for pulling needles off electronic or very small diaphragm gauges — the pins are machined to a tight tolerance, about ±0.05mm on each diameter, but the overall design works best on standard 1-1/2 to 4-inch pressure gauges where the needle hub has some meat to it, and I’ve had a buyer complain it didn’t fit their miniature 1-inch test gauge.
Also, the surfce finish is fine polished with a plating layer that resists rust pretty well — we’ve had some of these on shelf for three years or so with no pitting — but if you’re working in a saltwater enviornment or with chemical gauges, just wipe them down after use; the real durability comes from the stainlss steel core, not the plating.
The pliers come with six pin diameters: φ0.8mm (two pins), φ1.0mm, φ1.2mm, φ1.3mm, and φ1.5mm. You rotate the turntable to pick the right one for your gauge needle, so it should cover most standard pressure gauge sizes.
Yes, the stainless steel is polished and plated for corrosion resistance, and the rubber-coated handles give a solid anti-slip grip. It's built to handle daily maintenance without rusting or wearing out quickly.
We usually don't have a strict MOQ for this model—single units are fine for small shops. Lead time is around 3-7 days depending on stock, but we can confirm when you place the order.
We can provide a material certificate for the 304 stainless steel and a surface finish test report on request. Just let us know what documentation you need before shipping.
Keep them in a dry, clean area—ideally in a tool box or pouch to avoid moisture. The rubber handles are fine in normal shop conditions, but avoid prolonged exposure to chemicals that could degrade the coating.
