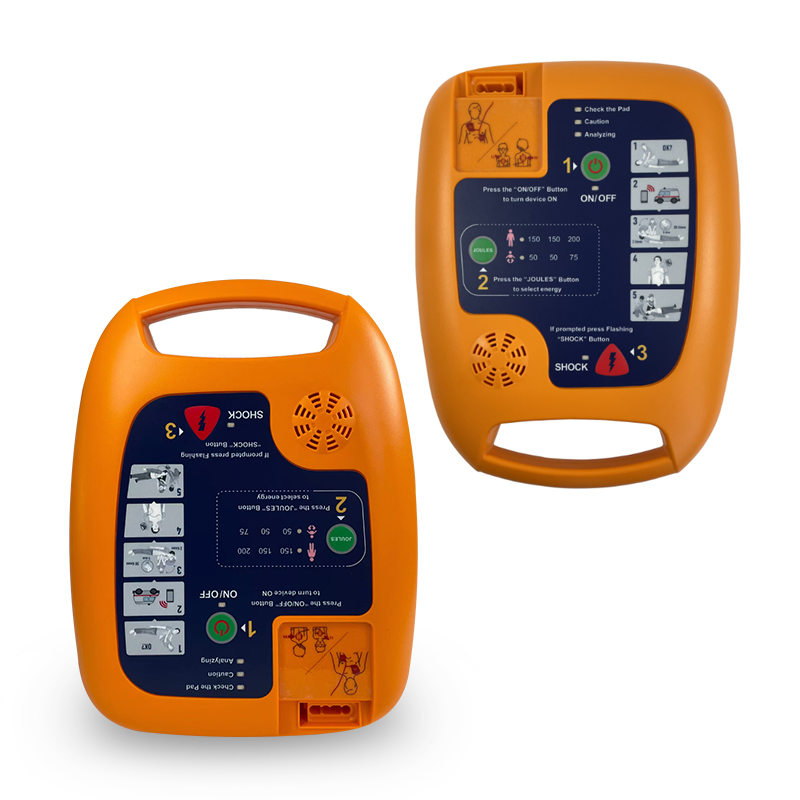

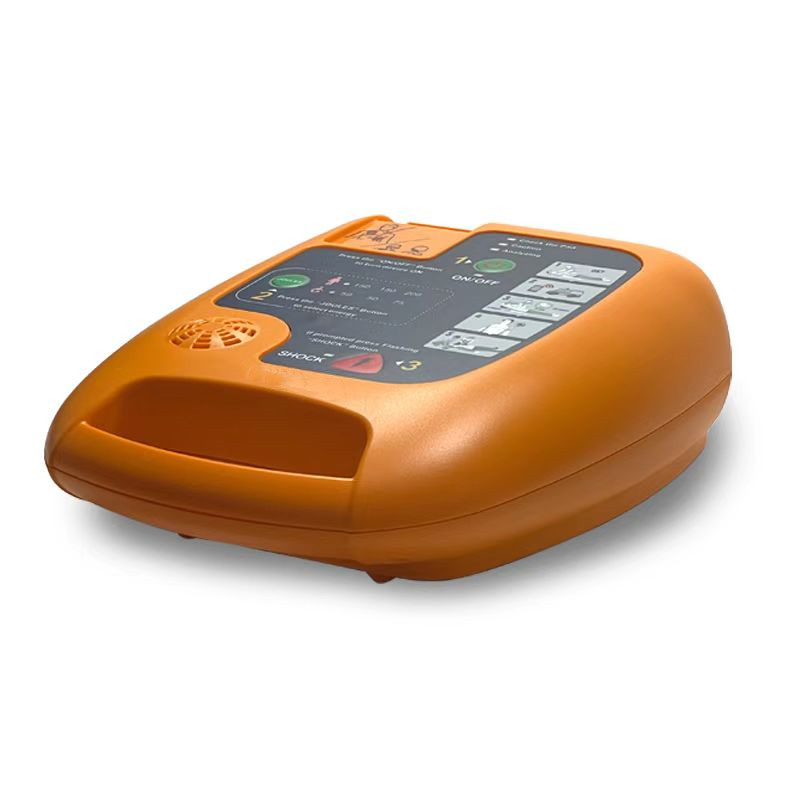

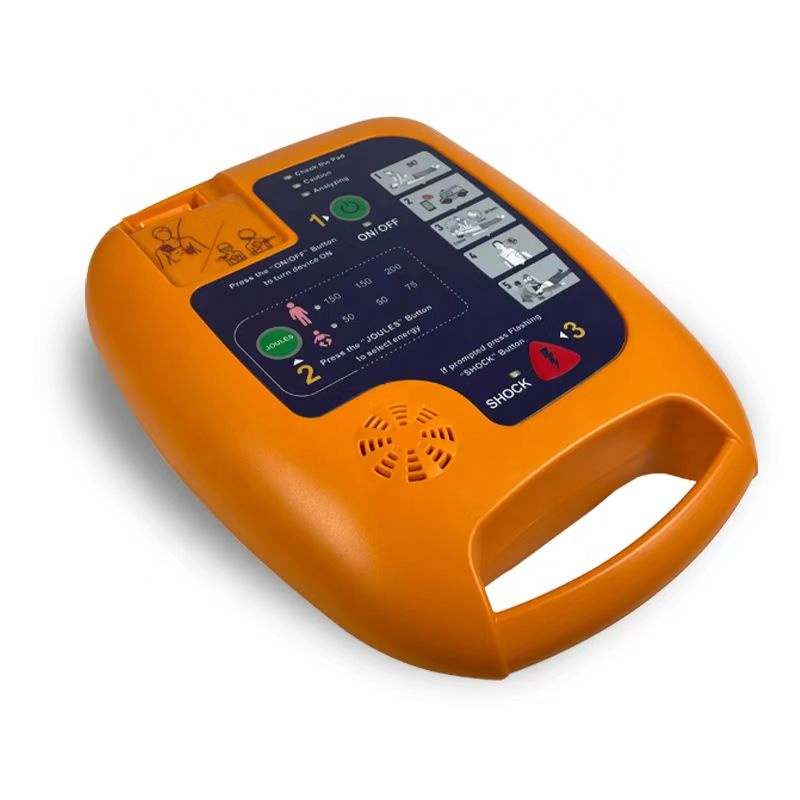

The JR-Defi5S Plus automatic external defibrillator is a professional-grade medical device designed for emergency cardiac care situations. This portable AED unit combines advanced technology with user-friendly operation, making it suitable for various healthcare environments.
With compact dimensions of 390mm×320mm×210mm and weighing only 3.5kg, the JR-Defi5S Plus offers excellent portability. The device delivers a maximum energy output of 200 Joule, with programmable energy sequences for both adult and pediatric patients. The quick charge time of less than 6 seconds to 150J and under 8 seconds to 200J ensures rapid response in critical situations.
The defibrillator features comprehensive voice prompts and LED visual indicators to guide users through the resuscitation process. With the capacity to store 1500 ECG events, medical professionals can review critical patient data post-event. The 12V, 2800mAh power supply ensures reliable operation when needed most.
Advanced data communication capabilities allow for infrared data transfer to supporting software. The included AED storage software enables reading and setting of ECG waves, language configuration, and management of stored data. The case management system organizes data files into case records stored in an ACCESS database for efficient record-keeping.
The memory playback function displays detailed status information including event type, time, description, and waveforms. Event types cover the complete AED operation cycle from power-on through analysis, charging, discharging, and CPR events. The system provides clear indicators such as 'OHM' for detected impedance and 'need to shock'/'no need to shock' analysis results.
ECG waveform display can be adjusted with gain settings of 5mm/mv, 10mm/mv, or 20mm/mv and speed settings of 12.5mm/s, 25mm/s, or 50mm/s. The print function allows for preview and printing of selected playback pages containing essential information.
The JR-Defi5S Plus offers multiple user-configurable options including 2 language choices and 5 levels of sound volume adjustment. The unit features dedicated adult/child mode buttons and comes standard with infrared data transmission capability. The comprehensive self-test system performs daily, weekly, and monthly checks to ensure readiness.
Designed for practical use in emergency situations, the AED can be operated while remaining in its protective bag, and includes an extra pocket for first aid products. The IPX55 rating provides protection against water and dust ingress, making it suitable for various environments.
