Basically pulls oxygen right out of room air using PSA — zeolite beds adsorb nitrogen under pressure, then vent it during regeneration, leaving you with 93%±3% O₂ at the outlet, which is pretty much medical-grade without needing cylinders.
We've seen these used in clinics for post-op recovery and at home for COPD patients who need steady supplemental oxygen; the adjustable 0.5-5 L/min flow means you can dial it in for low-flow nasal cannula or crank it up for a non-rebreather mask, though it's not suited for high-flow CPAP or ventilator circuits.

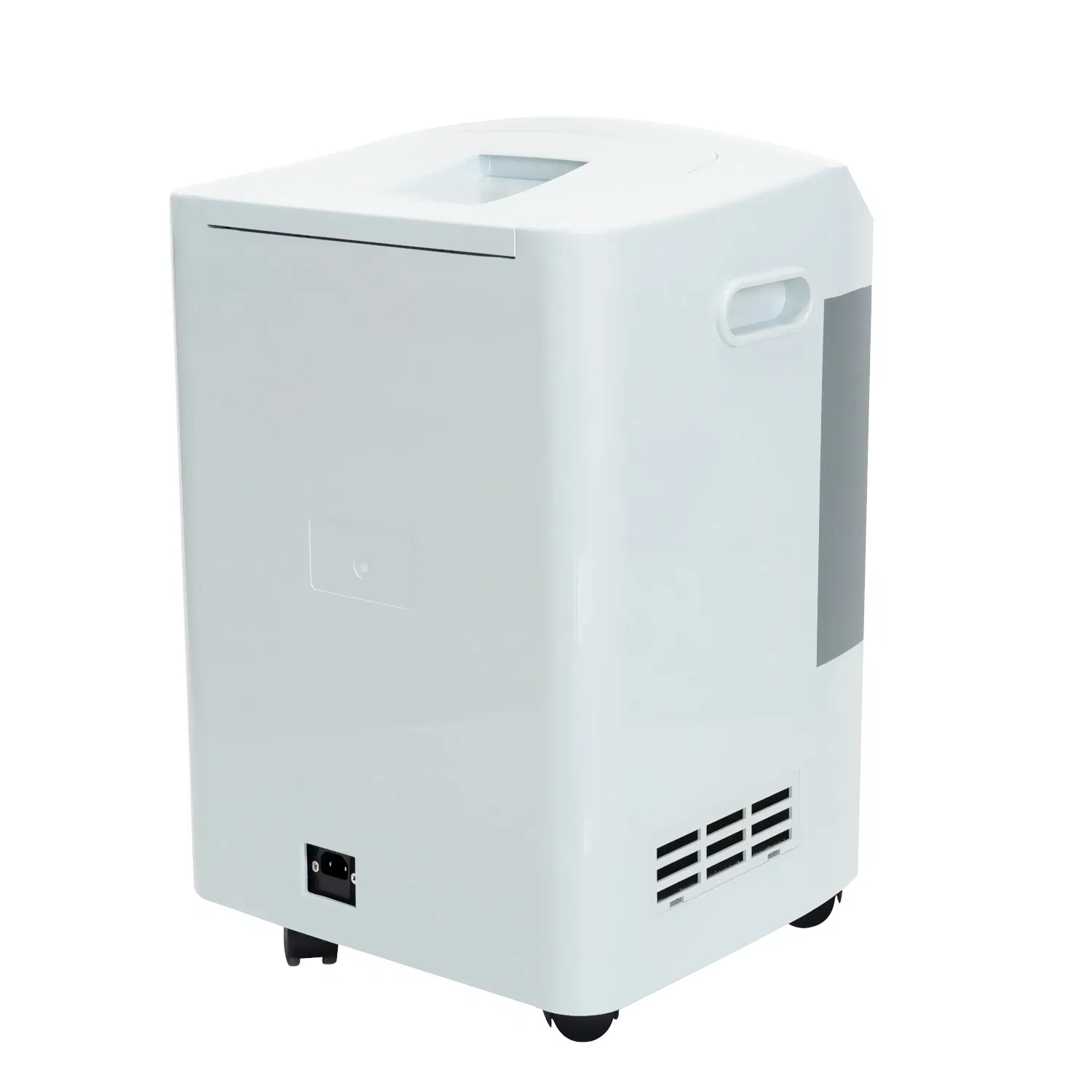

It runs on 110V, 220V, or 230V (just confirm your voltage at order) and draws ≤550W — the noise level stays under 50dB, so it's quieter than most refrigerators, and the outlet presure sits at 0.04-0.07MPa (6-10 PSI), which is typical for most home concentrators. Dimensoins are 365×375×600mm, about 26kg, so it's not portable but can be wheeled between rooms.

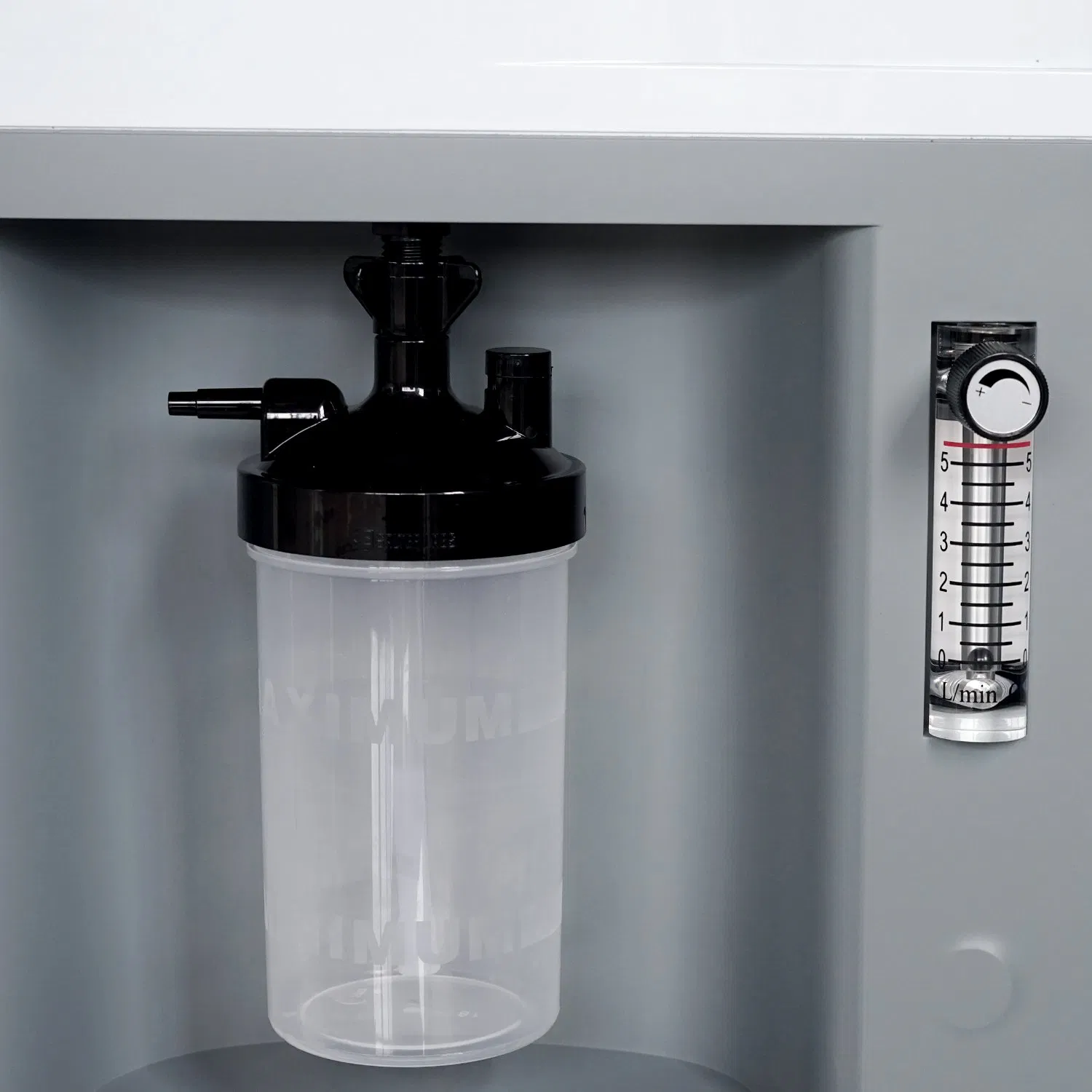

The LCD shows working time, accumulated hours, and system status — what it does is flag alarms for power failure, pressure drops, or low oxygen concentration, which is actually nice because you don't have to babysit the thing. One detail you might not think about: the humidifier bottle has a 6PSI pre-set relief valve, so if the line ever kinks, it vents rather than blowing a seal.
5, we offer customization on bulk orders — you can get a nebulizer attachment or a pulse oximeter bundled, or have the casing color changed for branding. Warranty runs 15 months, and we carry CE, ISO13485, and RoHS certs, so compliance isn't a headache. Lead time is usually 20 days or so for standard specs, but custom builds might add a week.
Most buyers go with teh 5L model for its flexibility, but if you only need 2-3 L/min continuous, the smaller unit is lighter and cheaper — anyway, we stock both and can send COAs form HPLC analysis on each batch (typically 99.5%+ purity on the output, though the spec allows 93%±3%).
For bulk orders with customization, we typically require an MOQ of 50 units. If you need less, we can discuss standard packaging options.
Yes, the JAY-5 is certified with CE, ISO13485, and RoHS. We can share the certificates with you upon request.
The standard outlet pressure is fixed at 0.04-0.07MPa. For custom pressure ranges, we can discuss engineering adjustments for larger bulk orders.
Usually 15-25 working days for a standard bulk order. Customization or accessories like the nebulizer might add a few extra days.
Yes, it has a power failure alarm that sounds immediately if the unit loses power. The LCD also shows a warning, so you know to check the device.
