The TS13 Multi Parameter Patient Monitor is a professional hospital medical equipment designed for accurate patient monitoring, offering factory supply, wholesale, and customizable solutions to meet diverse clinical needs. Featuring a 12.1" color TFT display with a high resolution of 800×600 dpi, it provides clear and detailed visualizations of vital signs and waveforms.
Equipped with a separated parameter board (ECG, NIBP, SpO2 board) and a full touch - screen interface (standard configuration includes a navigation knob), the monitor enables intuitive real - time operation by clicking on specific parameters or waveforms. It supports real - time S - T segment analysis and ARR analysis, as well as SpO2 Pitch Tone Variation and Drug Dose Calculation, enhancing diagnostic accuracy during patient care.
Users can select the color of parameter waveforms and characters, and choose from multiple display modes: Standard, Large font, Trend Coexis, and OxyCRG dynamic. The standby mode helps save energy when monitoring is suspended. It can display 7 - lead ECG waveforms in phase and capture dynamic waveforms, providing comprehensive cardiac monitoring.
The monitor is built with a rechargeable lithium battery (with battery volume checking) and also has AC power checking functionality. It demonstrates efficient resistance to interference from defibrillators and HF knives, ensuring stable operation in complex clinical environments. Adopting SINNOR F - 6 SpO2 technology with VS NE accuracy, it delivers reliable oxygen saturation monitoring.

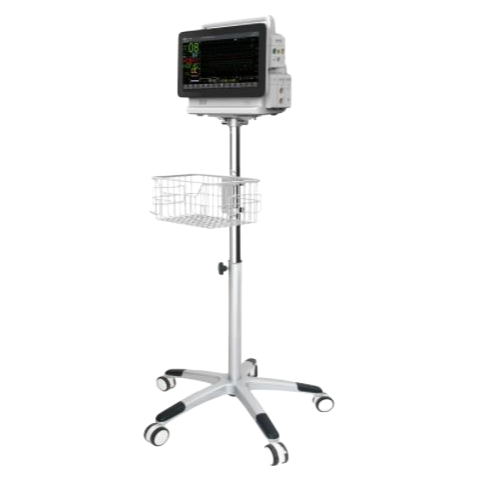

With networking capacity and a TCP/IP networking platform, the TS13 allows for abundant future upgrades. The time - delay switch - off function preserves monitor data for easy restart. It offers a complete and flexible mounting solution suitable for both transportation and in - patient monitoring scenarios.
Standard parameters include 5 - lead ECG, SpO2 (F - 5), NIBP, TEMP, RESP, PR, and HR. Optional features are extensive, such as Touch Screen, Thermal Recorder, 3/12 - lead ECG, 2/4 - IBP, 4 - TEMP, 2 - SpO2, Nell/Mas SpO2, BIS, Phaisein/Respironics Multi - gas, ICG/CO, FHR, FM, and TOCO, allowing customization based on specific hospital requirements.
Performance specifications further highlight its capabilities: the 12.1" color TFT display supports rolling and refreshing waveform display. It offers multi - display options like Large - font display, Trend coexist display, OxyCRG dynamic view display, and Bed - to - bed view display. With 9 waveforms (7 ECG, 1 SPO2, and 1 RESP) and adjustable sweep speeds (12.5mm/s, 25mm/s, 50mm/s), it caters to different monitoring needs.
Indicator lights for power/battery status, QRS beep, and alarm sounds keep clinicians informed. The rechargeable lead - acid cell (12v/4AH) supports a maximum 24 - hour charging time and 4 hours of continuous working. Trend analysis is available with parameter graphic and tabular trends (5s/piece for 8 hours; 1min/piece for 168 hours (24hour×7days); 5min/piece for 1000 hours).
Storage capabilities are robust: NIBP data can be stored for 1000 groups, alarms for 200 groups, and full disclosure waveforms for 3600s, with external storage via an SD card. The alarm system offers user - adjustable High, Medium, and Low limits (3 - level) with audible and visual alerts. Networking support includes connection to a central monitoring system and a TCP/IP netting platform.
A built - in thermal array recorder with 2 - channel Plethysmogram caveform supports multiple record modes (manual, on alarm, time - defined) with a recording width of 50mm, printing speed of 50mm/s, and various recording types (Frozen waveform record, NIBP recall record, Trend table record, Alarm record, Fixed - time record), facilitating comprehensive data documentation.

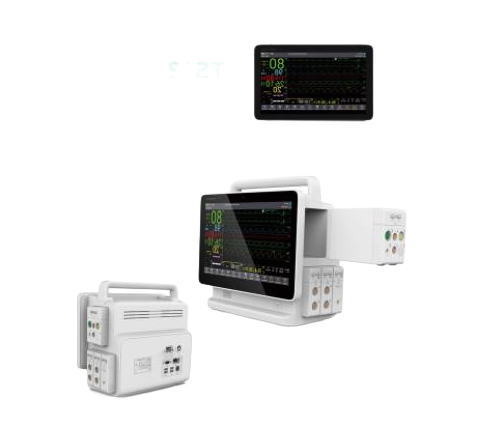

Here are some images of the TS13 Multi Parameter Patient Monitor:
