50kW Digital X-ray Medical Imaging System with Flat Panel Detector for Diagnostic Radiology

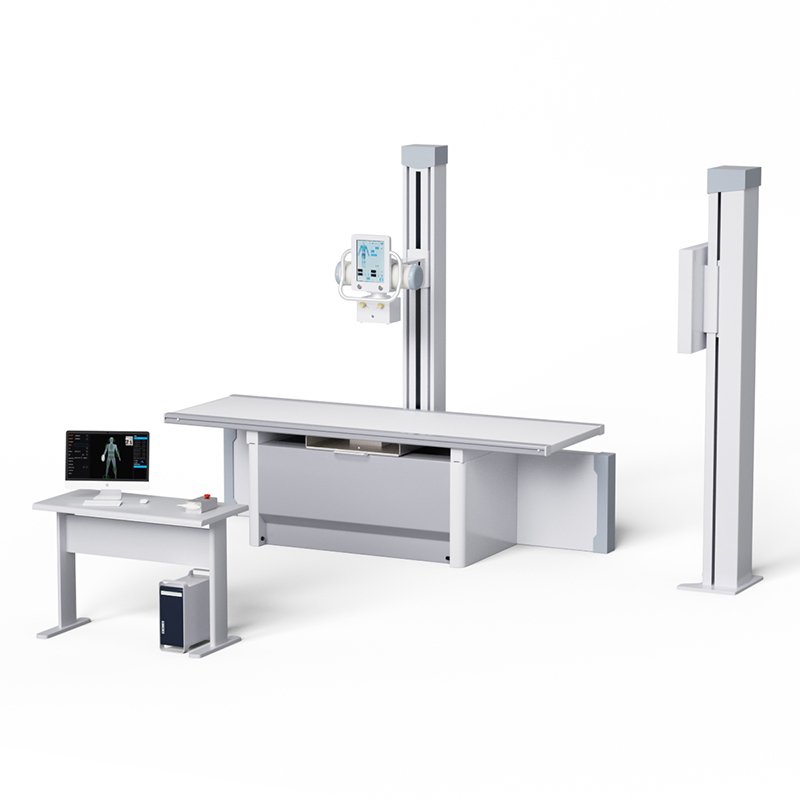

The 50kW Digital X-ray Medical Imaging System represents the latest advancement in diagnostic radiology technology. This comprehensive system combines high-power x-ray generation with cutting-edge digital imaging capabilities for superior diagnostic results.

The high-frequency generator delivers exceptional performance with a nominal electric power of 50kW. The system operates within a tube voltage range of 40kV to 150kV and tube current from 10mA to 630mA, providing flexibility for various imaging requirements. Exposure time can be precisely controlled from 2ms to 10s, with mAs ranging from 0.1mAs to 630mAs.

At the heart of the system is the advanced x-ray tube featuring dual focal spots (0.6mm small focus and 1.2mm big focus). With a maximum anode input power of 50kW and heat capacity of 150kHU, this tube ensures reliable performance for extended clinical use. The 12° target angle and 2800rpm anode rotation speed contribute to excellent image quality.

The system incorporates a high-resolution flat panel detector with GOS & Csl technology. The 35×43cm (14×17 inch) detector offers exceptional image quality with 140μm pixel size and 2560×3072 pixel matrix. The 16-bit A/D conversion ensures superior dynamic range for accurate diagnostic interpretation.

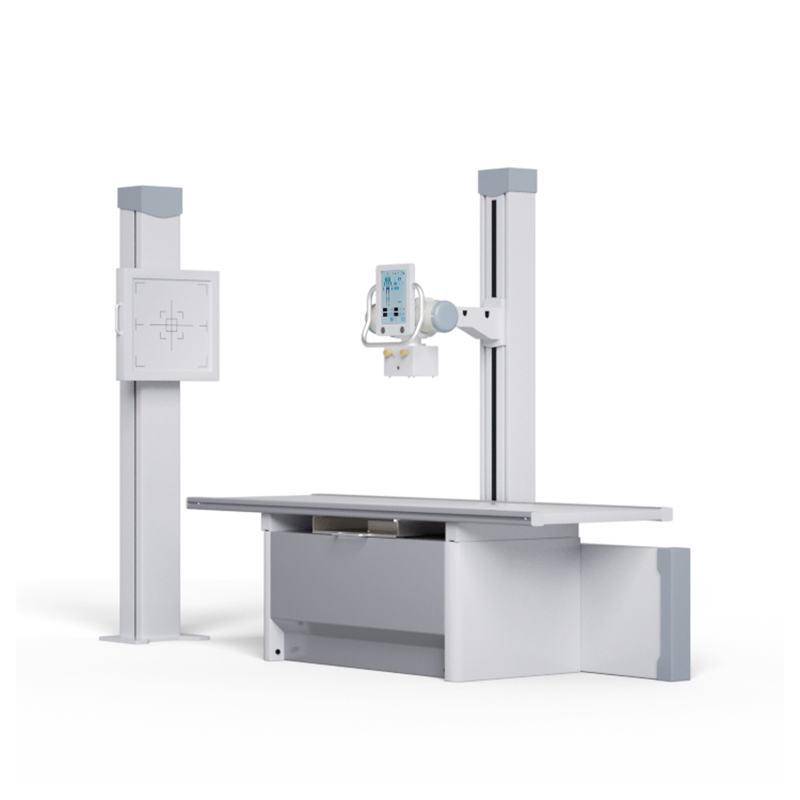

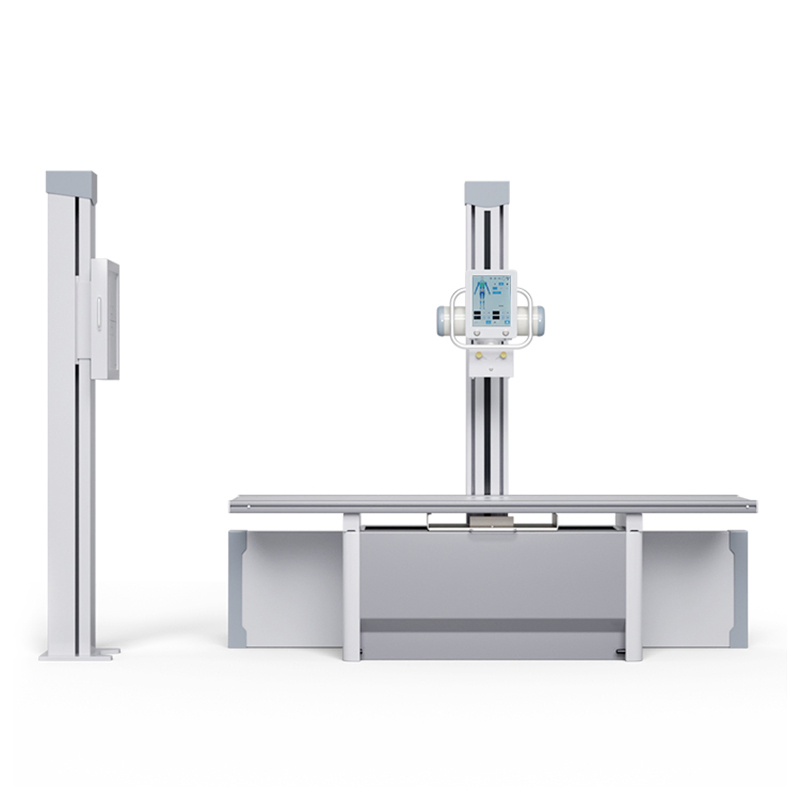

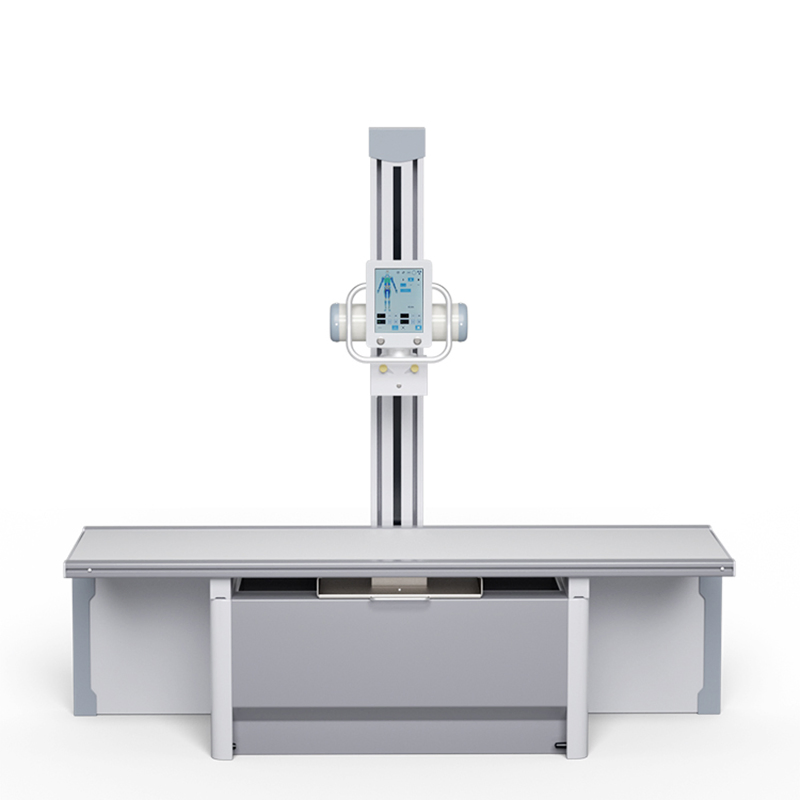

The radiography table provides versatile positioning options with horizontal movement ≥250mm and lengthways movement ≥825mm. The electromagnetic lock system offers secure positioning with ≥100N braking force. The tube column features ±180° rotation and 930mm vertical movement range, allowing flexible positioning for various examination needs.

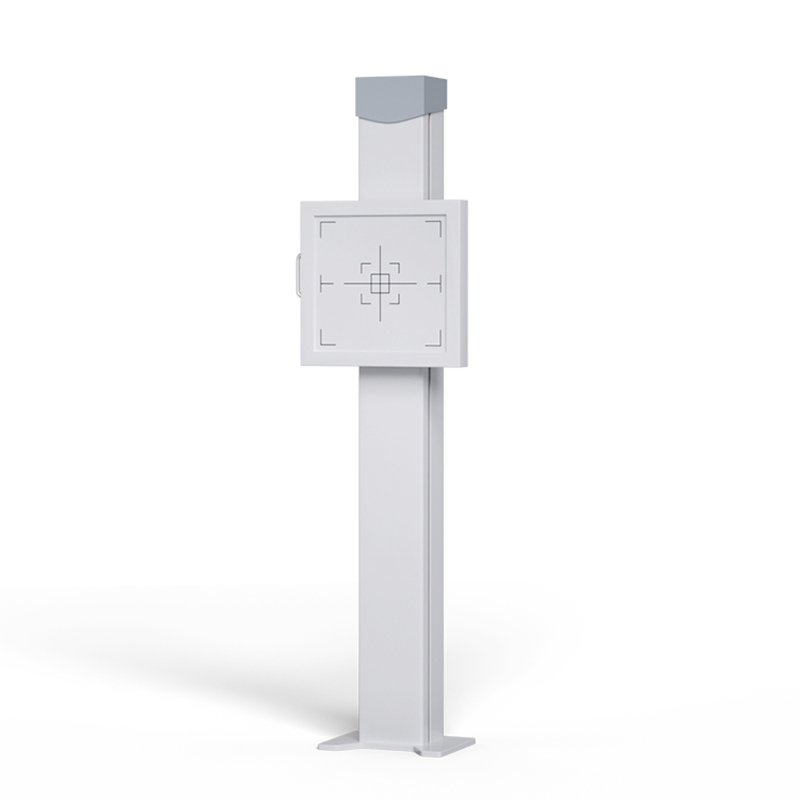

The bucky stand offers ≥1200mm vertical movement range, accommodating patients of different heights. The system includes a high-quality collimator for precise field size control, ensuring optimal image quality while minimizing patient exposure.
