Back in stock after a longer wait than usual — roughly 50 units are inbound and the standard lead time is 15-20 working days, but customs held last batch for an extra week or so, so we've adjusted the ETA to be safe.

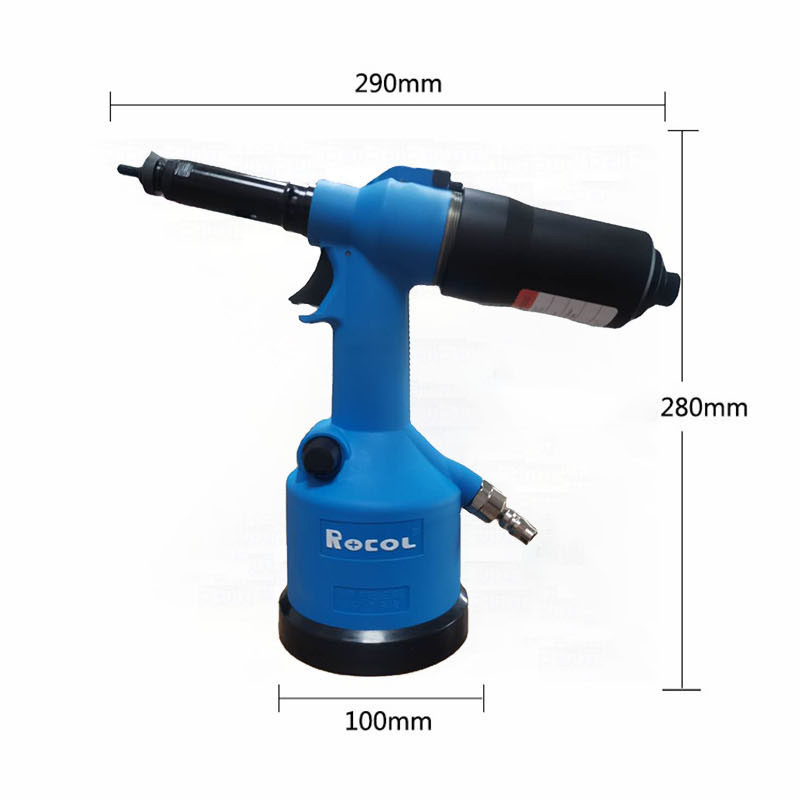

What it does is handle M3 through M12 rivet nuts pneumatically, pulling at 19.1kN of force, and the max stroke is 7mm which is fine for most sheet metal or chassis work — the quick-change nosepiece (you'll swap it between three sizes) actually saves time on mixed runs, and it runs on 5-7 bar air at about 70L/min
M10 and M12 steel rivet nuts are where you'll feel the pressure drop if your compressor's small, so keep that in mind — for aluminum or thin-walled assemblies the 2.47kg weight and the 3500 rpm motor speed mean you can hold a steady hand for long sessions, and noise stays under 75 dB.
These don't really suit one-off repairs or thin-gauge aluminun below 1mm — the pull is just too aggressive and you'll deform the materail — but for production lines or maintenance shops cycling through carbon steel and stainless nuts it's been reliable, and vibration is only 2.0m/S² so your hands won't go numb.
Package dimensions are 37x18x42 cm, gross weight 5.5kg, and we usually have the M3-M12 mandrel sets in stock but (confirm when you order) because the RL-5312 series sometimes ships with a mixed nosepiece kit instead of separate pieces — anyway, the CE cert covers most industiral safety requirement, and teh 12-month warranty is standerd for pneumatic tools at this price.
We typically require a MOQ of 10 units for this pneumatic rivet nut gun, but we can discuss smaller trial orders if you're just starting out.
Yes, the RL-5312 is CE certified, and we can provide the certificate copy upon request. Just let us know after you place the order.
It works with both carbon steel and stainless steel rivet nuts across the M3 to M12 range, thanks to the 19.1KN stretching force.
The tool is packaged in a sturdy box with dimensions 37×18×42 cm, and gross weight is 5.5kg. It includes the riveter, quick change nosepiece set, and basic accessories.
Lead time is usually 7-15 working days for stock orders, depending on quantity. We ship from China, and we'll confirm exact timing after you place the order.
