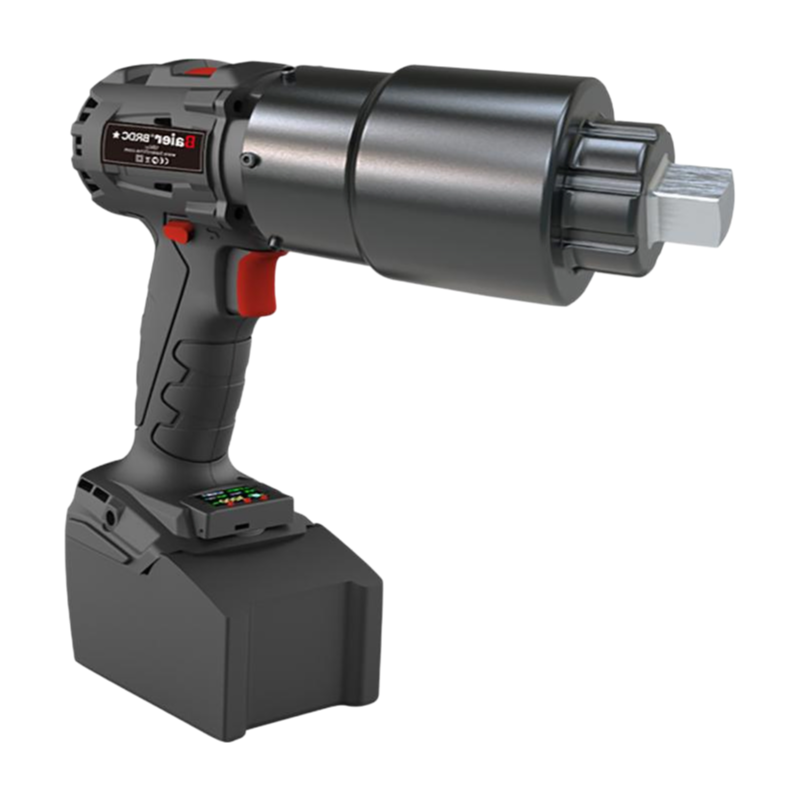

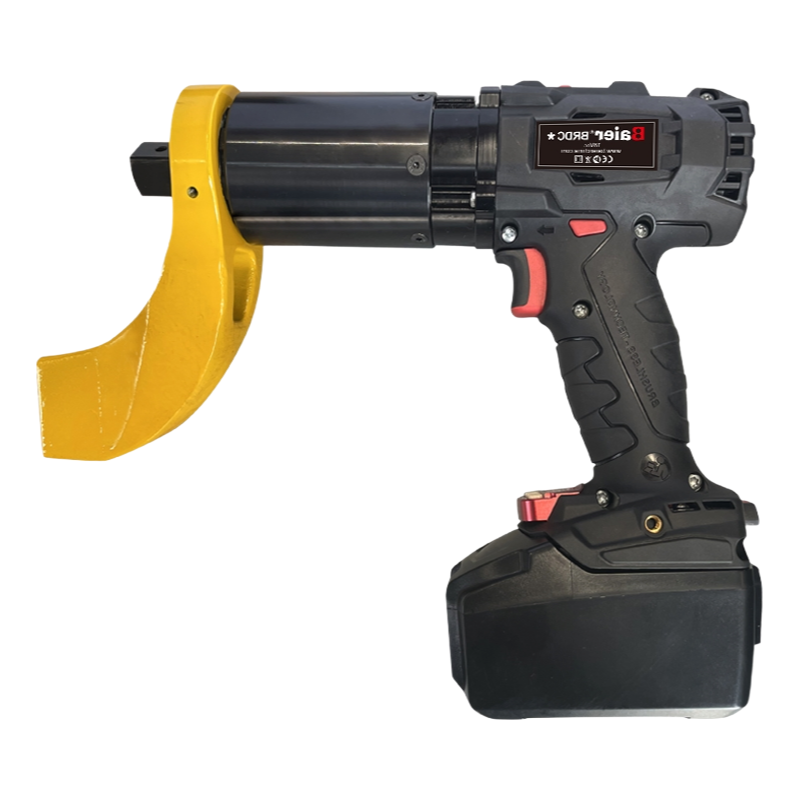

We're shipping these out with reaction arm already attached, so it's basically ready to go for tightening or loosening bolts in the 200 to 1200 Nm range—that 5.0 kg body plus the 1.6 kg arm means you'll feel it after a full shift, but the brushless motor keeps the battery drain reasonable at 4.5 RPM under load.
The 18V lithium pack is 5.2Ah, which usually gets you through a couple hundred fastenings before it needs a charge, and the LCD screen shows torque value, job number, and bolt count for each cycle. Accuracy sits at ±5% with repeat precision of ±2%, so it's tighter than most hydraulic wrenches in this class.
One thing we've noticed is that the data storage feature logs every tightening event with time stamps and completion counts, which you can pull off via USB for your QC records. It's not suited for high-speed production lines where you need 20 bolts per minute—the 4.5 RPM will slow you down—but for heavy equipment assembly or wind tower maintenance, it's pretty much ideal.

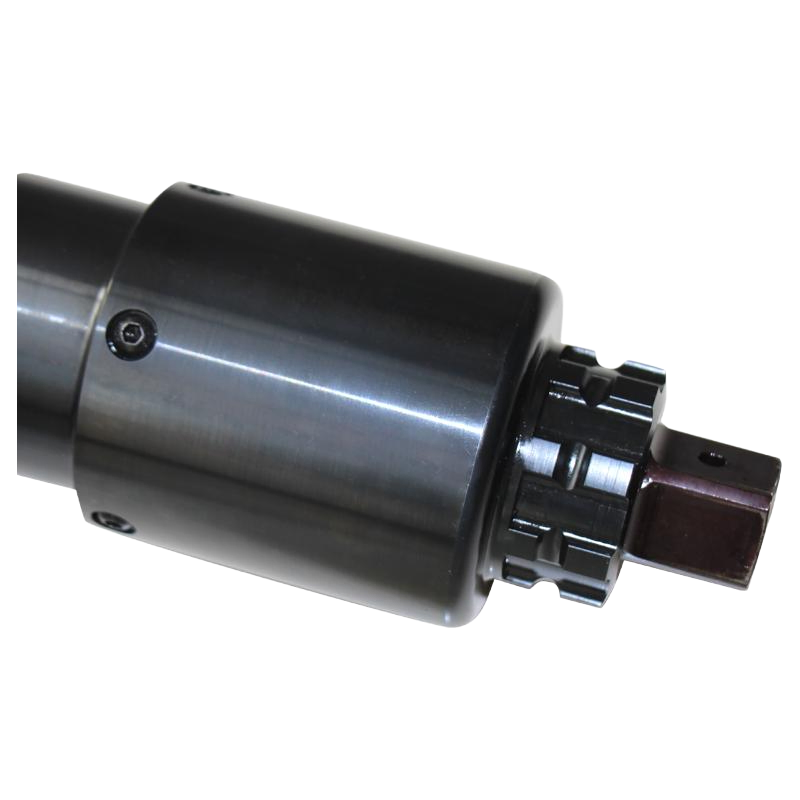

CE cerification is current, and we usually have stock on hand (check lead time for OEM custom colors or logo stamping), but the standard model ships in a foam-lined case with the reaction arm and a charger. The 1-inch square drive handles most M24 to M36 bolts without adapters.
5, we provide a COA with each unit that includes the calibration test data at 200, 600, and 1200 Nm, and the the motor and electronics for one year—though teh battery pack typically lasts 300 full charge cycles or so before you notice capasity drop.
We can do small trial orders, usually starting around 5 units for first-time buyers. Larger volume discounts kick in at 20+ units.
Stock orders ship within 5-7 working days. Customized versions with OEM branding take about 15-20 days depending on the spec changes.
Yes, the CE mark applies to the complete tool, including the 18V lithium battery pack and charger. We can provide a scanned copy of the certificate upon request.
Store the battery between 0°C and 40°C, ideally at around 50% charge if you're not using it for more than a month. Avoid leaving it in direct sunlight or below -10°C.
Absolutely, OEM service is available. We can add your logo to the housing and tweak the LCD display startup screen. Just share your artwork and we'll handle the rest.
