We run every batch through a 1500V dielectric test before it leaves the line, and what that does in practice is catch pinholes or thin spots in the silicone insulation that you wouldn't see otherwise, so you're not getting intermittent shorts down the road.
It handles -60°C to +150°C without the jacket cracking or getting stiff, which is better than PVC for tight bends in cold environments, and the stranded tinned copper holds up well under repeated flexing—most buyers go with 18# or 20# for appliance work, but we carry 16# through 28#.
The UL listing and RoHS compliance are standard, but we also keep ISO9001 and ISO14001 certs current, and we'll provide a COA on request for any coil you order, though the retest policy is basically if you're not satisfied with the batch consistency, we'll re-run it at our cost (usually 2-4 weeks turnaround).
Standerd lengths are 305m or 610m per coil, but our company can do custom cuts if you need something specific, and the outer diameter tolerance is ±0.1mm, which matters when you're threading it through tight grommets or terminal blocks.

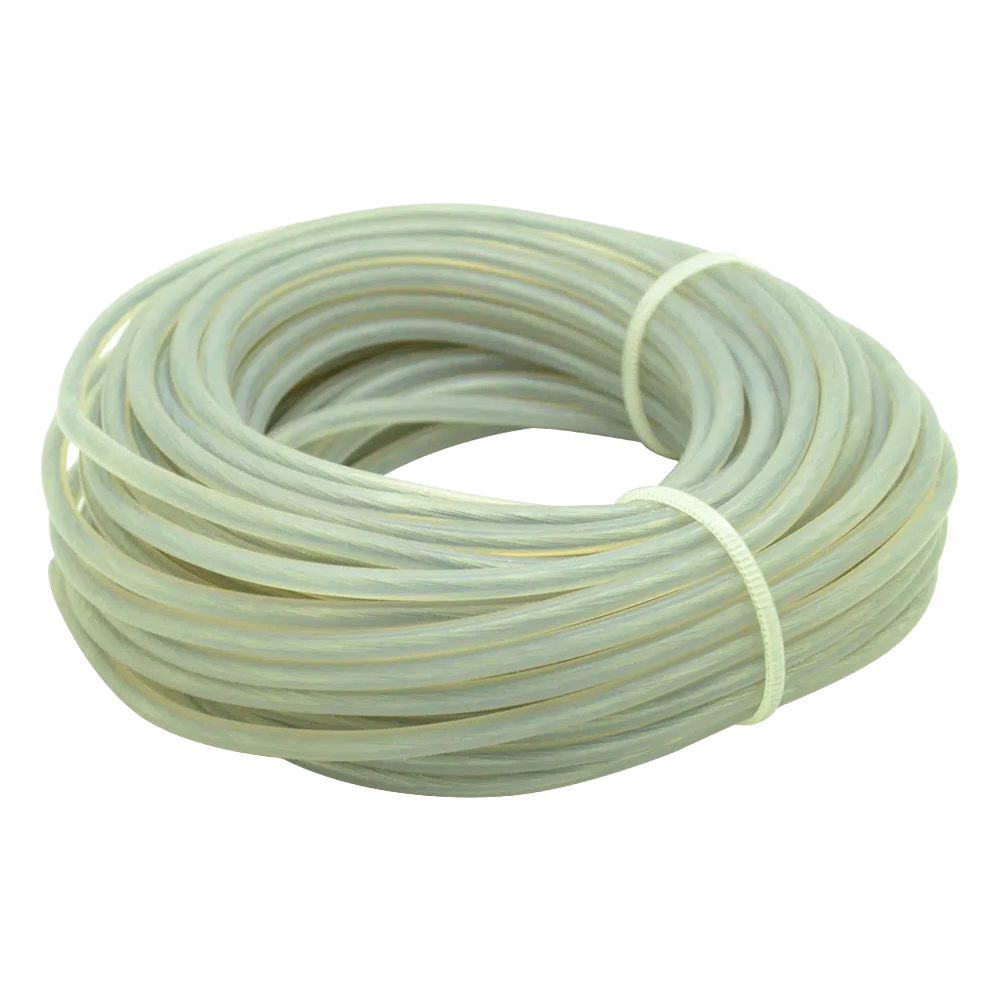

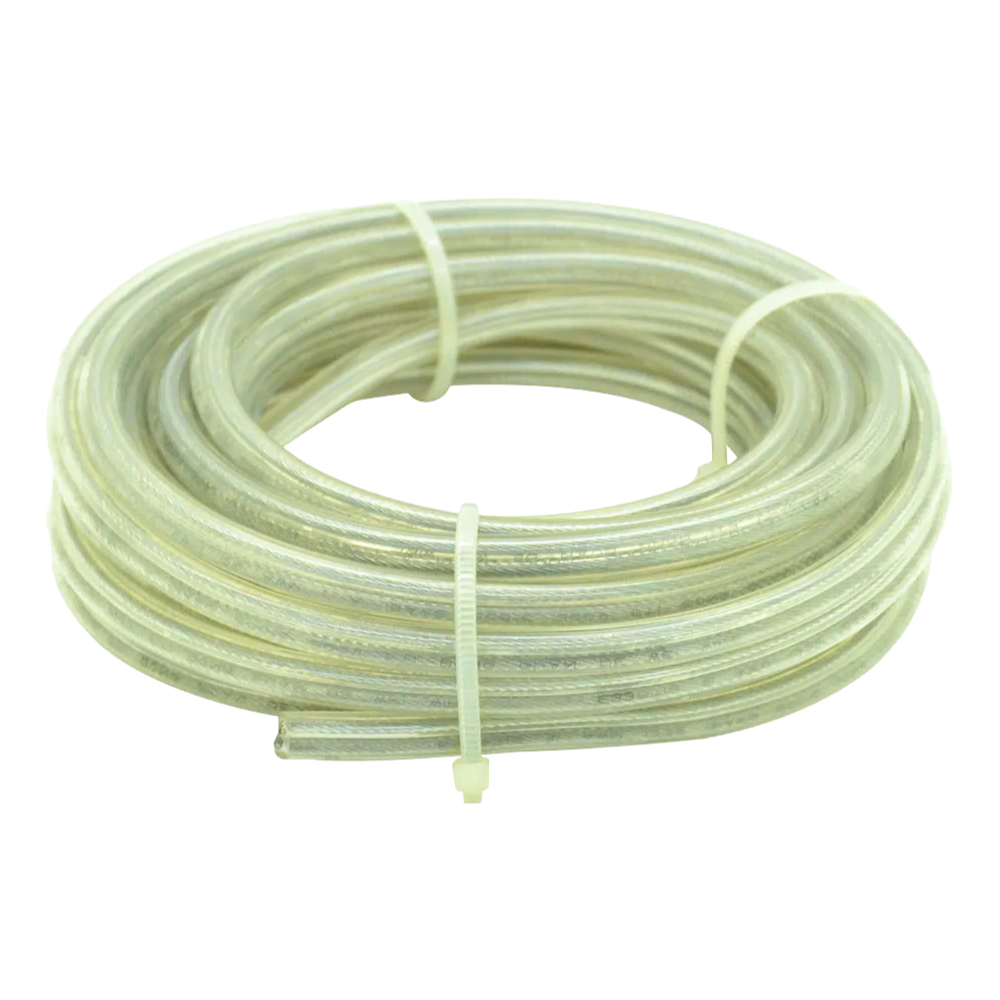

It's not suited for high-votage mains runs above 300V, but for internal wiring in home appliances or electromechanical gear, it's pretty much teh go-to, and the transparent option is handy when you need to visually inspect the conductor after crimping.
Anyway, we usually have 20# and 22# in stock across all the standard colors—white, blue, red, black, brown, yellow, green, plus clear—so lead time is about a week or so for those, but confirm MOQ if you need less than a full coil.
Our standard MOQ is one full coil (305m), but we can cut smaller lengths for sample orders or prototyping—just let us know how much you need and we'll quote accordingly.
Yes, we include UL, RoHS, and ISO certificates with every shipment. If you need specific copies beforehand for compliance review, just ask and we'll send them over.
Standard lead time is 7–10 business days for common AWG sizes and colors like 18 AWG black. If you need it faster, we can sometimes expedite for an additional fee.
Absolutely—we offer custom packaging, so if you need shorter lengths on spools or cut-to-length pieces for your assembly line, just specify the length and we'll arrange it.
Ampacity varies by AWG, but roughly 16 AWG handles about 18–22A and 22 AWG about 7–10A at 150°C ambient—exact values depend on your application's bundling and airflow. We can share a detailed ampacity chart if needed.
