You're looking at roughly 300 meters minimum on a roll, often 305 meters per coil, and we can cut to your length if you need something different — lead time is usually a few weeks for custom sizes.
It handles AC and DC current up to 450/750V, with a 2500V test voltage thrown in for safety, so it's solid for construction and industrial wiring where you've got low-to-medium voltage runs and need something that won't give up.

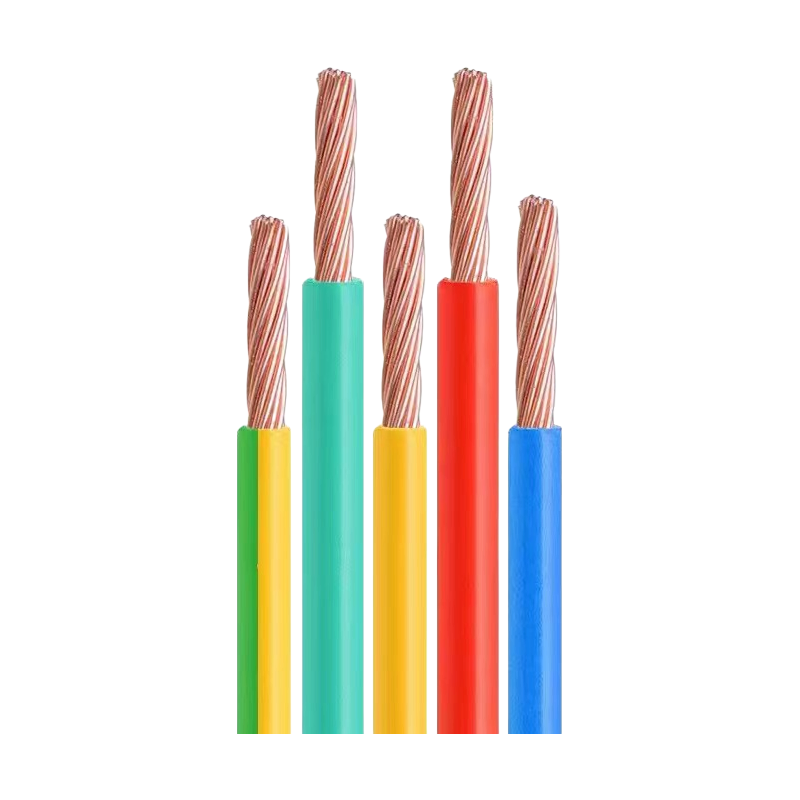

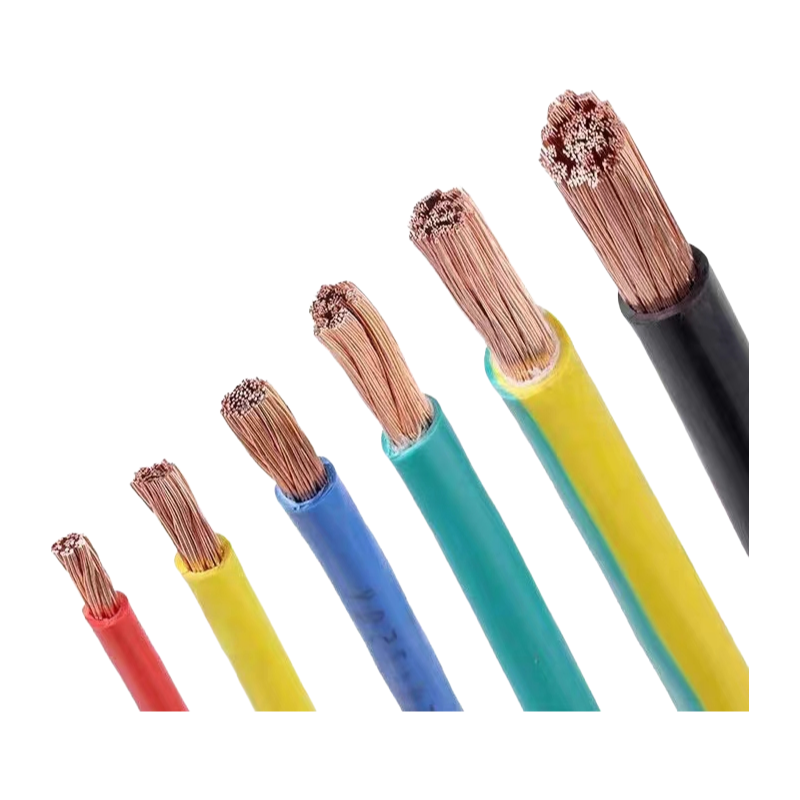

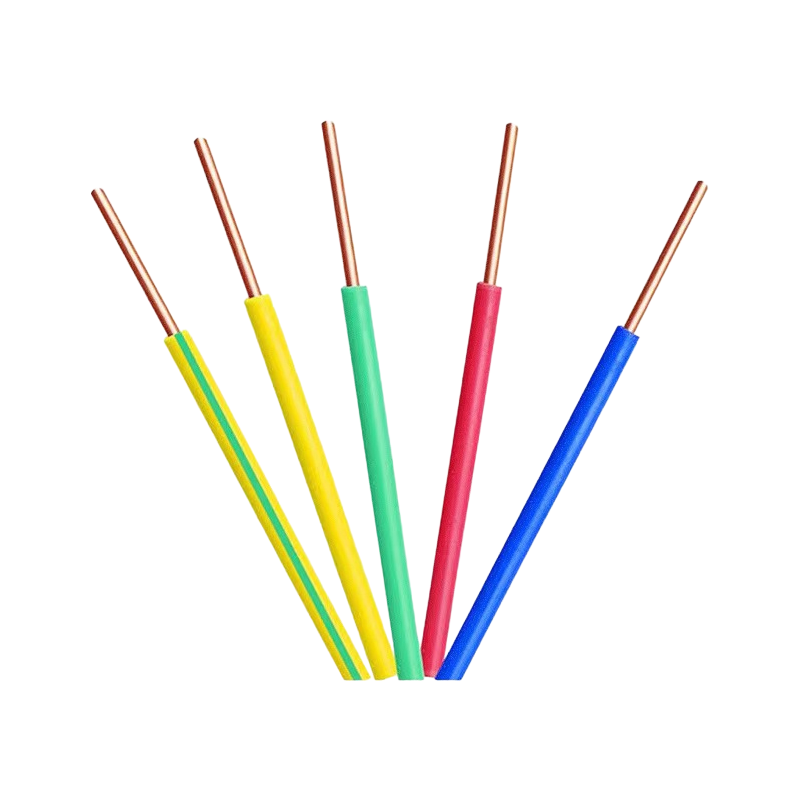

Bare copper core, single strand, PVC insulation and sheath — tempearture range is -30°C to 70°C, which is decent for most indoor and outdoor setups, and the minimal bending radius is 4D, so you don't have to baby it but don't treat it like rope either.
Basically, it's a workhorse wire — we've seen it used for power distribution in factories and building wiring, but it's not suited for high-flex applicaions or extreme heat, so keep that in mind.
Oxygen index is high, abrasion resisance and tensile strength are both high, and conductivity is top-notch — better than some generic PVC wire we've tested, and we've got ISO, CCC, and CE certs on file, plus COAs available for each batch.
Color options are plenty — red, blue, green, yellow, brown, black, grey, white, pink, orange, and yellow/green — and we can do ODM or OEM if you've got your own packaging specs, though we usually stock the common sizes right away.
Our standard MOQ is 300 meters per model, but if you need a custom cross-sectional area, we can work that out with you. Just reach out with your requirements, and we'll confirm the MOQ for that specific size.
Samples are available, and we can send one in any of the standard colors—Red, Blue, Green, Yellow, and so on. Typically, samples ship within a few days after you place the request.
Yes, we can provide test reports and certification copies, including for the 2500V voltage test and CCC, ISO, or CE. Just let us know which documents you need with your order.
Absolutely, we offer customization for length and cross-sectional area. If you need rolls longer or shorter than 305 meters, we can adjust that based on your project needs.
Store it in a dry, cool place away from direct sunlight and moisture. Keeping it at room temperature is fine—just avoid extreme heat or cold that could stress the PVC insulation before use.
