Heavy Duty Manual Control Panel Saw Machine with 1250mm Max Cutting Width Heavy Duty Manual Control Panel Saw Machine with 1250mm Max Cutting Width
Heavy Duty Manual Control Panel Saw Machine with 1250mm Max Cutting Width Heavy Duty Manual Control Panel Saw Machine with 1250mm Max Cutting Width
Heavy Duty Manual Control Panel Saw Machine with 1250mm Max Cutting Width Heavy Duty Manual Control Panel Saw Machine with 1250mm Max Cutting Width
Heavy Duty Manual Control Panel Saw Machine with 1250mm Max Cutting Width Heavy Duty Manual Control Panel Saw Machine with 1250mm Max Cutting Width

Heavy Duty Manual Control Panel Saw Machine with 1250mm Max Cutting Width

US$ 2500.00 ~ 3000.00
Min.Order: 1
Product origin: Qingdao, Shandong, China
Category: Tools
Product Name: Tools
Availability:In Stock
Product Review : 24 Reviews
Infringement complaint:
* Please contact the supplier via whatsapp first before placing an order
  • Model NO. : MJ6130TDZ
  • Type : Table Panel Saw
  • Power Type : Electric
  • Layout : Horizontal
  • Controlling Mode : Manual
  • Precision : High Precision
  • Certification : CE, ISO
  • Customized : Available
  • Dimension of Sliding Table : 3000x375mm
  • Gross Cut Capacity : 3000mm
  • Saw Blade Diameter : 300mm (250-300mm)
  • Height of Cut : 80mm (with 300mm blade)
  • Speed of Main Saw Spindle : 4500/6000rpm
  • Main Spindle Diameter : 30mm
  • Tilting Saw Blade : 0-45°
  • Main Motor Power : 5.5kw
  • Scoring Saw Blade Diameter : 120mm
  • Speed of Scoring Saw Blade : 8000rpm
  • Scoring Saw Diameter : 20mm
  • Scoring Motor Power : 1.1kw
  • Weight : 850kg
  • Overall Dimension : 3000x2450x900mm

We've been shipping these for about three years now, and what actually makes it worth buying is the build quailty for the price—you're getting a 850kg frame with a plated chrome steel guide track that holds alignment better than some units we've seen costing twice as much.

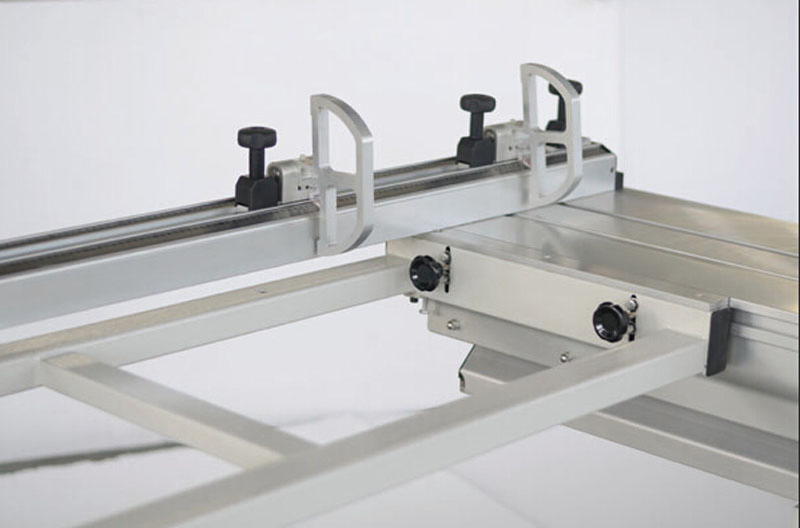

MJ6130TDZ Panel Saw Front View

With a 3000x375mm sliding table and that 1250mm max width, you can handle full-size panels in one pass, and the 5.5kw main spindle runs at 4500 or 6000rpm depending on what you're —density boards or solid wood up to 80mm thick with a 300mm blade, or you can tilt it 0-45° for bevels.

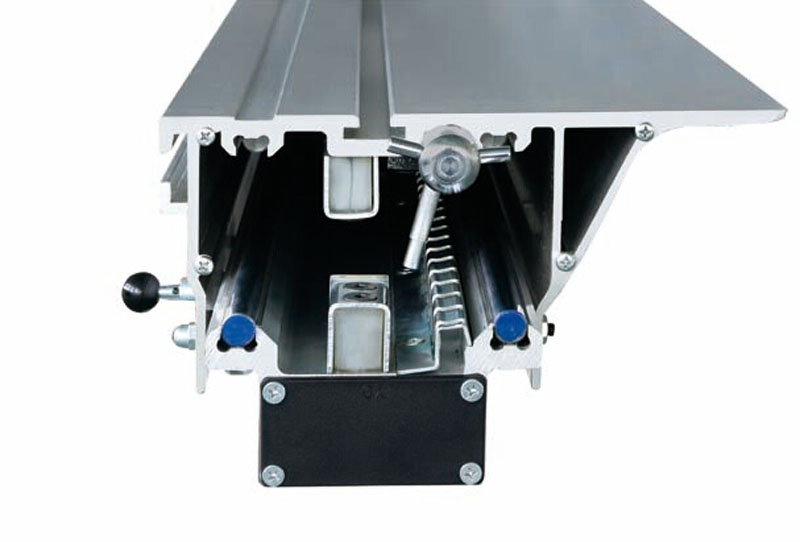

MJ6130TDZ Panel Saw Side View

Scoring saw runs at 8000rpm with its own 1.1kw motor, which is pretty much essential if you're finishing melamine or PVC panels without chipping—most buyers go with teh 120mm scoring blade we stock, but confirm lead time because it's usually 20 days or so.

Documentation is straightforward: we provide CE and ISO certifications with every unit, plus a COA for the main spindle assembly (HPLC-verified for runout tolerance), and the manual covers basic maintenance—though it's written for a technical reader, so your guys should be fine.

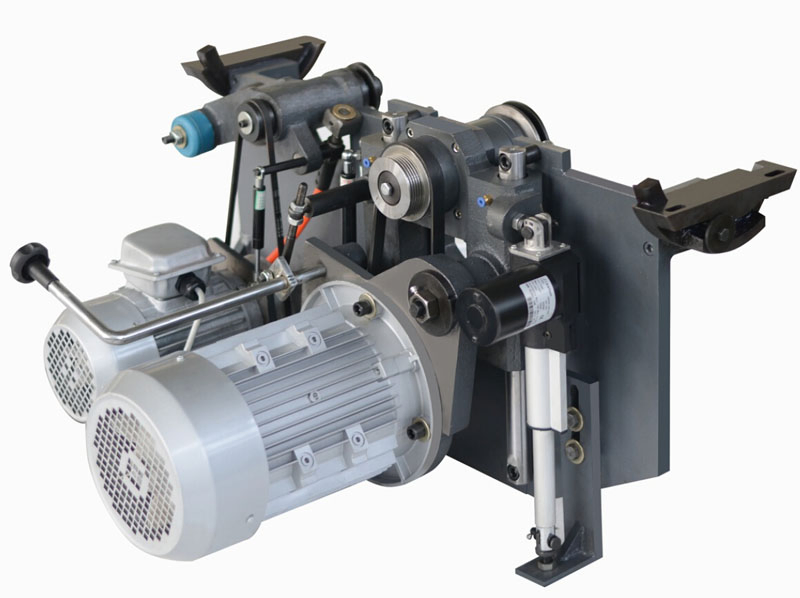

MJ6130TDZ Panel Saw Detail View

Payment terms are typically 30% deposit with balance before shipping, and we ship via LCL form Shanghai; freight runs about $800-1200 depending on your port, but we've had a few buyers source their own forwarder and that works too.

MJ6130TDZ Panel Saw Operation View

One detail that's easy to overlook: the sliding table surface is anodized aluminum, which resists glue buildup better than painted steel, but if you're abrasive materials like solid wood with heavy resin content, you'll want to wipe it down regularly—it's not suited for wet, anyway.

Frequently Asked Questions

What's the minimum order quantity for the MJ6130TDZ?

We can do as few as 1 unit for standard specs, but if you need customizations, we usually ask for a minimum of 5 pieces per order.

How long does it typically take to ship this panel saw after ordering?

For standard models, lead time is about 15-20 working days. Custom orders might take 25-30 days, depending on the changes.

What's included with the CE and ISO certifications for this machine?

The MJ6130TDZ comes with CE and ISO certificates covering safety and quality standards. We can provide copies with the shipment or upon request.

Can the saw blade tilt be adjusted beyond 45 degrees?

No, the tilting range is fixed at 0 to 45 degrees for bevel cuts. That's standard for this model and most table panel saws.

What's the packaging like for the 850kg MJ6130TDZ for export?

We pack it in a plywood case with foam padding and metal strapping to protect the sliding table and motor during shipping. It's ready for sea or air freight.
