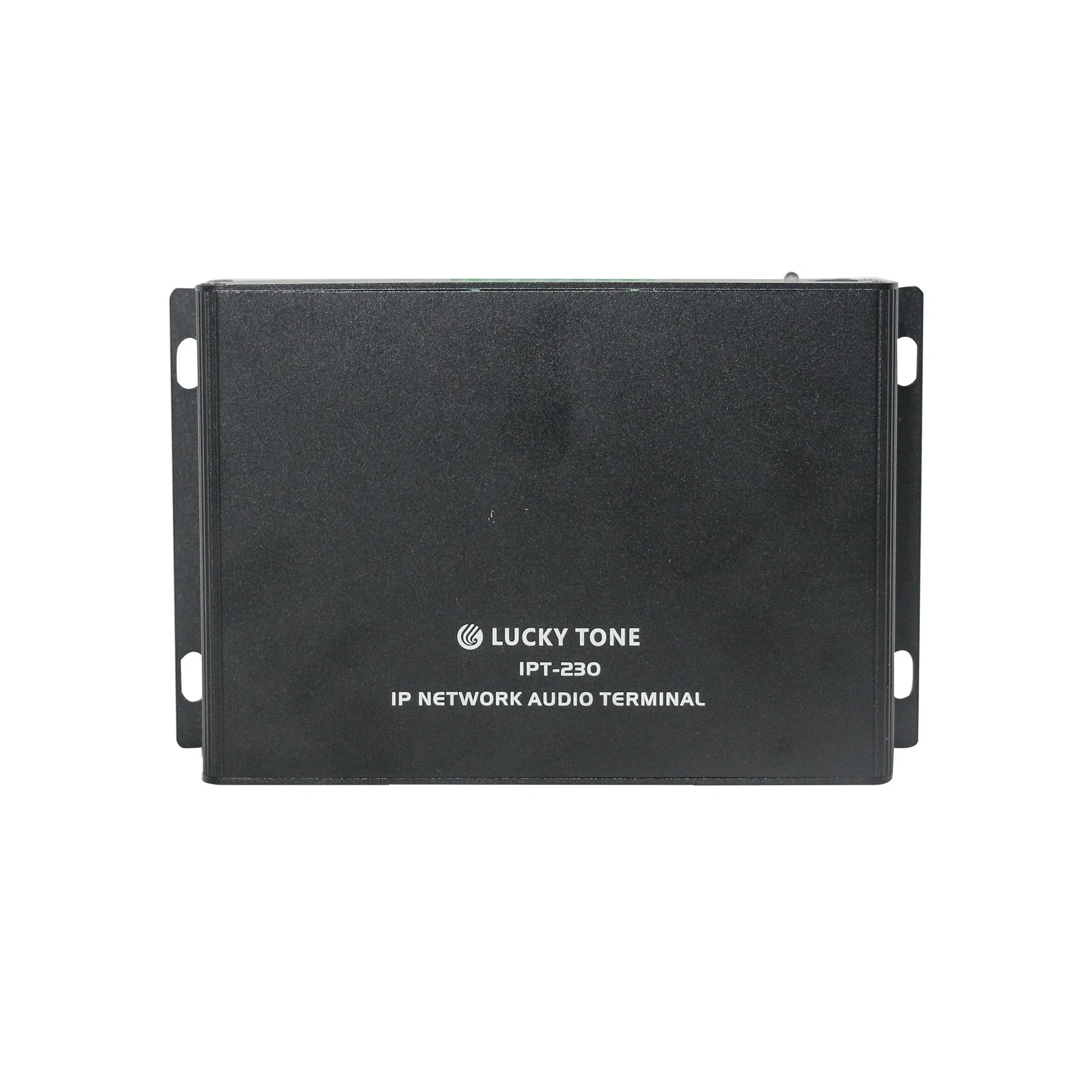

So you're looking at the 2x30W wall-mount unit for your PA system, and I think we've got what you need here with the IPT-230 or the IPT-230S variant—the main difference is SIP support on the S model, which matters if you're integrating with VoIP trunks or intercoms.
It runs on a dual-core ARM plus DSP processor, which basically means it boots in under a second (startup time is <1 second), and the frequency response from 20Hz to 20kHz at ±3dB is pretty standdard for commercial audio but actually fine for paging or background music in hallways or lobbies.
We've shipped these to a few schools and hospitals, and the standby power draw is under 300mW, so it's not going to kill your energy budget if you leave them on 24/7, though you'll want to check whether your network switch supports PoE or if you're going with DC 24V depending on teh model you pick.
One thing we've noticed from handling these is the mounting bracket is solid—no flimsy plastic tabs that snap after a year—and the operating temperature range from 0°C to +85°C means it'll handle a warm equipment closet or a chilly hallway without issue, but I wouldn't put it in a direct outdoor enviroment since it's not weather exposure.
For ordering, we usually have stock on the IPT-230 model (lead time is about 10-14 working days), but the IPT-230S with SIP can take 20 days or so depending on the batch—and our MOQ is 50 units if you want the best price, though our company can do smaller runs at slightly higher per-unit cost.
The IPT-230S includes SIP protocol support for VoIP integration with PBX or intercom systems, while the IPT-230 does not. Both models share the same 2x30W output and wall-mounted design.
Yes, it supports PoE (power over Ethernet) on certain models, but double-check your unit spec. Standby power is under 300mW, and full output draws more—up to around 60W total for both channels.
We can supply a test report showing the 20Hz-20kHz (±3dB) frequency response. No specific certifications like CE or FCC are included by default, but we can arrange them on request for larger orders.
For custom firmware or logo printing on the enclosure, we require a minimum of 500 units. Standard models have no MOQ—you can order as few as 10 pieces for evaluation.
Keep them in a dry, dust-free environment within the 0°C to +85°C temperature range. They're wall-mounted units, so avoid stacking heavy boxes on top of them during storage.
