Customizable Tianyu C6 PRO RTK GNSS Survey Equipment with Multi-System Compatibility Customizable Tianyu C6 PRO RTK GNSS Survey Equipment with Multi-System Compatibility
Customizable Tianyu C6 PRO RTK GNSS Survey Equipment with Multi-System Compatibility Customizable Tianyu C6 PRO RTK GNSS Survey Equipment with Multi-System Compatibility

Customizable Tianyu C6 PRO RTK GNSS Survey Equipment with Multi-System Compatibility

US$ 3000.00 ~ 2800.00
Min.Order: 1
Product origin: Nanjing, Jiangsu, China
Category: Electrical Equipment & Supplies
Product Name: Electrical Equipment & Supplies
Availability:In Stock
Product Review : 1 Reviews
Infringement complaint:
* Please contact the supplier via whatsapp first before placing an order
  • Model Number : Tianyu C6 PRO/G7
  • GNSS Channels : 1598 channels
  • Supported Systems : GPS/GLONASS/BDS/Galileo/QZSS/SBAS/IRNSS
  • Positioning Rate : 1Hz-20Hz
  • RTK Accuracy : 8mm + 1ppm horizontal, 15mm + 1ppm vertical
  • IMU Tilt Range : 0°-60°
  • Operating Temperature : -25°C to +65°C
  • Protection Rating : IP67 waterproof/dustproof
  • Battery Life : 15 hours (Rover Bluetooth mode)
  • Weight : 970g (including battery)
  • Data Storage : 4GB internal (expandable to 64GB)
  • Communication : Bluetooth 4.1, WiFi 802.11 b/g, NFC
  • Radio Frequency : 410-470MHz
  • Warranty : 1 year

So you're probably dealing with sites where tree cover or building shadows keep knocking out your signal, and what you really need is something that locks onto every system out there without you having to babysit it—that's pretty much where this unit comes in, with 1598 channels covering GPS, GLONASS, BDS, Galileo, QZSS, SBAS, and even IRNSS, so it's not picky about where you're working.

It'll give you RTK accuracy at 8mm plus 1ppm horizontally and 15mm plus 1ppm vertically, which is better than most receivers in this class for the price, and the IMU tilt compensation works from 0° up to 60° so you can take measurements without perfectly leveling the rod every time (most buyers go with the 60° range for tough terrain).

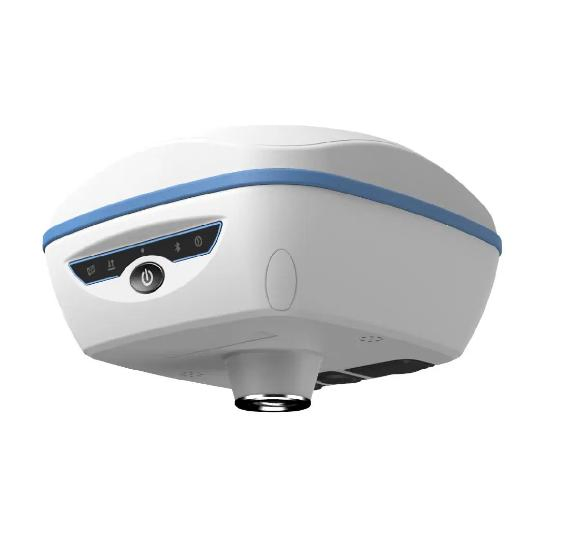

Tianyu C6 Pro GNSS Receiver Front View

The thing weighs 970g with battery included, and that battery lasts about 15 hours in rover Bluetooth mode—we usually have stock on the standerd 4GB internal storage model, but you'll want to confirm lead time if you need the 64GB expansion because that's a custom order (usually 2-4 weeks).

Anyway, the housing is magnesium aluminun alloy with an IP67 rating, so it's waterproof and dustproof, and it runs form -25°C to +65°C without issues—one detail you might not think to ask is that the radio frequency range is 410-470MHz, which covers most regional bands but check your local regs before ordering.

Tianyu C6 Pro GNSS Receiver Side View

For customiaztion, our company can do OEM branding on the unit itself and the carrying case, and the MOQ for that is typically 50 units or so, but if you just need a few with standard branding, we can ship those out roughly within a week.

Also, it's not really suited for static base station setups that run 24/7 without a break—the internal battery is great for rover work, but you'd want an external power source for continuous base operation, and the one year on hardware defects with COA included.

Frequently Asked Questions

What is the real-world RTK accuracy of the Tianyu C6 PRO in millimeters?

Horizontal accuracy is 8mm + 1ppm, vertical is 15mm + 1ppm. So on a 1 km baseline, you’re looking at 9mm horizontal and 16mm vertical.

Is the 4GB internal storage enough for a full day of field data, or do I need to expand it?

4GB stores thousands of survey points, but if you’re logging raw data at high rates for hours, you’ll want to pop in a microSD up to 64GB. The slot is there for that.

Can the IMU tilt compensation work up to 60° without losing accuracy?

Yes, the IMU handles tilt up to 60°, no leveling needed. Just keep the pole steady and it’ll give you sub-centimeter accuracy even when you can’t get the rod perfectly vertical.

What’s the typical lead time for a custom-branded batch of 10 units?

For a small batch like 10 units with custom branding, lead time is usually 2-3 weeks after order confirmation. We’ll send you a sample for approval first.

Does the IP67 rating mean I can submerge it in water for a few minutes?

Yes, IP67 means it’s dust-tight and can handle being submerged in up to 1 meter of water for 30 minutes. Just don’t test it with saltwater or leave it underwater overnight.
