8828 GSM Fixed Wireless Terminal - 1 Channel GSM to Analog Converter with LCD Display 8828 GSM Fixed Wireless Terminal - 1 Channel GSM to Analog Converter with LCD Display
8828 GSM Fixed Wireless Terminal - 1 Channel GSM to Analog Converter with LCD Display 8828 GSM Fixed Wireless Terminal - 1 Channel GSM to Analog Converter with LCD Display

8828 GSM Fixed Wireless Terminal - 1 Channel GSM to Analog Converter with LCD Display

US$ 37.00 ~ 30.00
Min.Order: 1
Product origin: Shenzhen, Guangdong, China
Category: Electrical Equipment & Supplies
Product Name: Electrical Equipment & Supplies
Availability:In Stock
Product Review : 2 Reviews
Infringement complaint:
* Please contact the supplier via whatsapp first before placing an order
  • Model Number : 8828
  • Type : GSM Fixed Wireless Terminal
  • Channels : 1
  • SIM Card Slots : 1
  • RJ-11 Outputs : 2
  • Frequency Bands : GSM850/900/1800/1900MHz
  • Display : LCD
  • Caller ID : Supported
  • DTMF Dialing : Supported
  • Dial Tone Frequency : 450Hz
  • Picking Current : 30mA/41mA
  • Antenna Interface : SMA
  • Antenna Gain : >2.5dB
  • Receiver Sensitivity : <-104dBm
  • Transmit Power : <3W
  • Power Input : AC 110-240V 50-60Hz
  • Power Output : DC 12V 1A
  • Backup Battery : Optional 7.2V 1000mAh Li-ion
  • Standby Time : 24 hours (with backup battery)
  • Talk Time : 2.5 hours (with backup battery)
  • Operating Temperature : -10°C to +60°C
  • Storage Temperature : -20°C to +70°C
  • Humidity Range : 45%-95%
  • Dimensions : 170×118×30mm
  • Weight : Approx. 450g
  • Certifications : CE
  • Warranty : 1 Year

The 8828 GSM Fixed Wireless Terminal is a robust GSM to analog converter designed for professional telecommunication applications. This single-port device features an LCD display and supports one SIM card (1.8V/3V), converting GSM signals to FXS line output for seamless integration with traditional telephone systems.

8828 GSM Fixed Wireless Terminal Front View

Key applications include connecting to ordinary telephone sets for voice calls, PBX systems for call extensions, billing systems for public phone use, FXO gateways for call termination, and alarm systems for security purposes. The device supports both incoming and outgoing calls with full landline functionality through the GSM network.

Technical highlights include adjustable dial interval (0.5-9 seconds), voice volume control through telephone commands, caller ID display, DTMF dialing, bell signal, and polarity reversal/12Khz/16Khz pulse billing. The unit features an RJ-11 socket for phone/billing system connection and SMA antenna socket for enhanced signal reception.

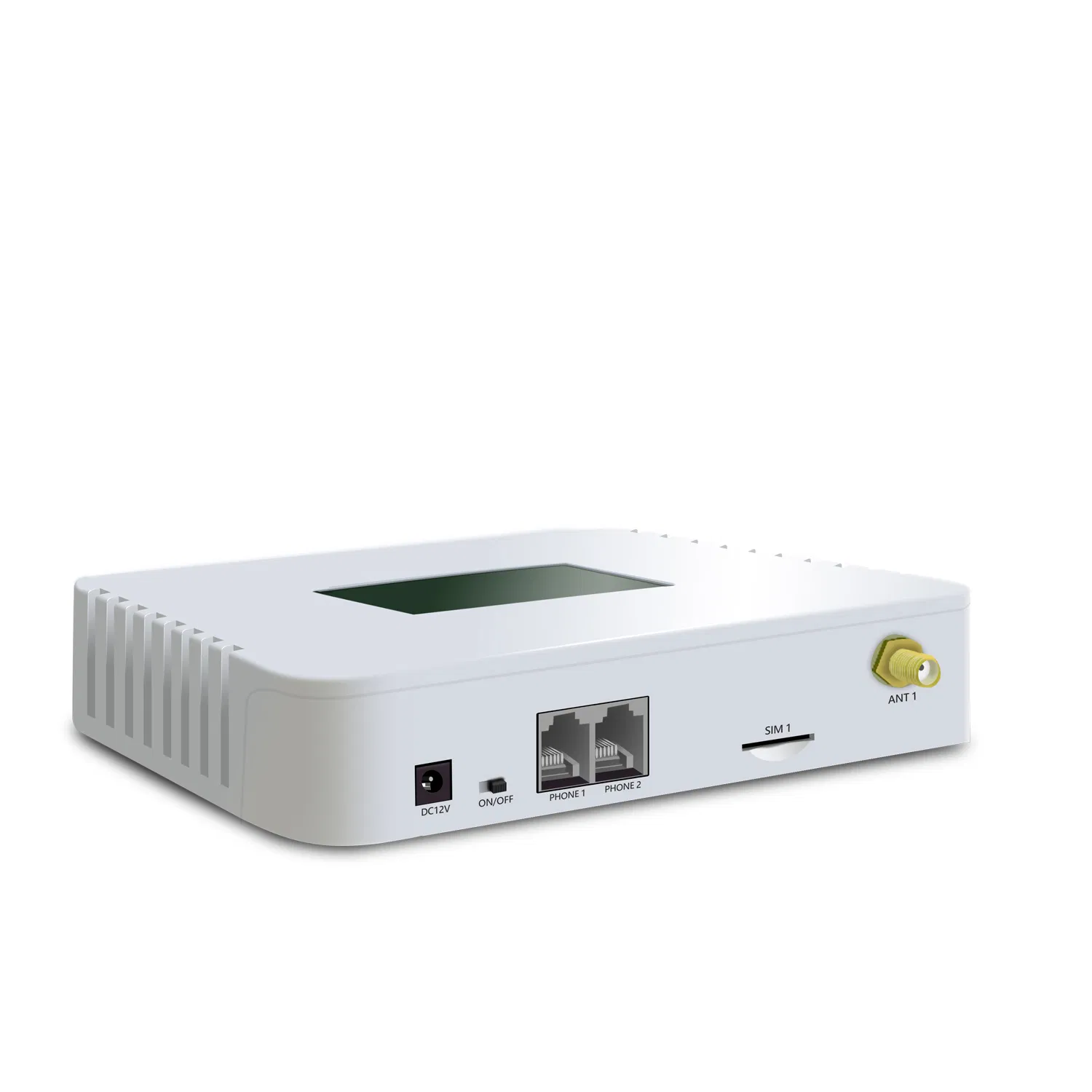

8828 GSM Fixed Wireless Terminal Side View

The industrial-grade design includes IP presetting capability and LCD display for real-time monitoring of working status and signal strength. Optional features include IMEI change capability and backup Li-ion battery (7.2V 1000mAh) providing 24 hours standby time and 2.5 hours talk time.
