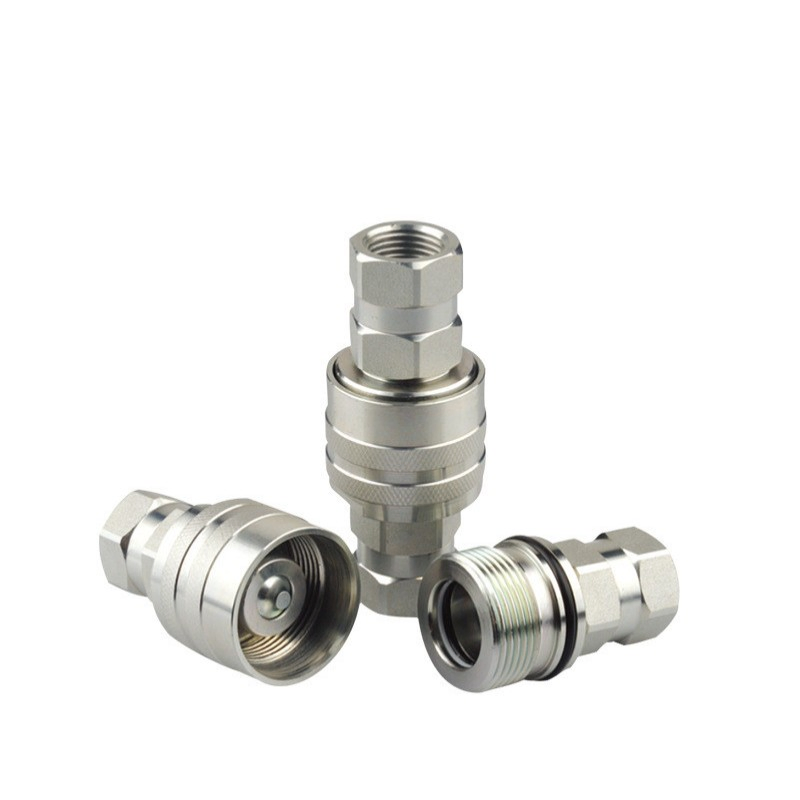

We had a contractor tearing through excavator hoses every other week with cheaper couplings, which is exactly why we switched to these steel ones with the ball locking mechanism — you feel the solid click when it seats right, and the NBR seals handle the temperature swings we see from winter startups to midday heat without leaking.
It runs at 5000 PSI working pressure with flow from 3 to 50 GPM depending on size you order (1/4" to 1" are available), and the chrome plating on carbon steel holds up way better than zinc against mud and grime. The thread options cover BSPP, BSPT, NPT, NPTF, and SAE, so you're not locked into one standerd (usually most buyers go with NPT or BSPP for construction gear). Each coupling is machined form solid barstock, not cast, so the tolerances are tighter than what you'd get from generic imports.
These are not for low-pressure garden hose setups — they're built for excavators, drilling rigs, and forestry equipment where a blowout means downtime on a five-figure job. One thing our field guys noticed early on: the poppet valve design can restrict flow slightly when you're pushing near the upper GPM limit on the smaller sizes (the 1/4" is better suited for pilot lines than main circuits). Compatible with FASTER CVV and STCCHI VD series, so swapping out old fittings is pretty much plug-and-play.
Minimum buy is 10 pieces, lead time runs about 15 days or so, and you get a one-year warranty with COAs that meet DIN and GB standards. We usually have stock on the 1/2" and 3/4" — teh 1" might need a confirmation on lead time.
Yes, 5000 PSI is the rated working pressure, so you can run these couplings continuously at that level without issues. Just keep them within the -20°C to +120°C range for the NBR seals to hold up.
Absolutely—they’re designed to be fully interchangeable with FASTER CVV and STCCHI VD couplings, same dimensions and ball locking mechanism. You won’t need any adapters or modifications.
We’ve got BSPP, BSPT, NPT, NPTF, and SAE threads available across all sizes from 1/4" to 1". You can mix thread types in a single order—just specify them and we’ll handle it.
Yes, we can supply material certificates and test reports upon request. The couplings are manufactured to DIN and GB standards, so all documentation is available to back that up.
Minimum order is 10 pieces total, and you can mix sizes and thread types to hit that. Lead time is 15 days from order confirmation, including custom thread options.
