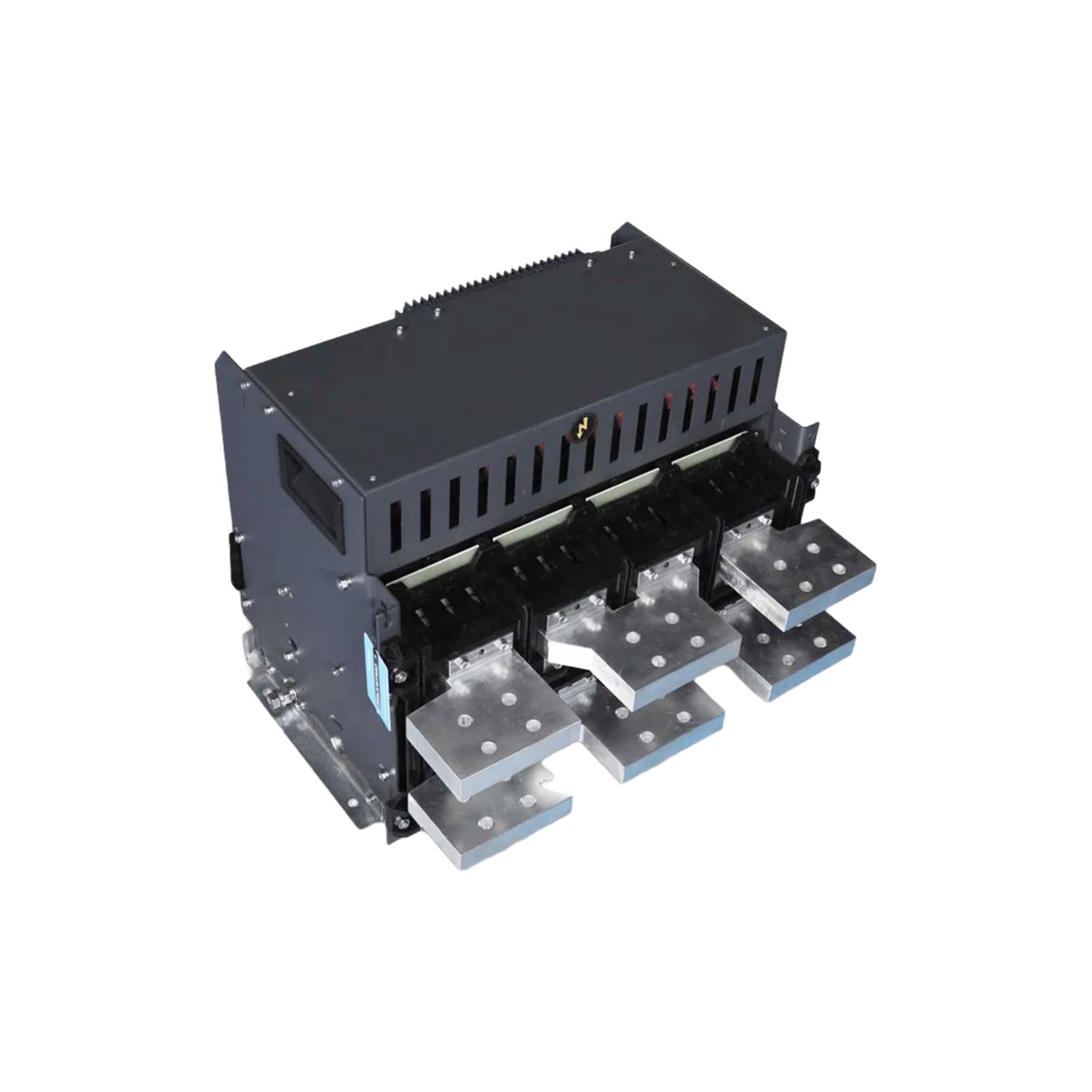

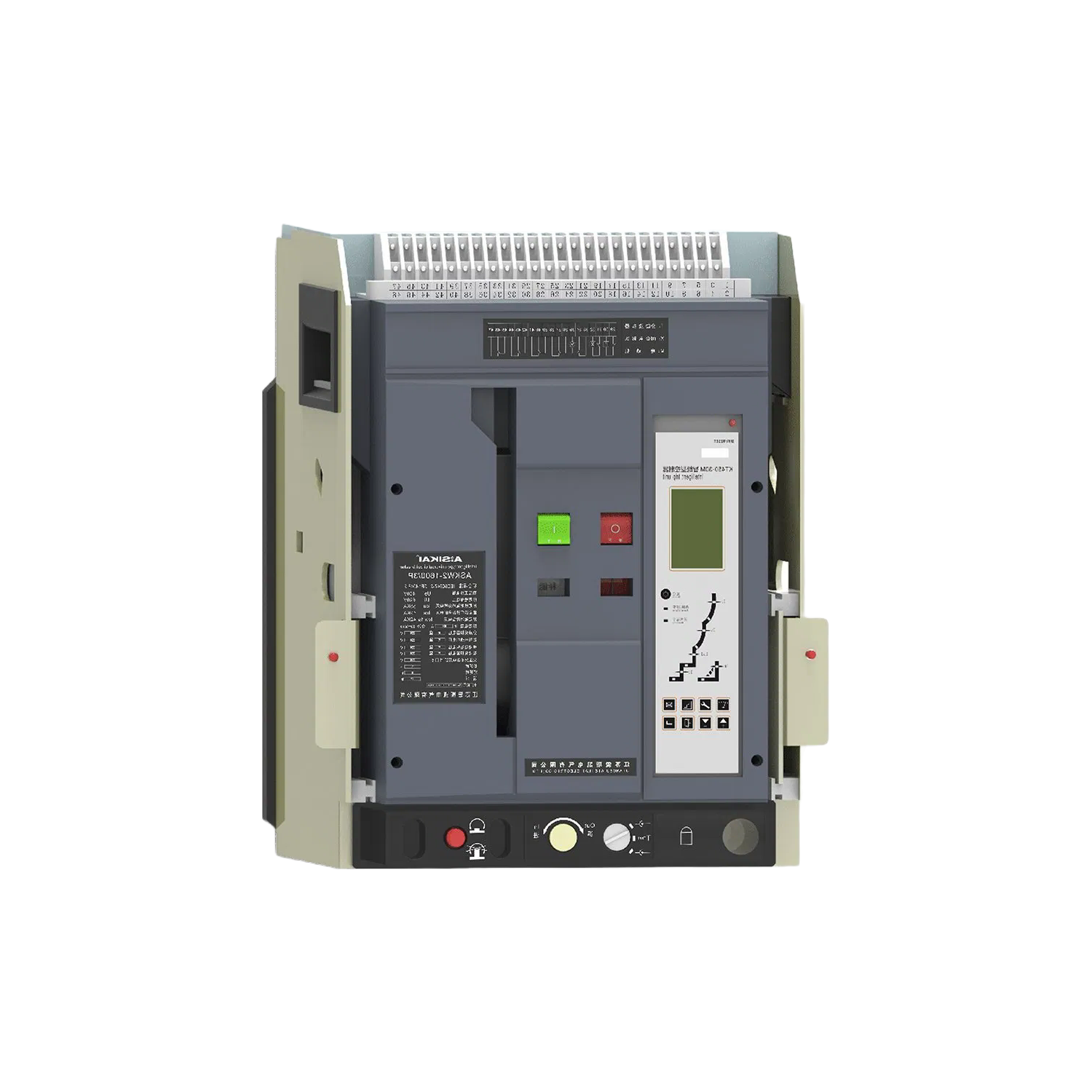

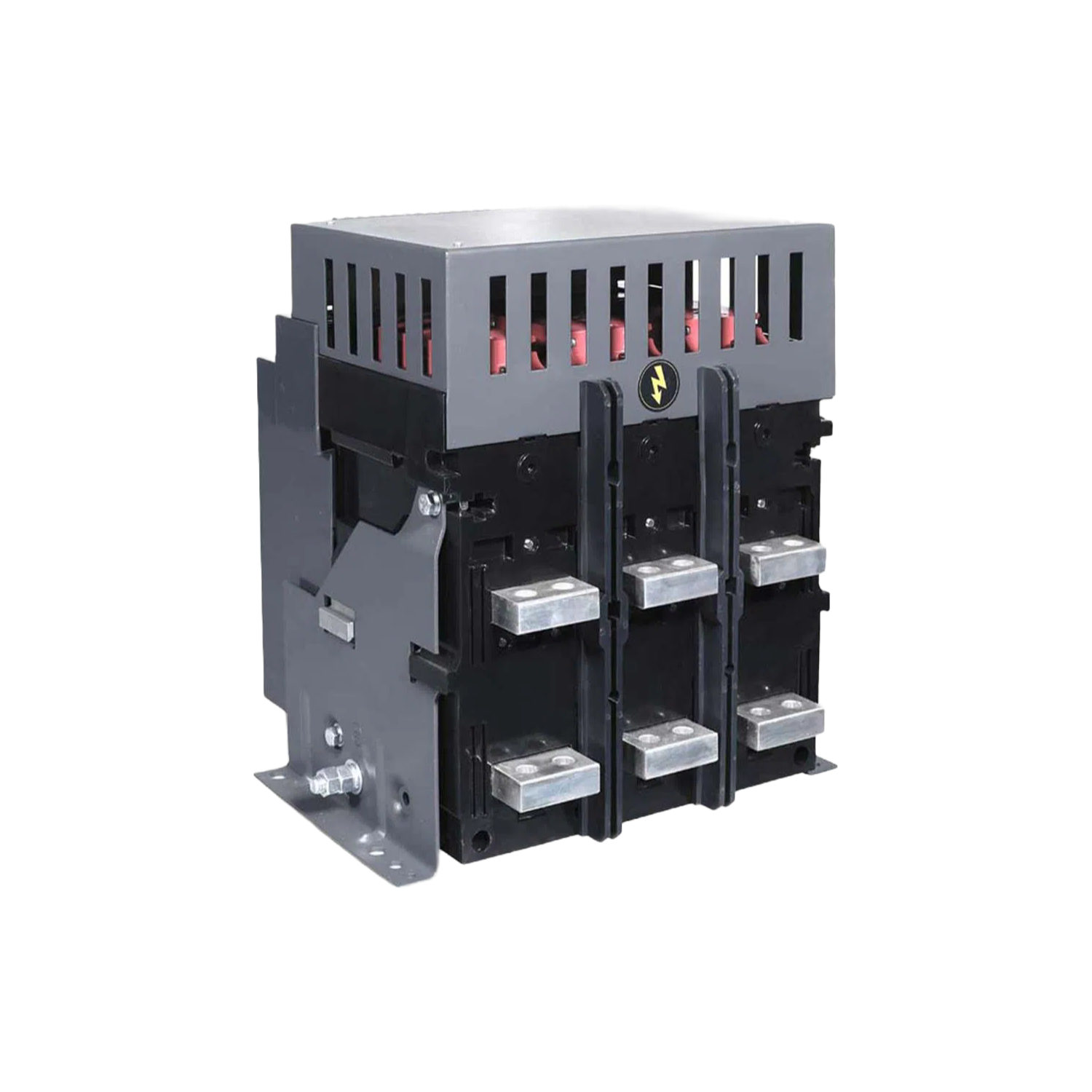

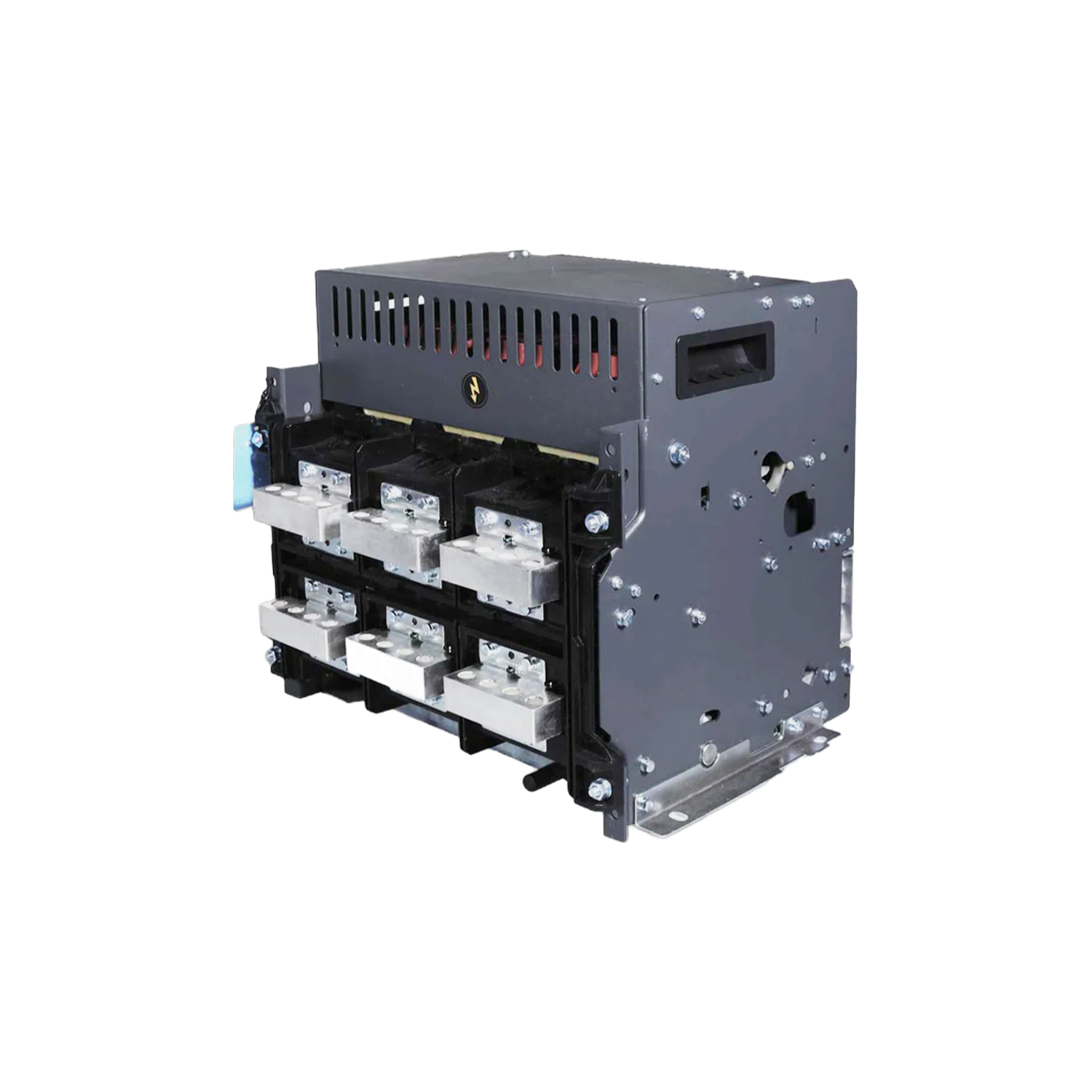

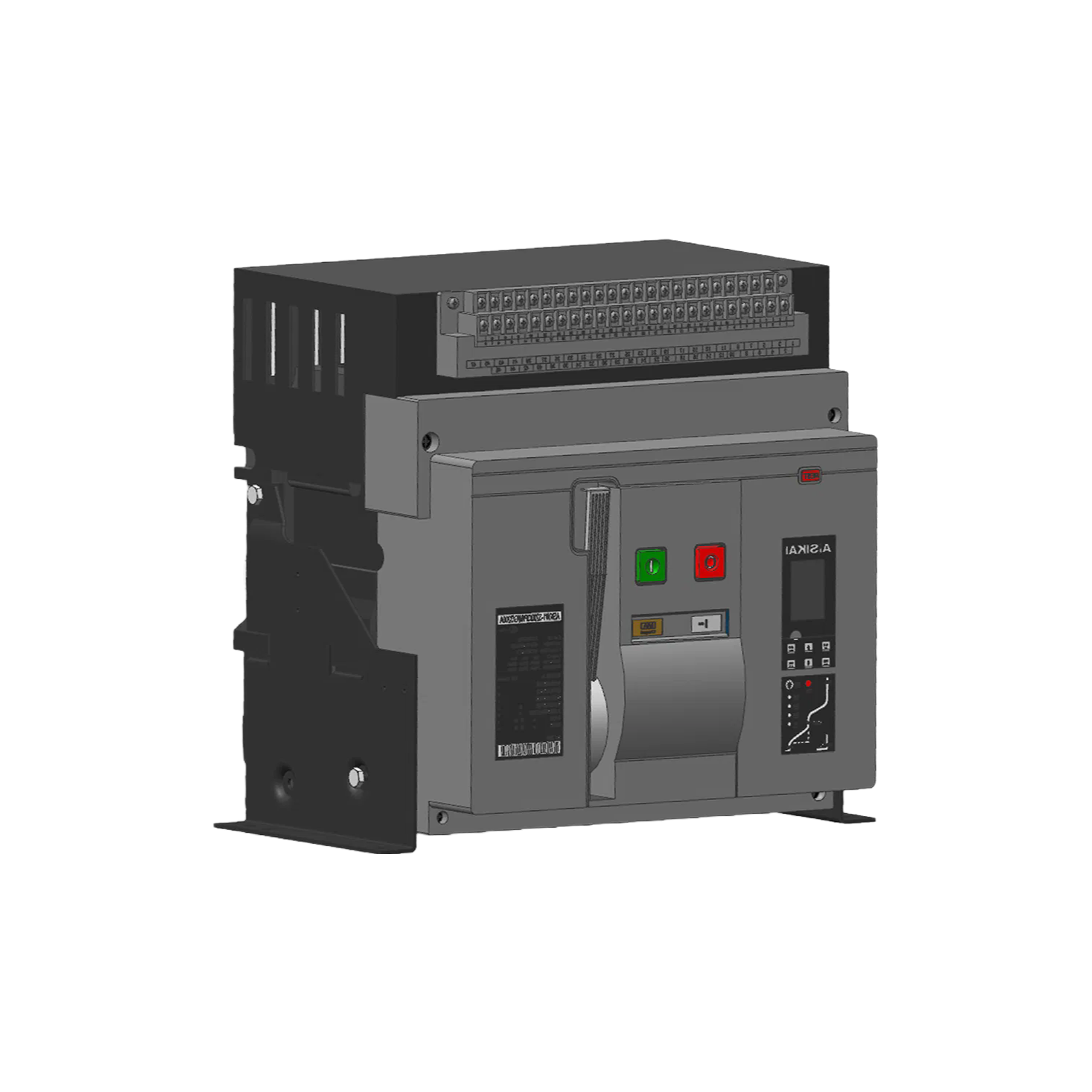

It’s been through our standdard test cycle before it leaves the floor—short-circuit at 65KA for one second, dielectric at 12KV impulse, the full load run at 170W dissipation—so you’re not getting a box with unknown internals. The 4000A rated current and 400V/690V AC voltge options mean it’s built for main feeders in substations or large motor control centers, not light commercial panels.
We batch-test every production run and keep COAs on file for the CE and CCC marks, which cover the basic protection modes like overload, short-circuit, and single-phase fault. Most buyers go with the electric operation type on the 3P fixed frame, because racking out a 4000A breaker by hand is pointless at that size. One thing we don’t do is re-test to custom specs for single-unit orders—the retest policy applies only to full-lot returns.
Breaking capacity is 50KA at 400V and 40KA at 690V, which is better than teh generic 35KA stuff you’ll find on some other brands, but it’s not meant for high-fault coastal switchgear where you’d need 65KA or more at 690V. Actually, the arc-extinguishing is air-based, so there’s no gas to refill or store. It’s pretty straightforward.
You’re looking at a lead time of roughly 3-4 weeks for a single piece, but we stock the 4000A series intermittently—usually our company have 20 units or so in the warehouse, though confirm inventory before ordering if you need it in under 20 days. The packaging is a plywood crate strapped on a pallet, with the breaker horizontal, terminals bagged, and the instruction manual tucked inside.
Also, the ISO9001 cert covers our entire assembly line, not just this model, so batch consistency is generally tight cycles—give or take a 0.5% variation in breaking time on the electronic trip unit. We don’t test every unit for power consumption, but the spec sheet says 170W nominal, and in practice it runs about 165W under load.
Anyway, it’s a fixed-mount design, so it’s not suited for setups where you need to swap breakers between different locations. Shipping goes out form the main distribution center, and we include the retest form inside the crate if you ever need to send one back for verification.
MOQ is 1 unit for stock items, but if you need a custom voltage rating or special accessories, we typically ask for 5 pieces to start production.
Standard lead time is 15-20 working days after order confirmation. If you need it faster, rush orders can ship in 10 working days with a small surcharge.
Yes, we include CE and CCC certificates with every order. We also have ISO9001 quality docs available if your compliance team needs them.
That 170W is the power consumption at 400V rated current. It'll be slightly different at 690V, but we can give you exact numbers if you specify your working voltage.
Keep it in its original packaging in a dry, clean place with temperature between -5°C and 40°C. Avoid dust and humidity, and it'll stay good for up to 2 years.
