We’re ordering the TR-STP65V for the upcoming city road projects, specifically because it handles both flat and convex lines off teh same screed setup, which cuts down changeover time. It’s got a 65L paint tank and a 14L glass bead bin, so for most day stretches you’re not refilling constantly.

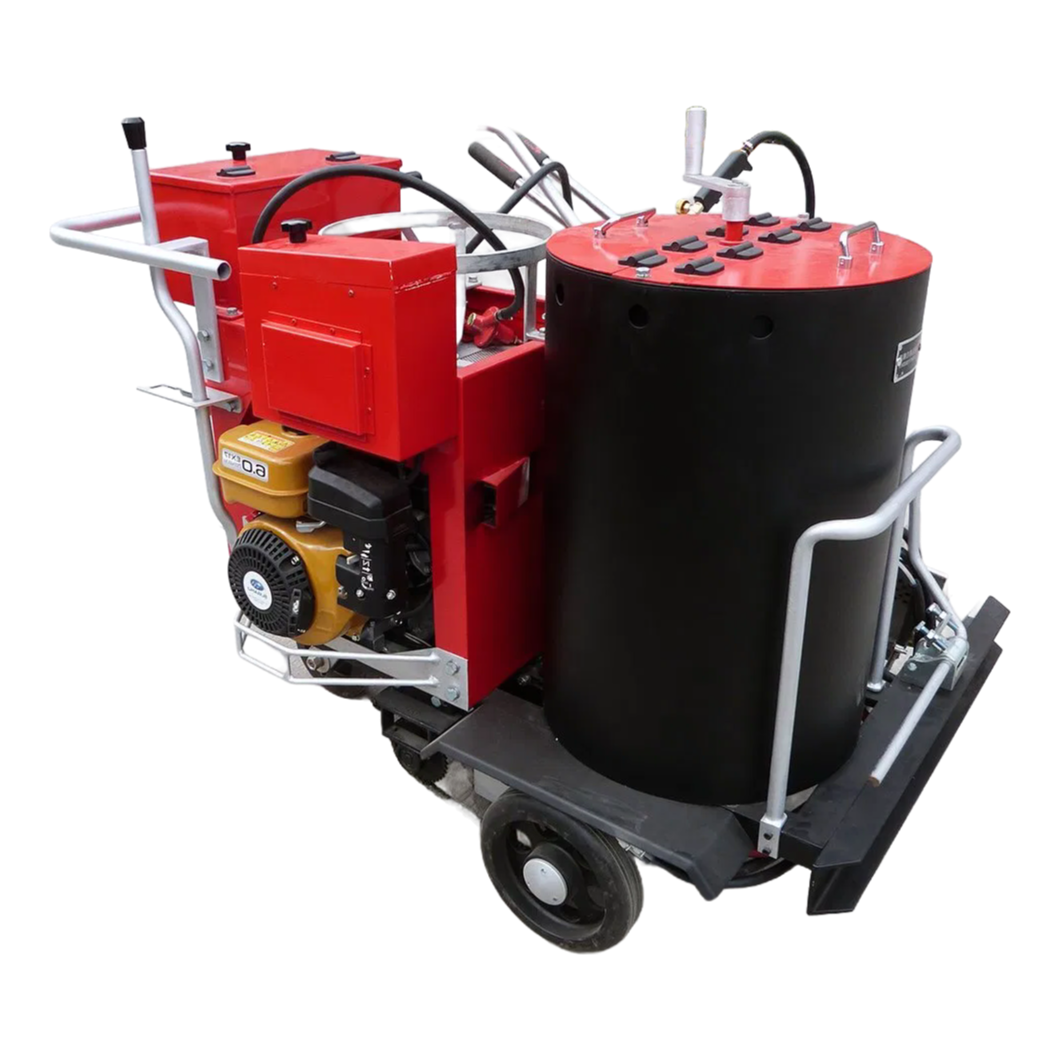

The 6.0HP Honda engine is pretty standdard across these units, and it drives hydraulic transmission for the forward/reverse speeds—0-4km/h forward, 0-3.2km/h reverse, which is fine for this class. Marking width can go from 100-300mm, though we’ll probably stick with 150mm for highways and 200mm for parking lots.
One thing I didn’t expect is the climbing ability tops out at 15 degrees, so you can’t take it on steep overpass grades—something to flag with the site team. Most comparable units here are in the 10-12 degree range, so it’s actually better than average for urban roads and flat lots.
The digital display lets you switch between automatic and manual modes, which basically means you can pre-set line patterns for convex vibration stripes (5-7mm thick) without fiddling mid-application. Flat lines run at 1.2-3.0mm, depending on how aggressive the wear layer needs to be—typically we aim for 2mm on secondary roads.
We’ve got the ISO9001 cert on file from suplier, and the anti-corrosion coating is a welcome detail for storage in humid yards (usually holds up 2-3 seasons before needing touch-up). They sent COAs with the test unit last month showing the tungsten alloy bottom knife retained edge after 50 hours of screed work.
Lead time quoted is roughly 20 working days or so, but the MOQ is just one unit, so we’re ordering now to hit the next pavement window. Weight is 260kg dry, so you’ll need at least two people and a truck lift gate—hand truck alone won’t cut it.
Yes, the marking width is customizable. Just let us know your specific requirement, and we can adjust the screed to fit widths outside the standard 100-300mm range.
Lead time is usually around 15-20 working days after order confirmation, depending on current production load. We can give you a more precise timeline when you place the order.
Yes, we include the ISO9001 certification documents with the machine. You'll get a copy of our certificate along with the packing list and other shipping docs.
The control system has a digital display with automatic and manual modes. You select the line type on the panel, and the screed adjusts accordingly for 1.2-3.0mm flat or 5-7mm convex thickness.
Store it in a dry, covered area away from moisture. The high-grade anti-corrosion coating helps, but it's best to clean the paint tank and glass bead bin thoroughly before long-term storage.
