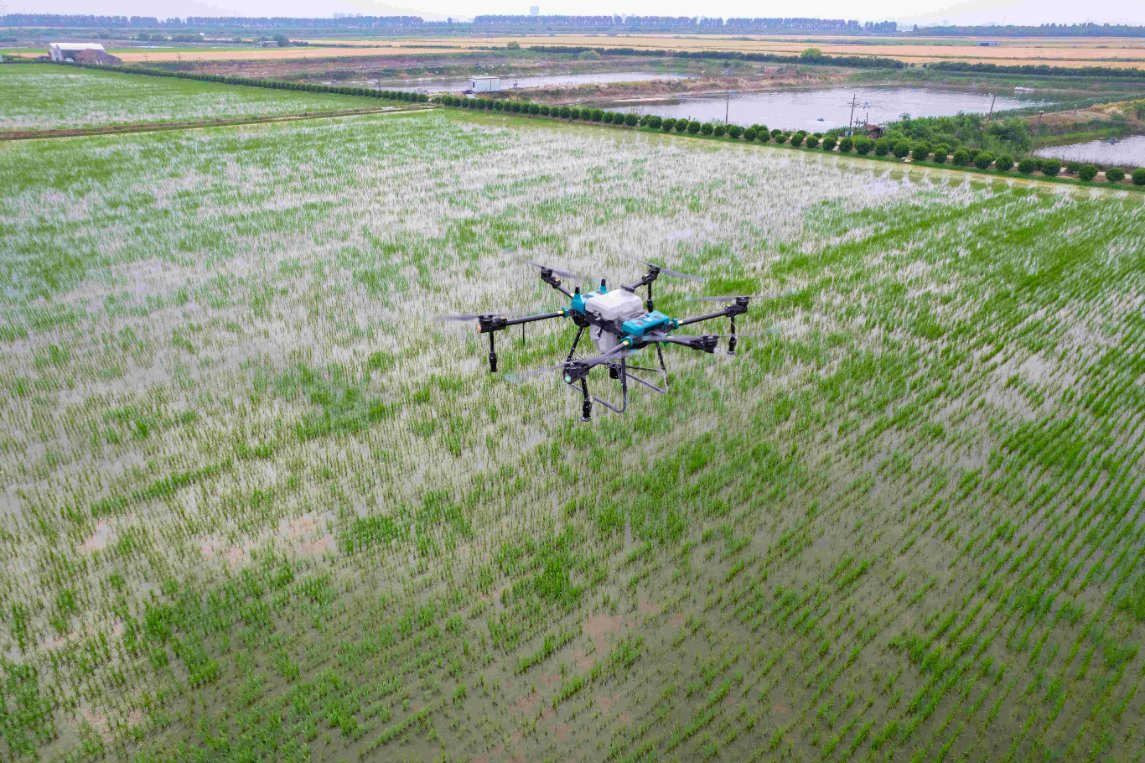

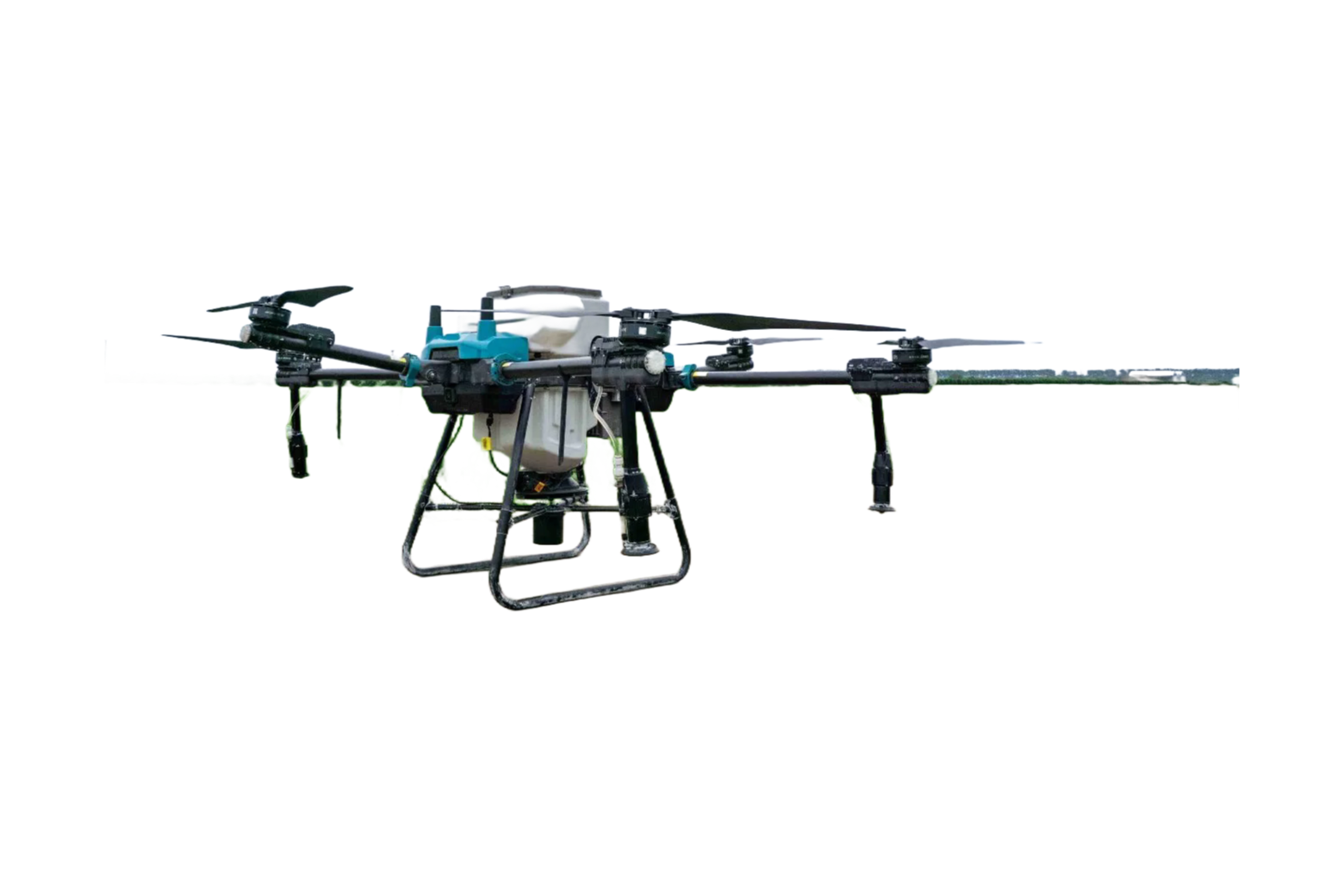

The JT40 agricultural drone is a high-performance solution for modern farming operations. This advanced UAV system combines powerful spraying capabilities with efficient spreading technology to cover large agricultural areas effectively.

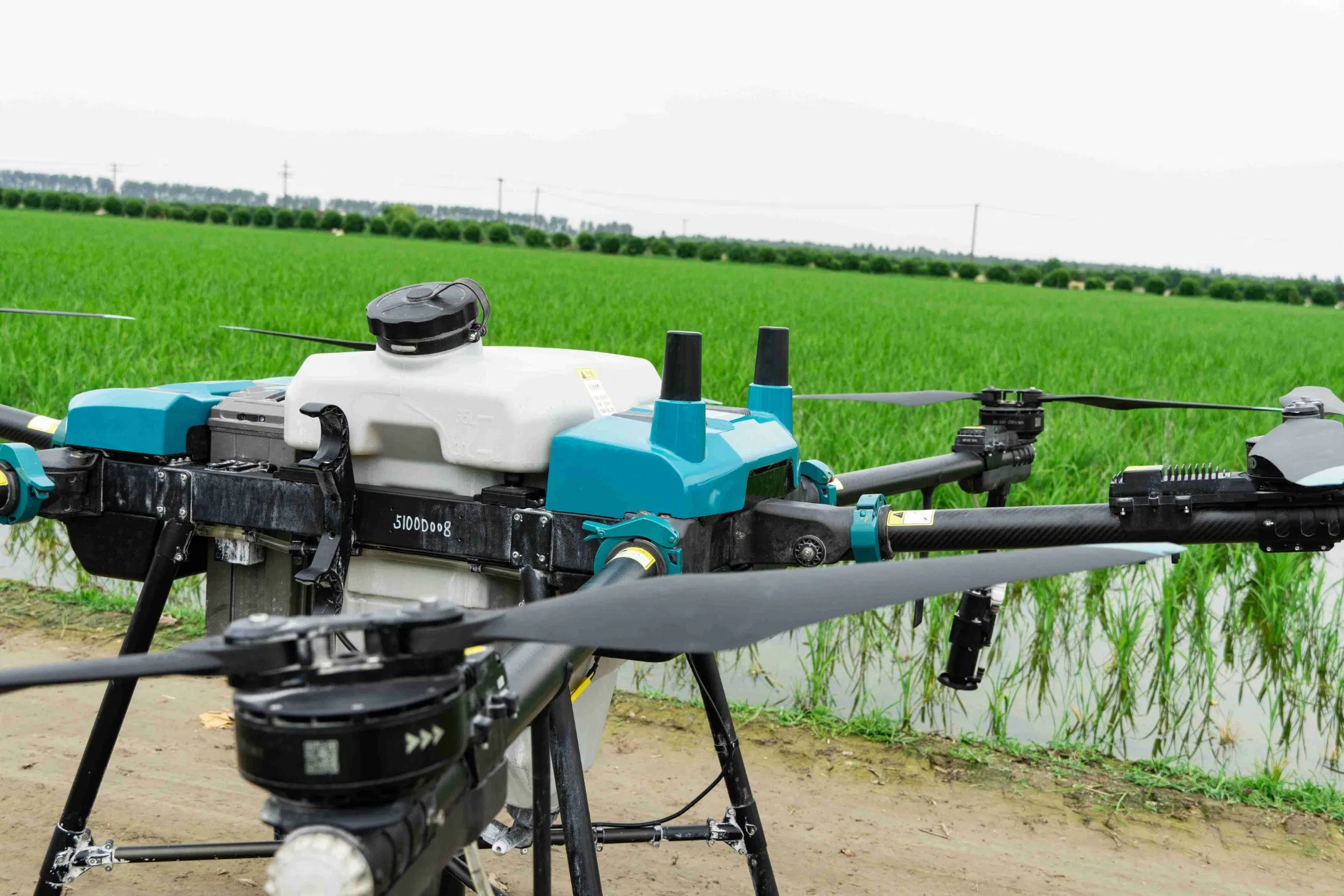

The spray system features a 40L medicine tank made from durable LLDPE material, equipped with 12 high-pressure fan nozzles that deliver optimal coverage up to 12 meters wide. The atomization system produces fine particles between 100-300μm for efficient crop protection.
For spreading applications, the JT40 includes a 50L capacity box capable of handling dry solid particles from 0.5-6mm in diameter. The spreading system operates at up to 1100r/min, achieving a distribution width of 7-9 meters for various agricultural materials.

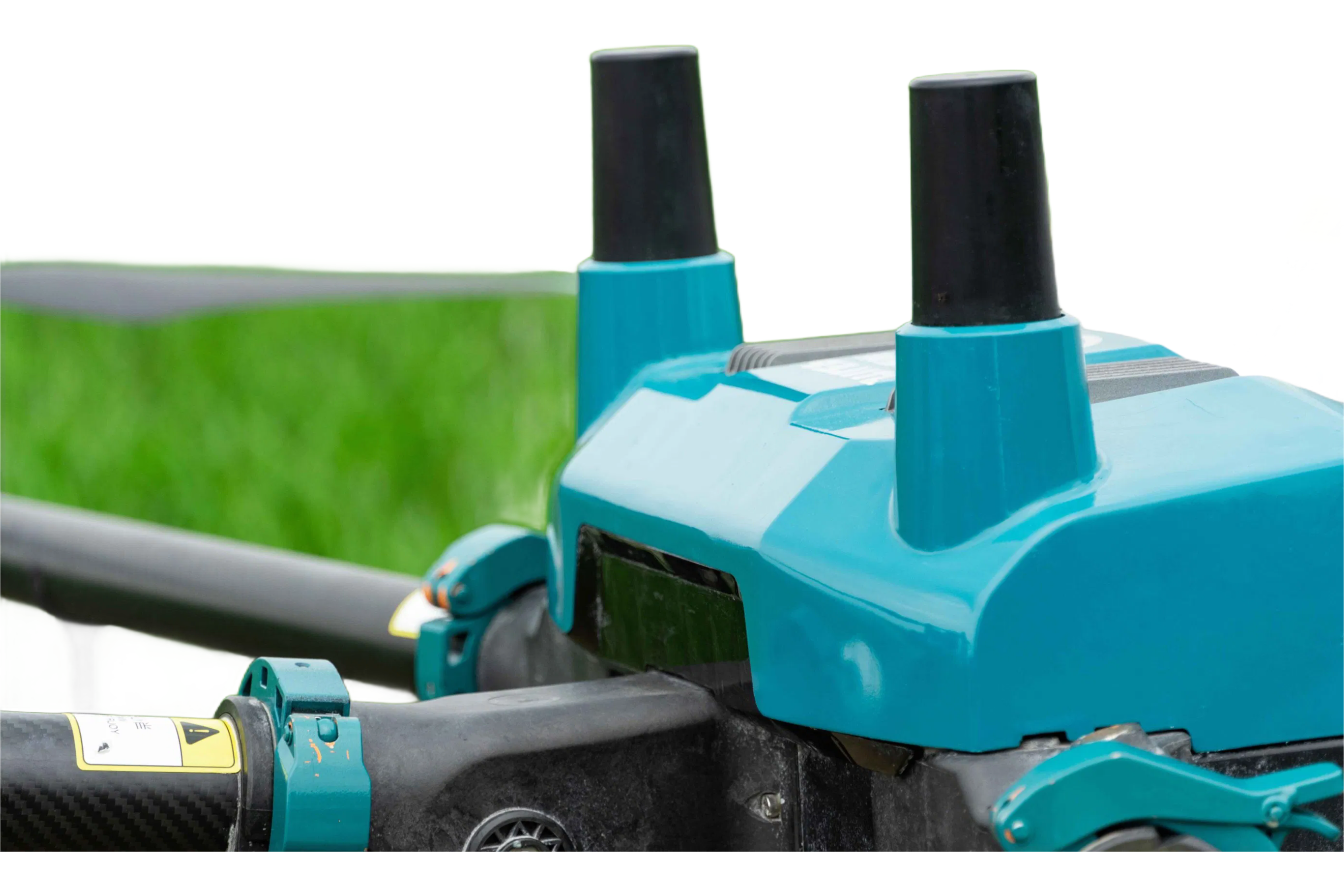

The smart battery system features 18 series cells with 240A maximum discharge current, while the integrated GNSS positioning and IMU systems provide precise navigation and flight control. The 5.5-inch touch remote offers real-time monitoring and flight planning capabilities.
Additional features include a portable mobile base station with 3KM transmission range, 360° radar obstacle avoidance, and a powerful 8.5KW gasoline generator that maintains performance up to 1500 meters altitude. The system's avionics module integrates multiple sensors for stable flight performance in various agricultural conditions.
