Wide Range Crop Sprayer Machine 3WP-1200 with 0.2-0.5MPa Pressure and Anti-Drip System

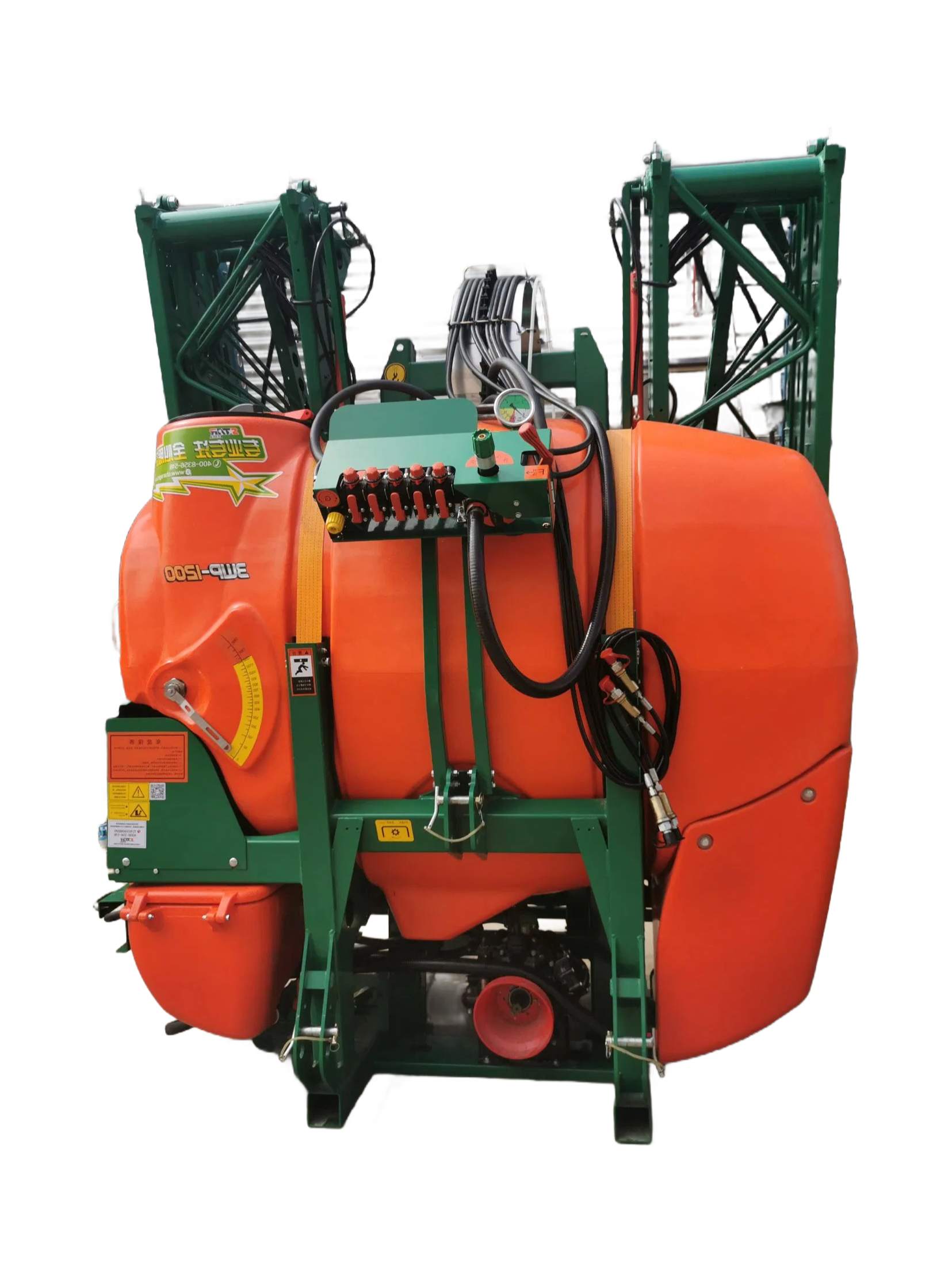

The 3WP-1200 spray machine is a high-performance agricultural implement designed for efficient large-scale crop protection. This trifilar suspension type sprayer features an innovative automatic folding spray rod system that extends up to 24 meters, providing exceptional coverage for field applications.

With its tractor-powered operation, the 3WP-1200 offers remarkable mobility and ease of use. The machine delivers superior spraying performance with excellent atomization effects and uniform distribution, making it ideal for extensive low-crop spraying operations. The compact folded dimensions of 2150×2370×2900mm ensure convenient transportation between fields.

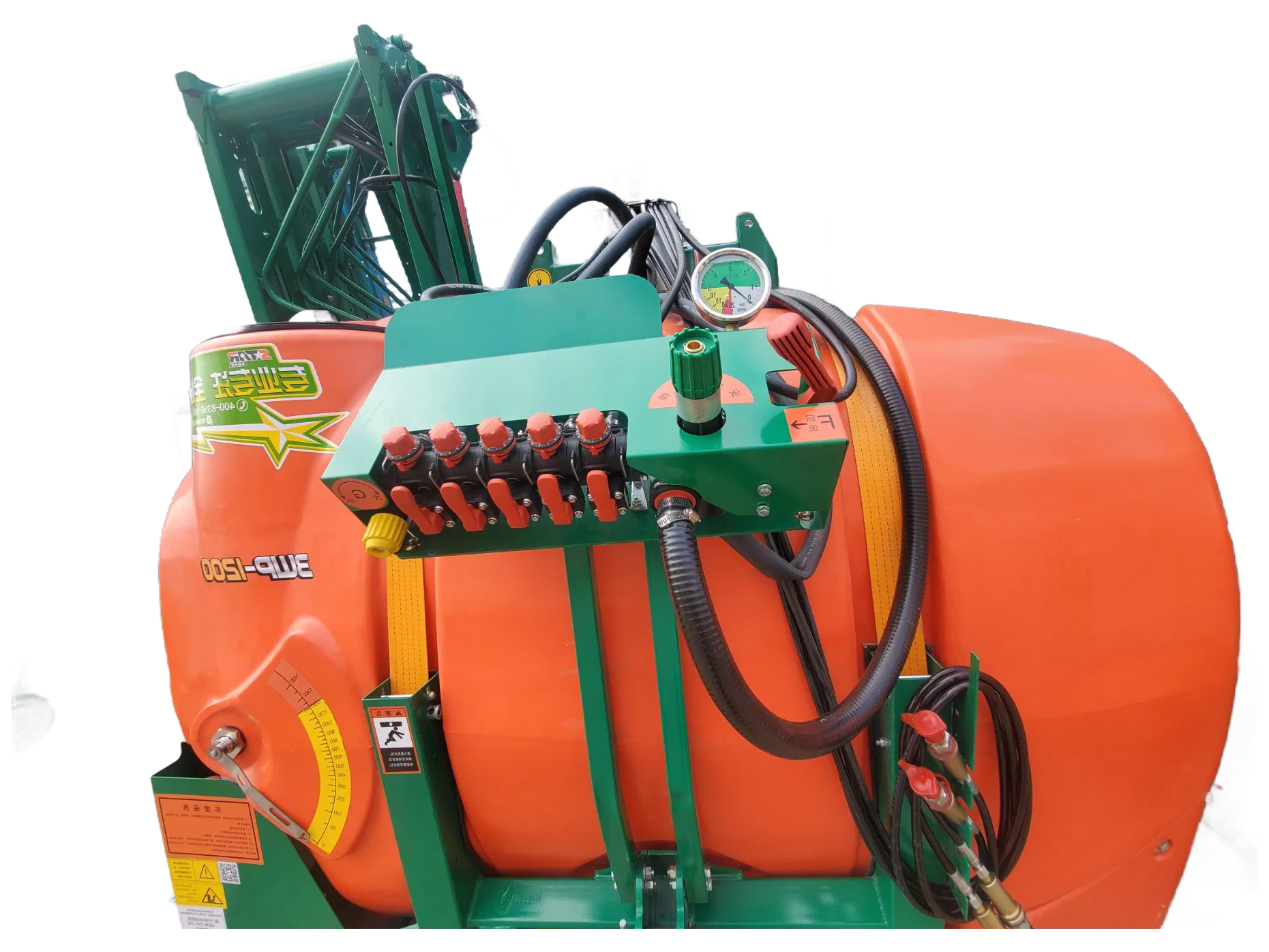

The sprayer incorporates multiple advanced systems including: Venturi-type stirring for consistent pesticide concentration, independent cleaning devices for tanks and bottles, precise pressure regulation, section control, multi-stage filtration, and anti-drip technology. These features work together to optimize spraying effectiveness while reducing chemical usage and environmental impact.

Key operational advantages include the proprietary hydraulic control system that enables one-touch operation from the cockpit. The spray boom unfolds sequentially from inside out and folds from outside in, with synchronized locking mechanisms that maintain stability during operation. The self-balancing system ensures the spray rod's center of gravity aligns perfectly with the axis, minimizing vibration effects.

Safety features include the innovative end protection technology that allows the boom tips to automatically retract upon obstacle contact, preventing damage while maintaining spraying continuity. The robust construction with 1160kg weight and 75-132.3kW power requirement ensures durability for demanding agricultural applications.

This professional-grade spray equipment is particularly suitable for large-scale farming operations requiring efficient, uniform pesticide application. The 1200L medicine tank capacity and 0.2-0.5MPa operating pressure range allow for flexible adjustment according to specific crop protection needs.
