The heat load is the real issue with these 2940nm systems, and we’ve actually put most of our engineering into the air cooling — it runs quieter than you’d expect for a 15kg box, and it keeps the crystal stable through a full day of fractional passes.
Most clinics are using it for scar revision and photo damage correction, though we see a fair number of buyers pushing it hard for melasma with the low-fluence fractional mode. 2-13mJ per MTZ on the 10x10mm head gives you a lot of control, but the beam expander mode at 150-800mJ is better suited for deeper ablation when you need it.

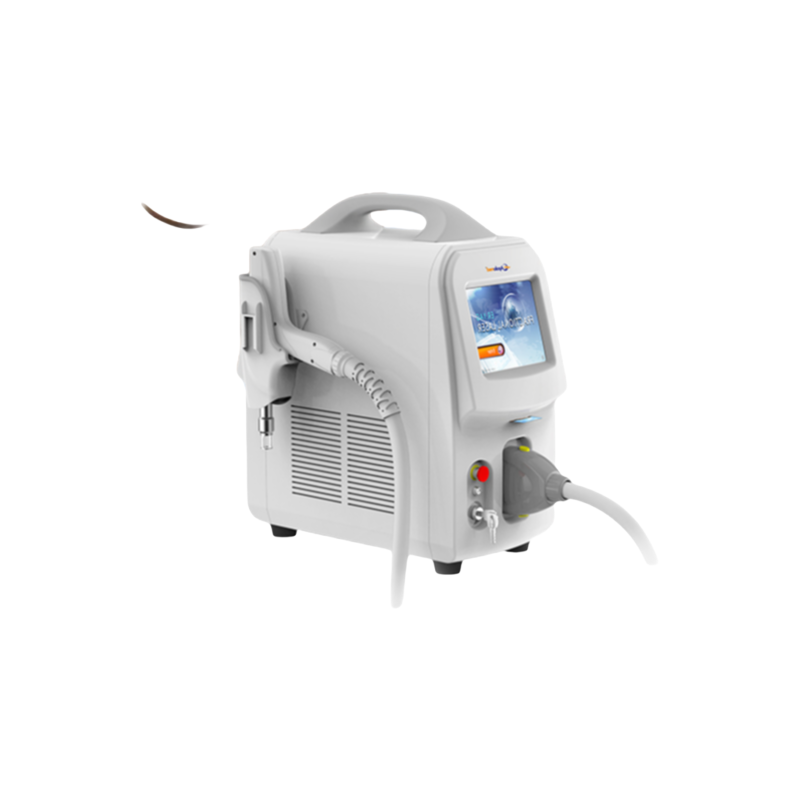

You’re looking at 55x26x58cm roughly, so it fits on a standdard cart without dominating the room. The 8-inch touch screen runs on a Linux-based OS — it’s pretty much plug-and-play once you’ve set the repetition rate (1-6Hz adjustable) and the 300μs pulse width. We usually have stock, but confirm lead time if you need more than 5 units; teh fractional handpiece assembly takes about 20 days or so to replenish.
Buyers often ask about the CE0197 and ISO13485 certs before they ask about the energy range, which tells you something about the market, we supply bulk pricing at 10+ units typically, and we’ll include the COA with each system — the 52-pixel fractional pattern is actually tighter than most competitors’ for that 10x10mm spot size.
One thing we don’t recommend this for is heavy-duty tattoo removal — the 300μs pulse width is too short for that applicaion, and you’ll get better results with a Q-switched setup. Also, the air cooling system means you can’t run it in a sealed cabinet without proper ventilation; it’s fine for open clinic bays.
Anyway, the 5-unit MOQ gets you the best per-unit price, and we can usually ship within 2-3 weeks for that quantty.
We typically start at 1 unit for trial orders. Once you're ready to scale, we can discuss volume discounts for orders of 3 or more units.
Standard lead time is 7–15 working days, depending on stock levels. If we need to manufacture, it could take up to 20 days. We'll confirm the exact timeline once your order is placed.
Yes, absolutely. Both CE0197 and ISO13485 certificates are available upon request. We'll include them with the shipment or email them to you beforehand if needed.
That's the energy per micro-thermal zone (MTZ) in fractional mode. You can adjust it from 2 to 13mJ per MTZ, which lets you control the depth and intensity for different skin concerns like scars or wrinkles.

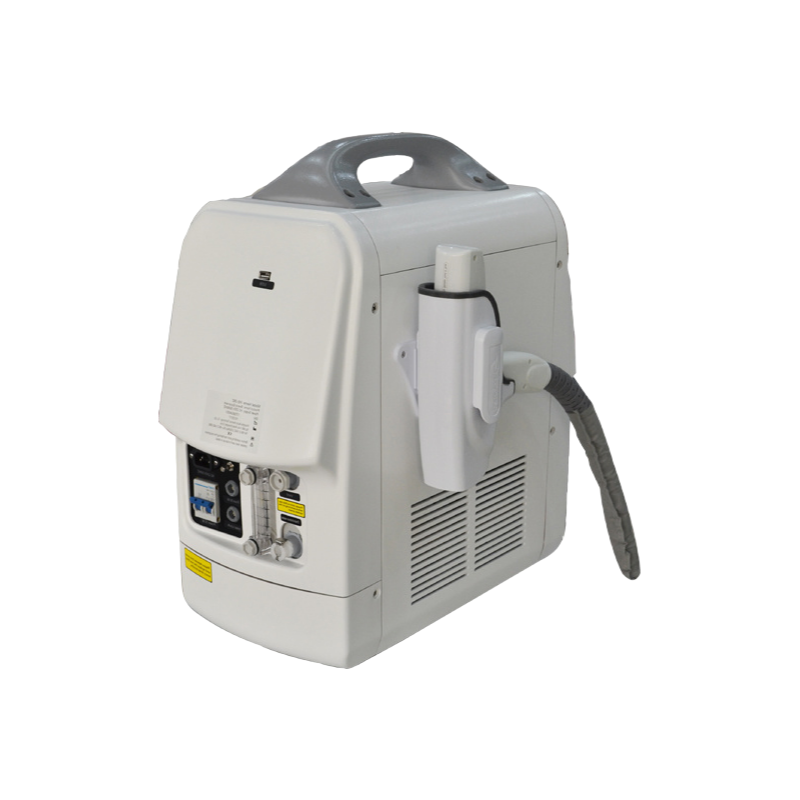

It uses internal fans to actively cool the laser source during operation, preventing overheating. This keeps the HS-282 running consistently without needing water or chiller units, making it simpler for clinic use.
