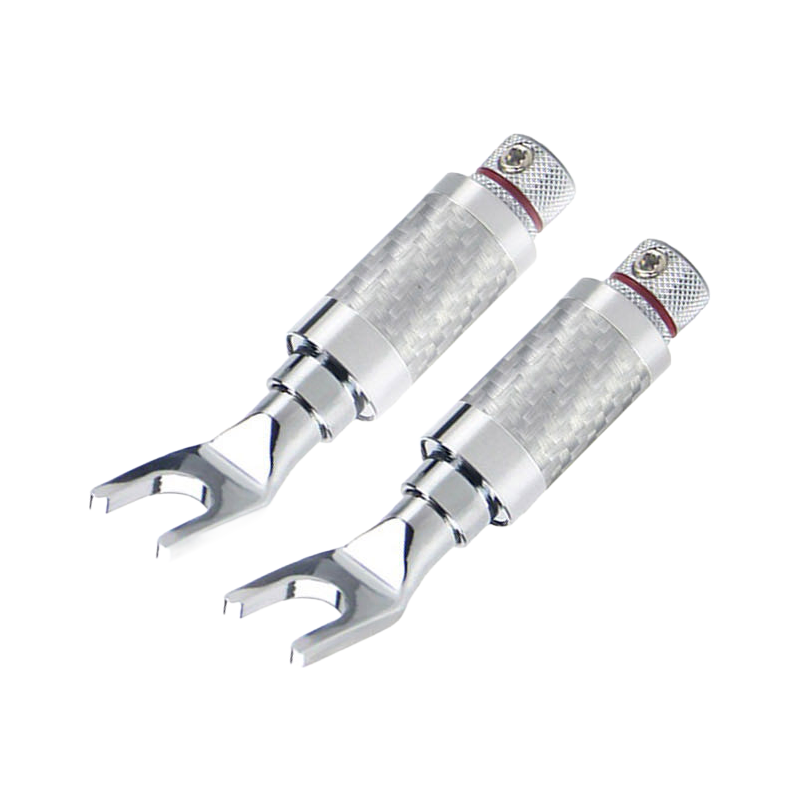

We've got a client who keeps swapping speakers in and out for A/B testing, and those cheap connectors kept snapping or oxidizing within weeks—this HH1315 model, with its carbon fiber reinforced shell, pretty much solved that overnight.
The contacts are rhodium-plated over 24K gold on brass, which gives you that <5mΩ contact resistnce without the tarnishing you'd see with standard gold alone, and the insulation resistance sits above 1000MΩ—dielectric strength is 1000V AC for a minute, so it's not just for low-voltge gear.
It handles up to 15A at 250V AC, so it's fine for most Hi-Fi amps and even some pro rack setups, but don't push it into high-current PA systems where you'd need a larger spade—teh screw-type terminal is solid for 12-14 AWG wire, though you'll want to check the lead time (usually 2-4 weeks) if you're ordering over 100 units.
MOQ is 50 pieces, and we get COAs with every batch—just confirm plating thickness if you're running a critical install.
Rhodium plating is harder and more wear-resistant than gold, so it holds up better to repeated plugging and unplugging. It also provides a more durable, low-resistance surface that maintains signal integrity over time.
Yes, we can accommodate custom packaging and labeling for bulk orders, but minimum order quantities apply. Contact us with your specific requirements, and we'll work out the details.
Standard lead time is 7-15 business days for orders up to 1,000 units. Larger quantities may require 20-30 days depending on production schedule and material availability.
Absolutely, we can share both CE and RoHS compliance certificates upon request. Just ask your sales representative, and they'll send them over.
The carbon fiber reinforcement adds structural rigidity and helps reduce vibration, which can improve sound clarity in high-end systems. It's not just for looks—it actually enhances durability and signal stability.
