Factory Direct OEM/ODM AZ5315 Long-Range FPV Drone Brushless Motor, 420KV, MOQ 50 Units, Free Sample

We've been shipping these to the US and EU for about two years now, and most buyers go with the 10mg—actually, it's teh 420KV rating that seems to stick for long-range FPV builds. Import docs are pretty straightforward, we include COA and packing list with every order, but customs clearance is your end, obviously.

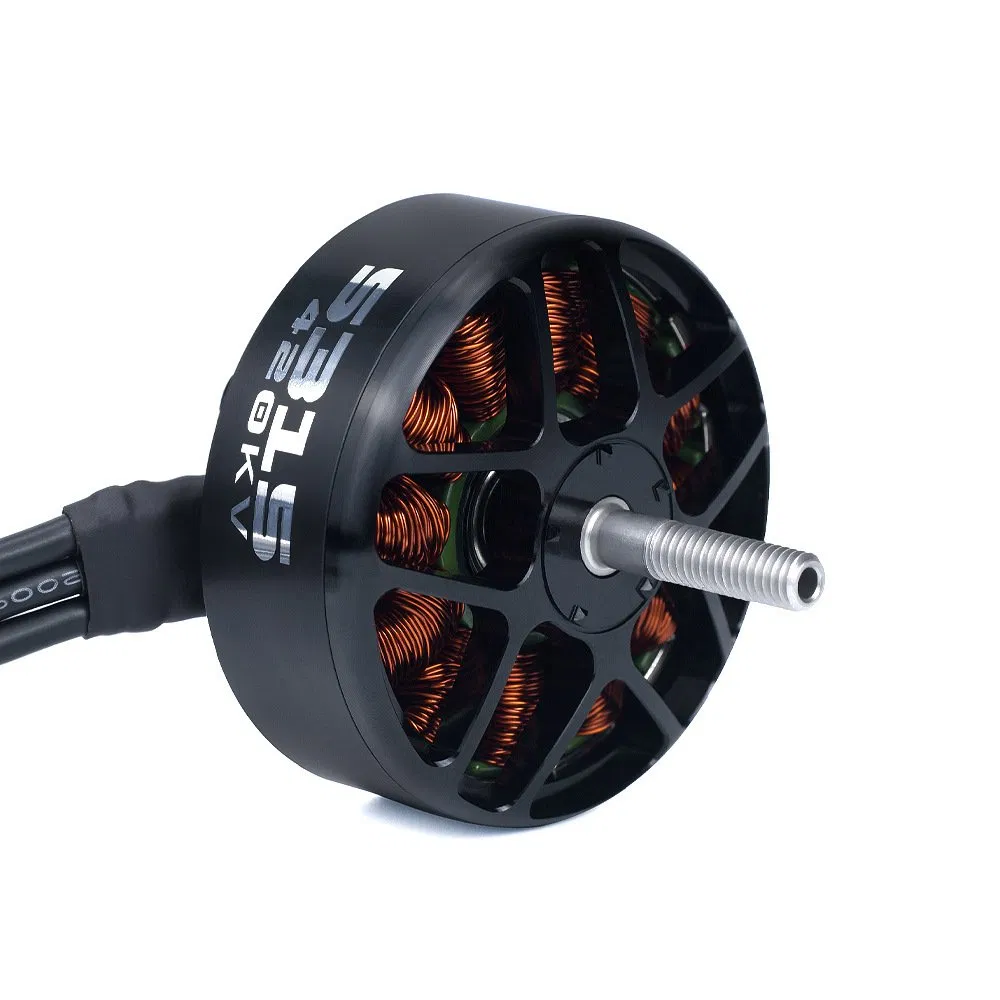

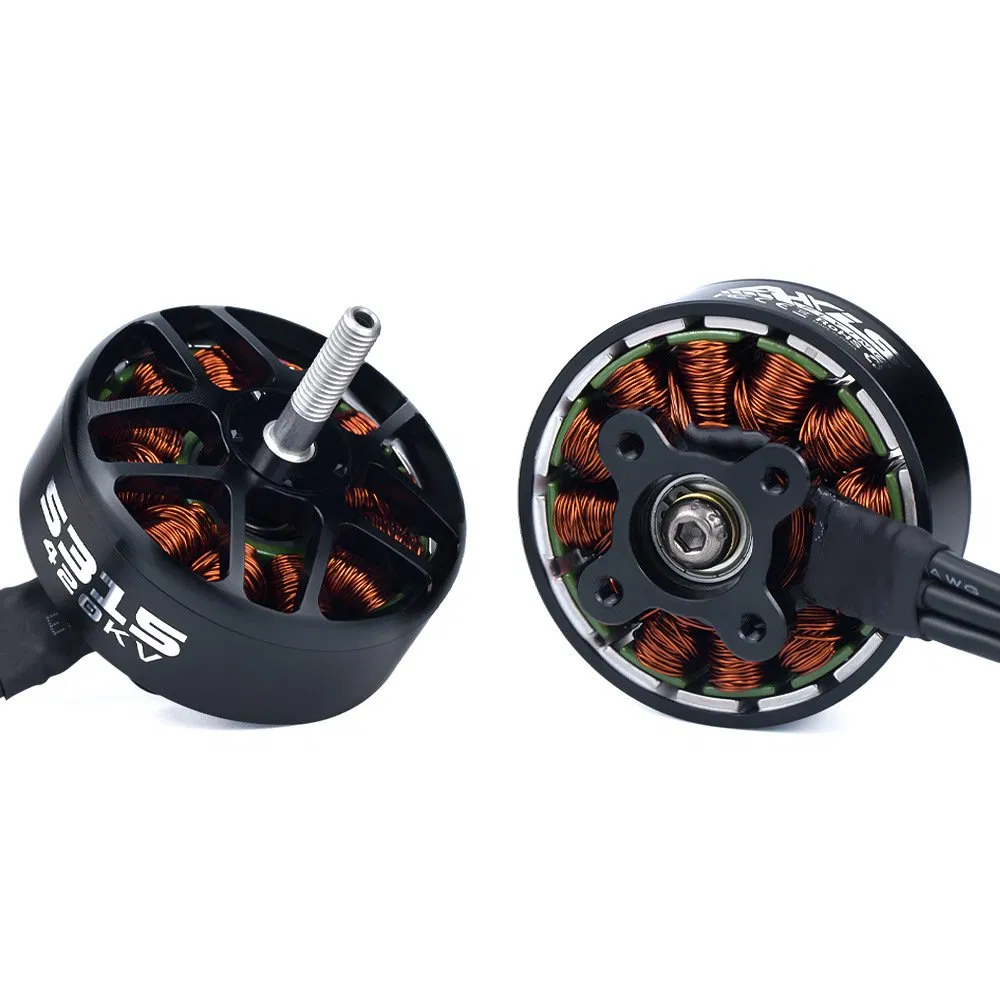

It's a 61.5 by 64 millimeter motor, weighs 310 grams, with a 6.0mm shaft and 13-gauge silicone wires that are 150mm long, and under 6 to 8S votage it hits peak power around 1673 watts—current maxes out at 71.10 amps, which is fine for most heavy-lift setups. The 12N14P slot pole structure keeps rotation smooth, basically no jitter even at low RPM, and no-load current sits at 1.80A, internal resisance around 20 milliohms.

You'll see these on agricultural drones and surveying equipement, but they're not great for racing frames—too heavy at 310g, and the 420KV is too low for that. Maximum tensile force is 6679g, so it's fine for lifting a payload of 2kg or so, but don't push it past 3kg sustained or you'll cook windings.

Also, we usually have stock of about 1200 units or so, lead time is 7 to 12 working days for bulk orders, and MOQ is 50 units—but for first-time buyers our company can do a 30-unit test run to lower entry cost. Free sample is avaliable if you cover shipping, just ask.
