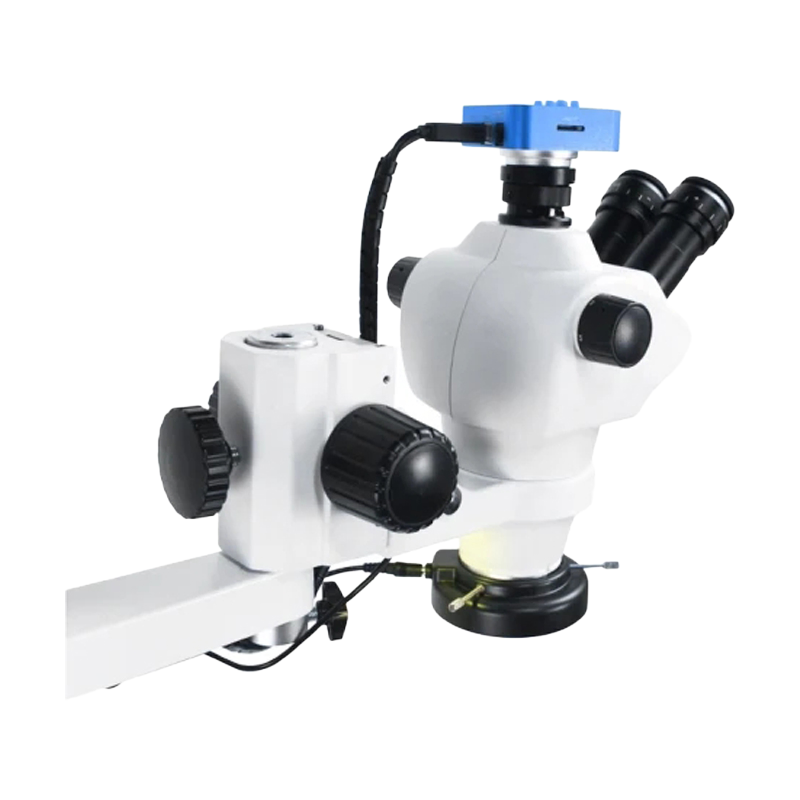

We needed a solid surgical scope for teh new oral surgery suite, and this one with 2.5X to 25X magnification and metal construction checks the boxes without overcomplicating things—the 10X eyepieces and F=250mm objective give a usable working distance for most procedures.
Field of view runs form 8 to 80mm, so you can pull back for overview or zoom tight on a single root tip, and the LED illumination hits over 45,000 lux with a 90mm spot diameter which is actually brighter than some floor units we've used.

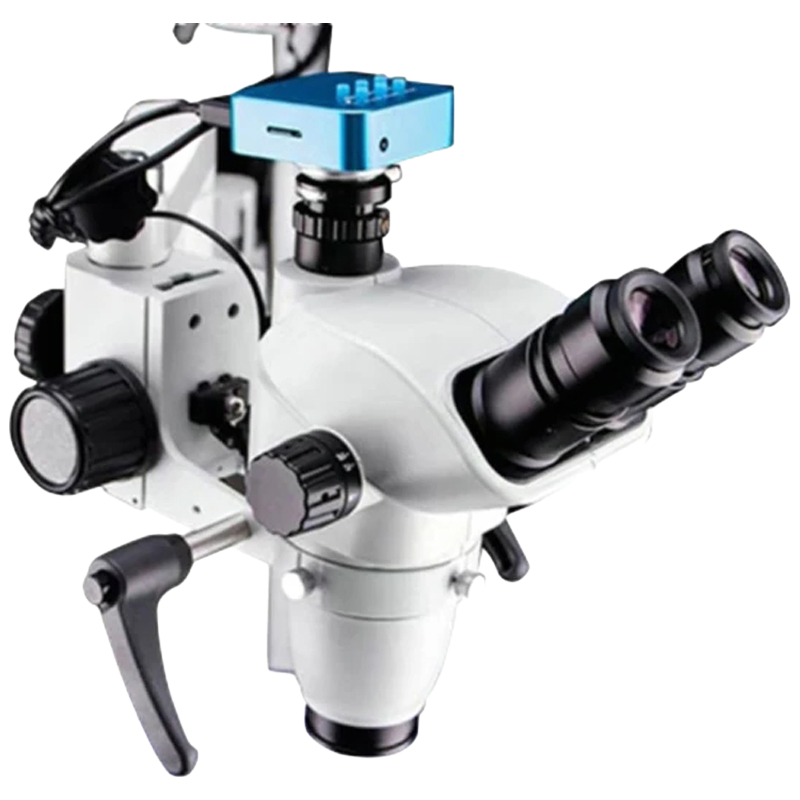

It ships with its own camera built out, not integrated, meaning you can swap monocular heads or service it without sending the whole scope back, and HDMI/USB ports let us pipe straight to a monitor or intraoral camera we've already got in the room.

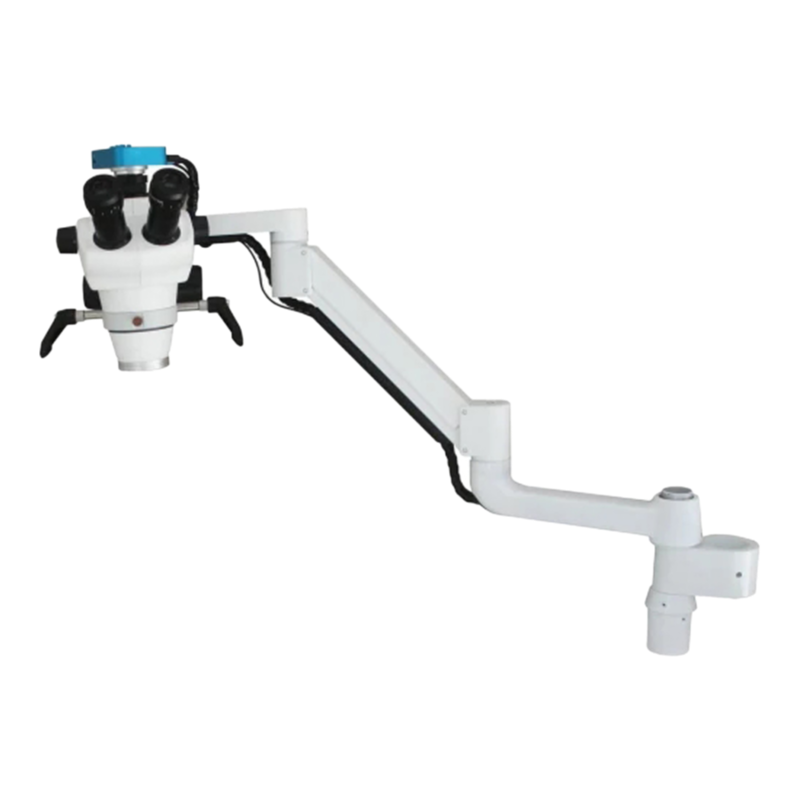

Pupil distance adjusts from 55 to 80mm and diopter goes ±7D, so pretty much any operator can dial it in without squinting, though the 3-part arm is a bit chunky for tight spaces—we usually mount it on a cart, not a ceiling rail.
Basically, this isn't what you'd pick for implant-level microsurgery at 25X since the field narrows fast, but for general endo and restorative work at 8X or so the clarity holds fine, and the 1080P 1920 resolution out of the HDMI port is good enough for recording.
MOQ was ten units on this batch, origin China with CE listed, and we've got a TDS and COA on file—lead time ran about 30 days, but confirm stock before ordering if you need them inside 20 days or so.
Our MOQ for the ADS-OM100 is typically 1 unit, so you can order just one for a trial or single clinic setup. For bulk orders, we can discuss volume discounts.
Standard lead time is around 15-20 working days from order confirmation, depending on stock levels. For urgent orders, we can sometimes expedite—just let us know your deadline.
Yes, it's CE certified, and we'll include the certificate with your shipment. We can also supply any other compliance docs you need for local registration.
We can customize certain features, like the arm configuration or adding specific ports, but the 2.5X-25X magnification range and metal construction are standard. Just tell us what you need, and we'll see what's possible.
The LED provides over 45,000 lux and is built to last around 50,000 hours with minimal heat output. No routine maintenance needed—just keep the lens clean and avoid harsh impacts.
