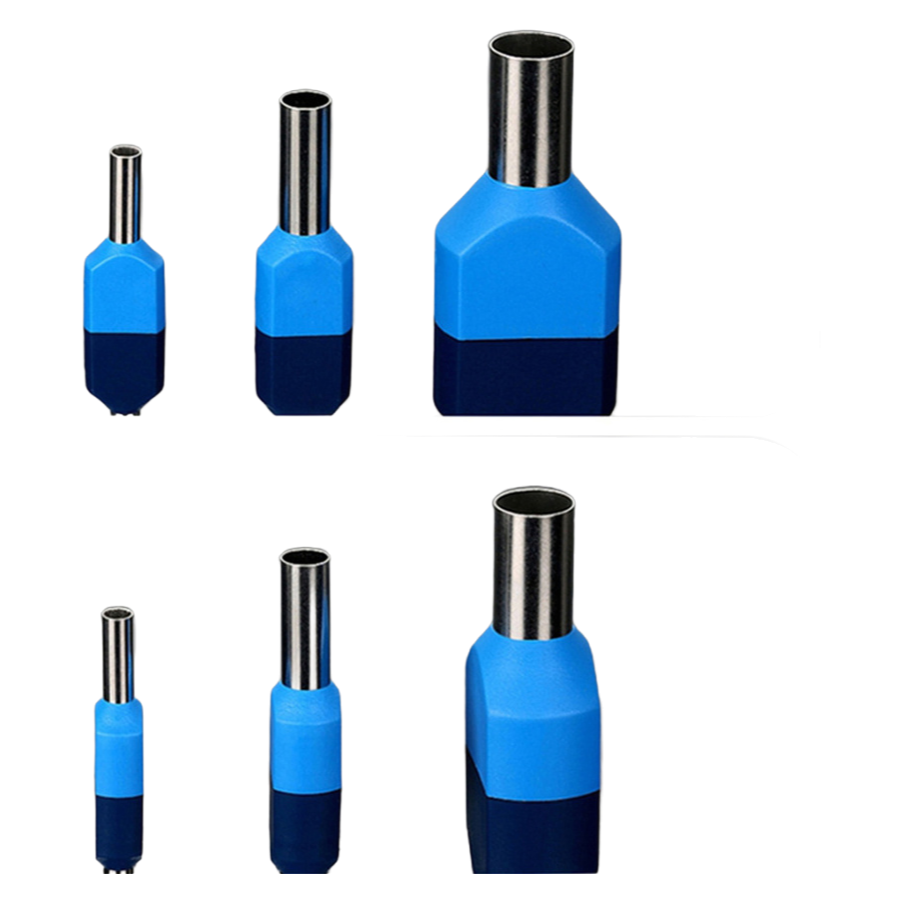

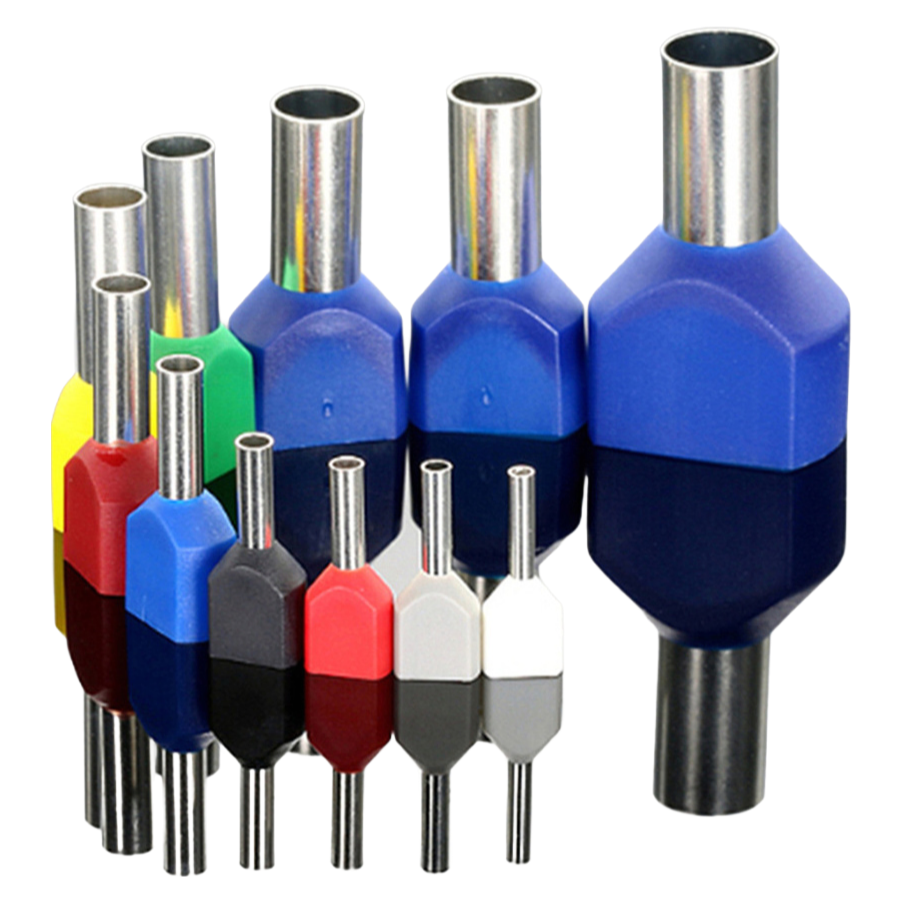

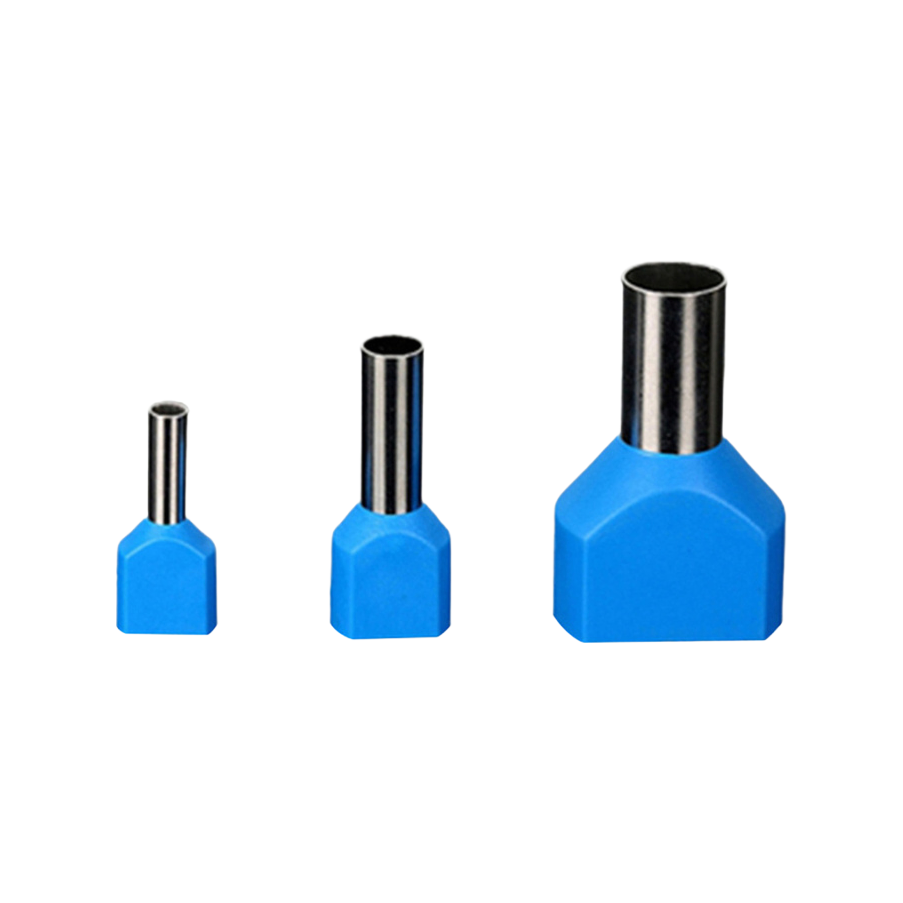

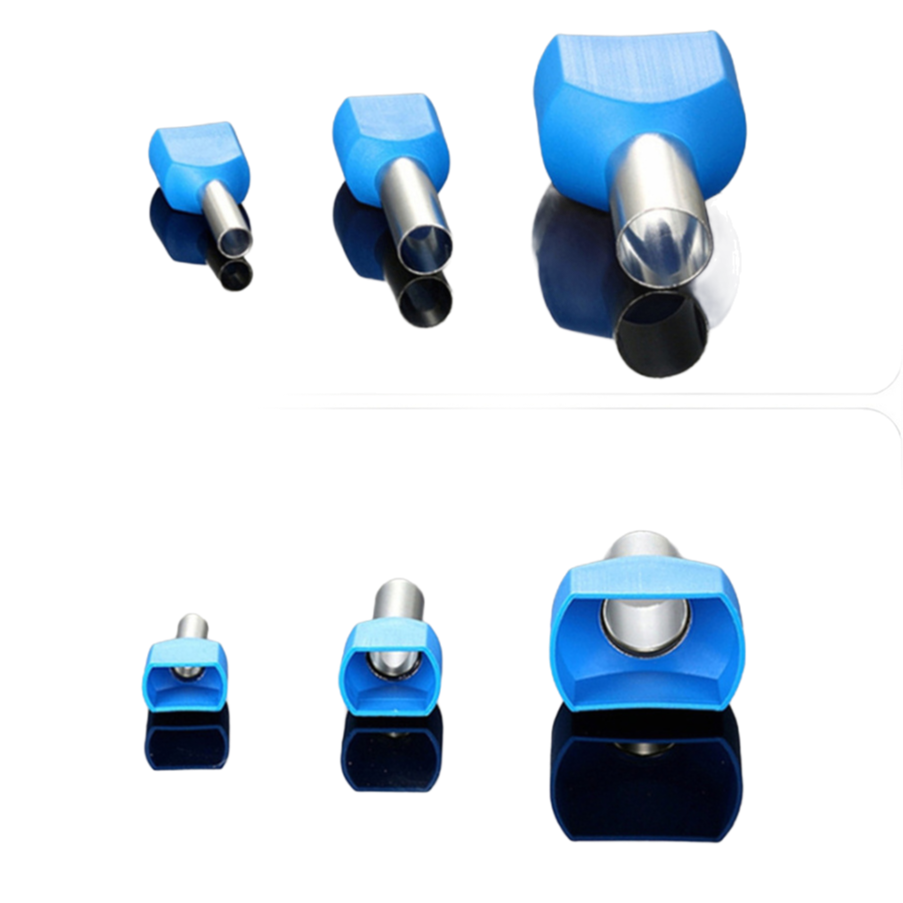

We've been moving these twin cord end terminals for a while now, and the copper core with PP nylon insulation handles up to 150°C and 300V without issue — it's a solid setup for most electrical work. The cable size range runs form 2*0.5 mm² all the way to 2*16.0 mm², so about 22 to 6 AWG, and you can get them in gray, red, blue, green, yellow, or whatever color you actually need.
Basically, these are for wire connecting in power systems or automotive stuff, and teh round shape makes them pretty easy to seat in a terminal block. They're not great for high-frequency signal work — the insulation is more about heat and votage than shielding, so keep that in mind.
Most buyers go with the UL-certified models for compliance, and we accept OEM orders if you need custom colors or packaging. The injection molding on the nylon jacket is consistent, though we usually have stock in common sizes — 2*1.5 mm² and 2*2.5 mm² are the fastest movers.
MOQ is typically 1,000 pieces or so, and our company can provide a COA with each batch if requested. Lead time runs about 20 days for standard orders, but confirm before you schedule anything — sometimes the 16.0 mm² size takes a bit longer.
This model is UL certified, so it meets the safety standards for electrical applications. We can provide the certification documents if your compliance team needs them.
MOQ for standard colors like gray or red is typically 1,000 pieces, but for custom colors, we usually ask for 5,000 pieces to make the color change worth it. We can be flexible on that depending on your volume.
Yes, that's right—the TE1508 fits twin cables from 2*0.5 mm² up to 2*16.0 mm², which covers AWG 22 to 6. So it handles both thin signal wires and thicker power cables.
For stock colors like gray or red, lead time is usually 7 to 10 business days. If we need to produce a custom color, expect 15 to 20 days, depending on the quantity.
Keep them in a cool, dry place away from direct sunlight, ideally below 40°C. Since the PP nylon can degrade under UV light, storing them in their original packaging or a sealed container works best.
